NOTES:

Part #	Number on image	Usage Notes
460-000-234	7	Item 7 Includes items 8,9,10,11 & 12 as Kit. Item 7 Includes items 8,9,10,11 & 12 as Kit.
301-208-253	13	Due to implementation of new universal chassis Items 13-15 has moved to Chassis assembly from outrigger arm from these serial number on wards: NZM: 727-493-400-0089, 727-610-410-0107, 727-610-400-0087, 727-722-410-0029, 727-722-400-0 GBM: 627-493-400-10001509, 627-610-400-10000 Due to implementation of new universal chassis Items 13-15 has moved to Chassis assembly from outrigger arm from these serial number on wards: NZM: 727-493-400-0089, 727-610-410-0107, 727-610-400-0087, 727-722-410-0029, 727-722-400-0 GBM: 627-493-400-10001509, 627-610-400-10000
308-080-016	14	Due to implementation of new universal chassis Items 13-15 has moved to Chassis assembly from outrigger arm from these serial number on wards: NZM: 727-493-400-0089, 727-610-410-0107, 727-610-400-0087, 727-722-410-0029, 727-722-400-0 GBM: 627-493-400-10001509, 627-610-400-10000 Due to implementation of new universal chassis Items 13-15 has moved to Chassis assembly from outrigger arm from these serial number on wards: NZM: 727-493-400-0089, 727-610-410-0107, 727-610-400-0087, 727-722-410-0029, 727-722-400-0 GBM: 627-493-400-10001509, 627-610-400-10000
418-840-300	15	Due to implementation of new universal chassis Items 13-15 has moved to Chassis assembly from outrigger arm from these serial number on wards: NZM: 727-493-400-0089, 727-610-410-0107, 727-610-400-0087, 727-722-410-0029, 727-722-400-0 GBM: 627-493-400-10001509, 627-610-400-10000 Due to implementation of new universal chassis Items 13-15 has moved to Chassis assembly from outrigger arm from these serial number on wards: NZM: 727-493-400-0089, 727-610-410-0107, 727-610-400-0087, 727-722-410-0029, 727-722-400-0 GBM: 627-493-400-10001509, 627-610-400-10000

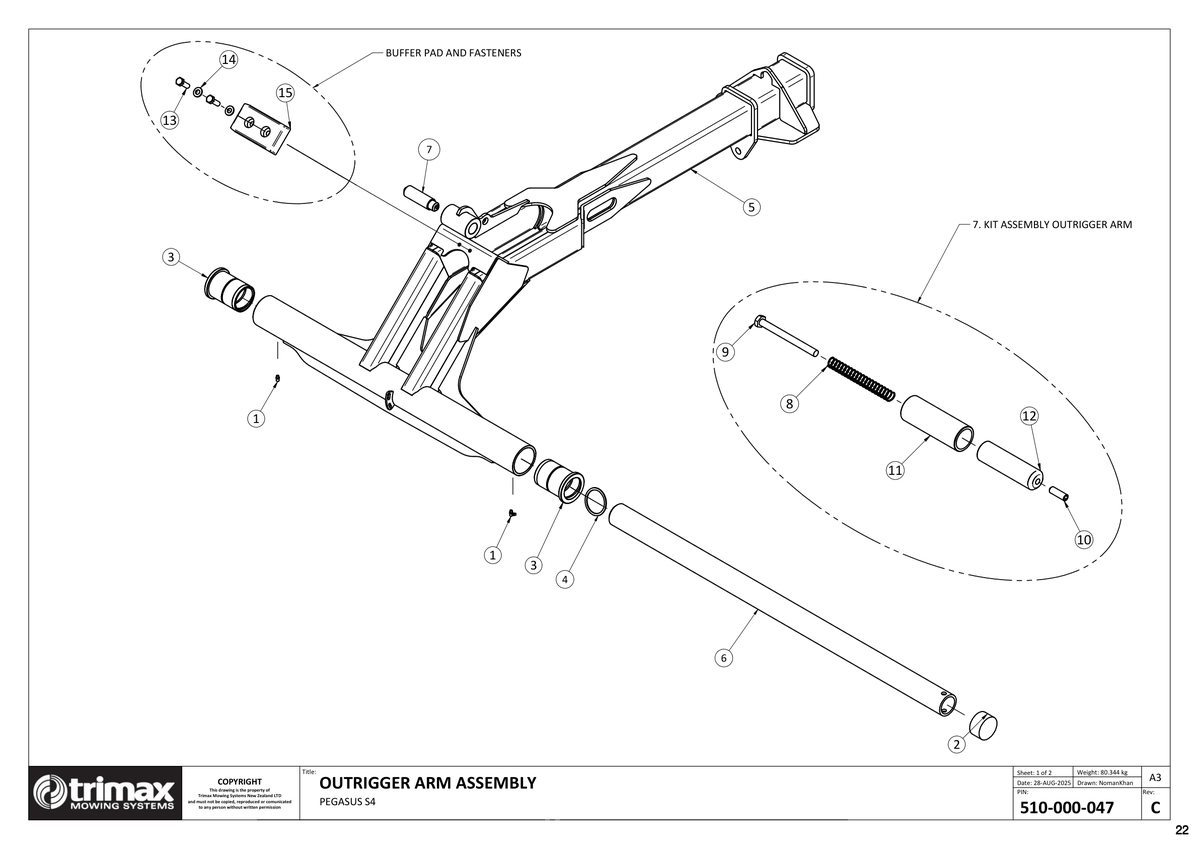

728 - Pegasus S4 - Outrigger Arm - LH & RH

Pegasus S4 493, Pegasus S4 610

Grouped product items
No.	Product Name	Price
1	Grease Nipple - Trimax Specification 208-442-650 More Info >	€2.92
2	Plastic Cap - Round Ø63 x 36 209-840-320 More Info >	€5.90
3	Bush 402-840-260 More Info >	€110.79
4	Shim 418-000-001 More Info >	€24.52
6	Pin - Outrigger Hinge - Side 419-840-210 More Info >	€226.43
7	Kit Assembly - Outrigger Arm - Pegasus i See notes section for usage notes on this part 460-000-234 More Info >	€145.93
8	Spring - Compression 207-840-720 More Info >	€7.05
9	Bolt - Bolt - Hex Head - M8 x 90- Trimax Specification 301-208-906 More Info >	€5.78
10	Grub Screw 312-208-255 More Info >	€0.92
11	Bush 402-840-710 More Info >	€62.35
12	Pin - Transport Lock 419-840-700 More Info >	€77.53
13	Bolt - Hex Head - M8 x 25 - Trimax Specification i See notes section for usage notes on this part 301-208-253 More Info >	€0.74
14	Washer - Flat i See notes section for usage notes on this part 308-080-016 More Info >	€0.37
15	Buffer Pad i See notes section for usage notes on this part 418-840-300 More Info >	€20.47
