NOTES:

Part #	Number on image	Usage Notes
301-216-303	4	Bolt Length Increased, all Macines Prior to: 727-493-400-0036 (painted) 727-610-410-0048 (galv) 727-610-400-0052 (painted) Please ensure bolt has been upgraded Bolt Length Increased, all Macines Prior to: 727-493-400-0036 (painted) 727-610-410-0048 (galv) 727-610-400-0052 (painted) Please ensure bolt has been upgraded

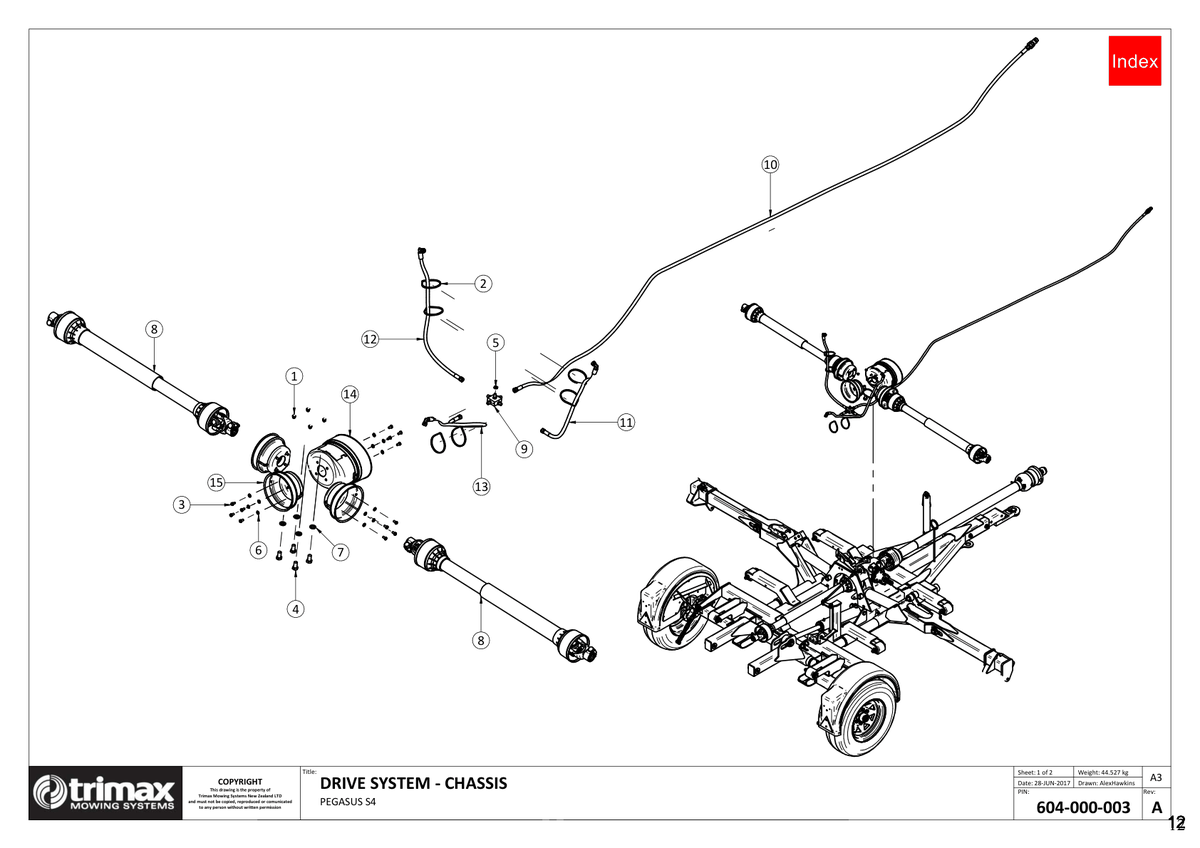

728 - Pegasus S4 - Chassis Drive System

Pegasus S4 493, Pegasus S4 610

Grouped product items
No.	Product Name	Price
1	Blanking Plug 209-900-013 More Info >	€1.10
2	Cable Tie - Black 210-900-011 More Info >	€0.51
3	Bolt - Hex Head - M8 x 16 - Trimax Specification 301-208-163 More Info >	€0.61
4	Bolt - Hex Head - M16 x 30 - Trimax Specification i See notes section for usage notes on this part 301-216-303 More Info >	€2.74
5	Nut - Nyloc 307-210-053 More Info >	€0.61
6	Washer - Flat 308-080-016 More Info >	€0.37
7	Washer - Wedge Lock M16 - Trimax Specification - 308-160-083 More Info >	€3.53
8	PTO Shaft 406-340-590 More Info >	€370.73
9	Junction Assembly - Hydraulic 408-448-500 More Info >	€146.06
10	Hose Assembly - Hydraulic - Tractor 409-000-076 More Info >	€104.90
11	Hose Assembly 409-448-420 More Info >	€78.19
13	Hose Assembly 409-448-430 More Info >	€82.32
14	PTO Cone - Wide angle 410-000-257 More Info >	€42.01
15	Cone - PTO Holes Punched 410-440-402 More Info >	€23.50
