728 - Pegasus S4 610 - Drive System 237 LH - Biloc

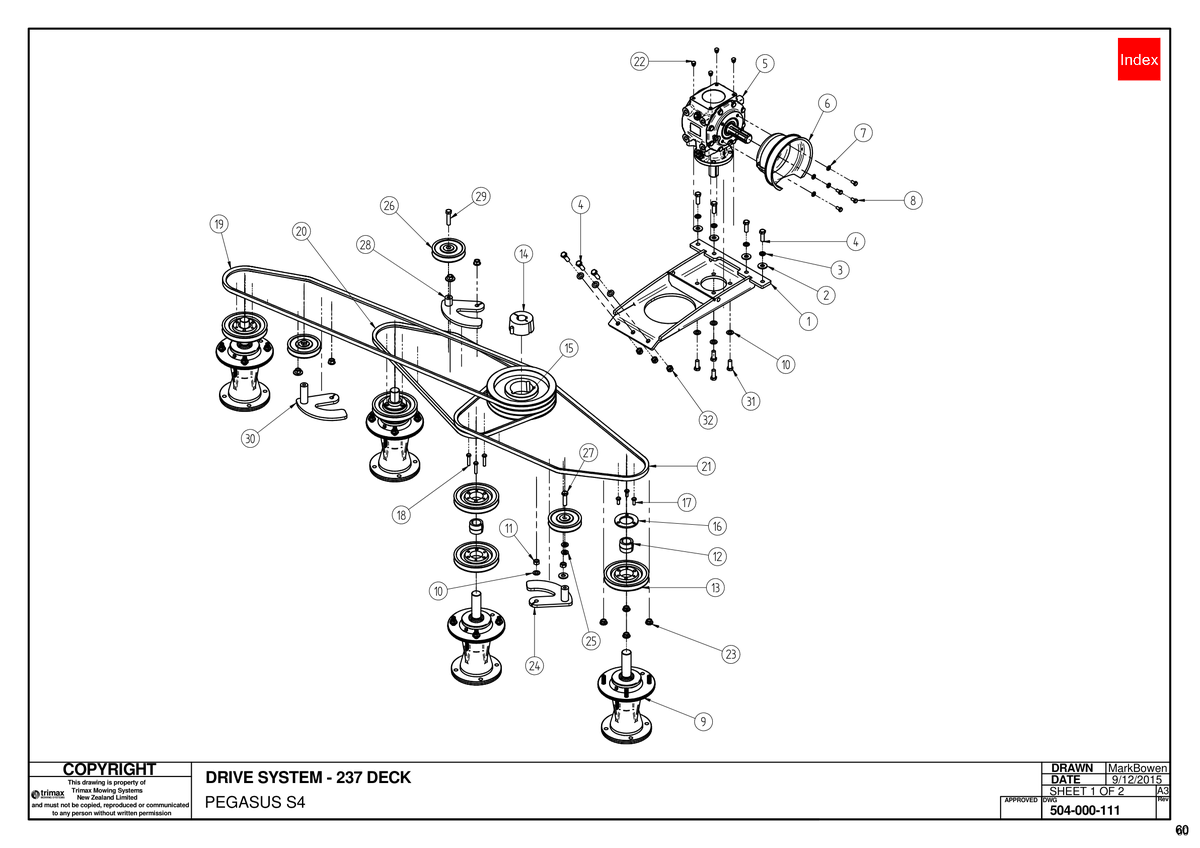

Pegasus S4 610

Grouped product items
No.	Product Name	Price
1	Gearbox Mount Weldment 417-001-197 More Info >	€629.98
2	Washer - Heavy Flat 308-120-063 More Info >	€0.37
3	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	€0.37
4	Bolt - Hex Head - M12 x 35 - Trimax Specification 301-212-353 More Info >	€1.59
5	Gearbox - Standard Rotation - 540rpm 405-200-720 More Info >	€740.95
6	Cone - PTO Shield w/ Cut Out 410-440-401 More Info >	€30.36
7	Washer - Flat 308-080-013 More Info >	€0.37
8	Bolt - Hex Head - M8 x 16 - Trimax Specification 301-208-163 More Info >	€0.61
9	Spindle Assembly - Steadfast 504-000-106 More Info >	Price on Request
10	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	€0.37
11	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	€0.92
12	Bush 402-060-320 More Info >	€23.21
13	Pulley 403-360-300 More Info >	€40.47
14	Bush - Taper Lock 402-060-820 More Info >	€35.71
15	Pulley 403-000-038 More Info >	€200.32
16	Retainer Ring 402-060-450 More Info >	€7.66
17	Set Screw 305-208-203 More Info >	Price on Request
18	Set Screw 305-208-403 More Info >	Price on Request
19	Vee Belt - Trimax Specification 404-041-150 More Info >	€38.13
20	Vee Belt - Trimax Specification - 404-040-750 More Info >	€23.01
22	Blanking Plug - M12 209-900-012 More Info >	€1.04
23	Nut - Flange 450-000-078 More Info >	€2.06
24	Idler Tower Incl Base 403-330-432 More Info >	€45.96
25	Washer - Hardened 108-071-513 More Info >	€1.95
26	Pulley Assembly - Idler 403-360-111 More Info >	€52.33
27	Bolt - Hex Head - M12 x 45 - Trimax Specification 301-212-453 More Info >	€1.89
28	Idler Tower Incl Base 403-330-423 More Info >	€64.28
29	Bolt - Hex Head M12 x 50 - Trimax Specification - 301-212-503 More Info >	€2.00
30	Idler Tower Incl Base 403-330-442 More Info >	€56.95
31	Bolt - Hex Head - M12 x 30 - Trimax Specification 301-212-303 More Info >	€1.46
32	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	€0.61
