NOTES:

Part #	Number on image	Usage Notes
404-320-122	20	Roller Scraper available as an option

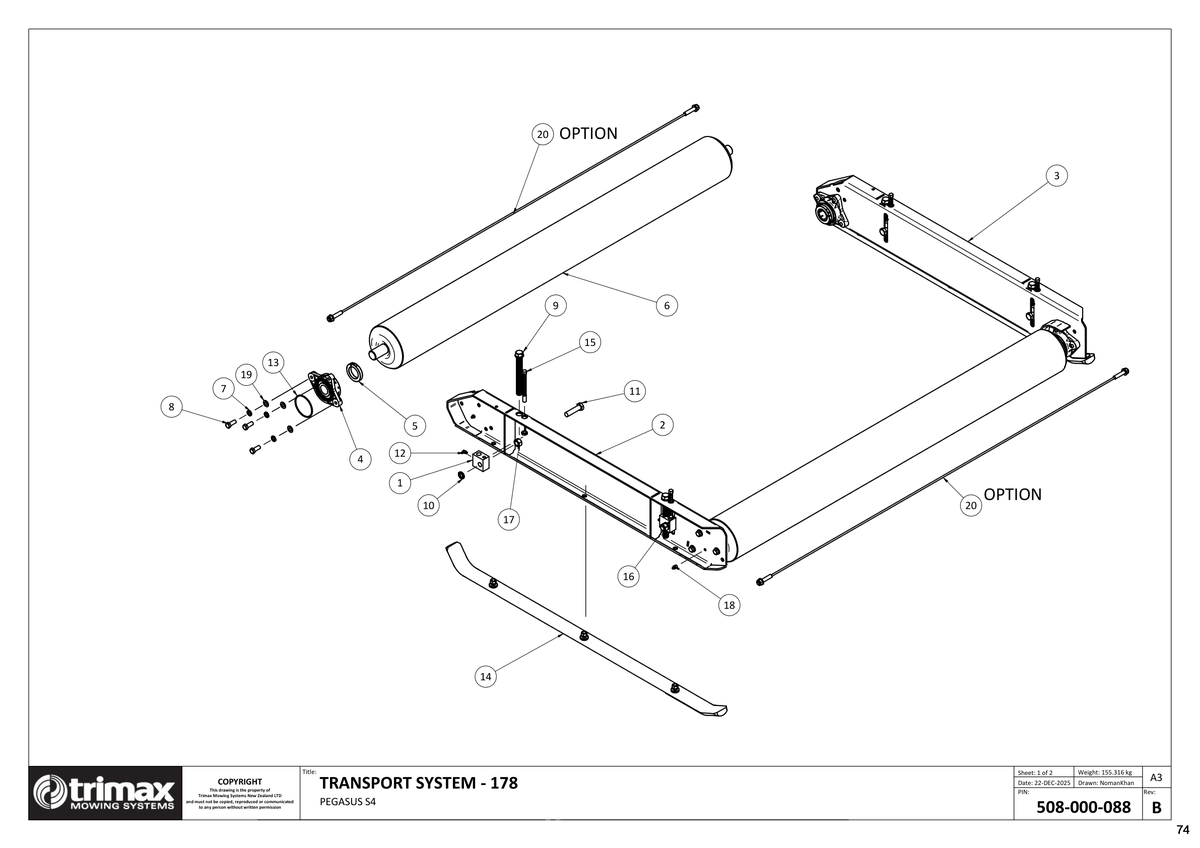

727 - Pegasus S4 - Transport System 178

Pegasus S4 493

Grouped product items
No.	Product Name	Price
1	Height Adjuster Block 412-000-279 More Info >	€48.45
2	Side Channel Weldment - LH 412-841-052 More Info >	€370.53
3	Side Channel Weldment - RH 412-841-051 More Info >	€370.53
4	Roller Bearing Assembly - Trimax Specification - 401-000-005 More Info >	€193.00
5	Bearing Collar 401-000-007 More Info >	€5.90
6	Roller Weldment 178 414-320-020 More Info >	€670.59
7	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	€0.37
8	Bolt - Hex Head - M12 x 30 - Trimax Specification 301-212-303 More Info >	€1.46
9	Height Adjuster Rod - RapidSet 450-000-126 More Info >	€41.66
10	Washer - Wedge Lock M16 - Trimax Specification - 308-160-083 More Info >	€3.53
11	Bolt - Hex Head - M16 x 65 - Trimax Specification 301-216-653 More Info >	€4.19
12	Grease Nipple - Trimax Specification 208-442-650 More Info >	€2.92
13	O Ring 450-000-055 More Info >	€3.04
14	Skid Assembly - Anti-Bounce 412-000-148 More Info >	€124.39
15	Height Indicator - Metric 412-000-256 More Info >	€32.67
16	Nut - Half 307-212-023 More Info >	€1.16
17	Nut - Plain 307-216-013 More Info >	€1.16
18	Grease Nipple - Trimax Specification 208-442-550 More Info >	€3.22
19	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	€0.37
20	Scraper - Roller Scraper Kit - 178cm i See notes section for usage notes on this part 404-320-122 More Info >	€41.47
