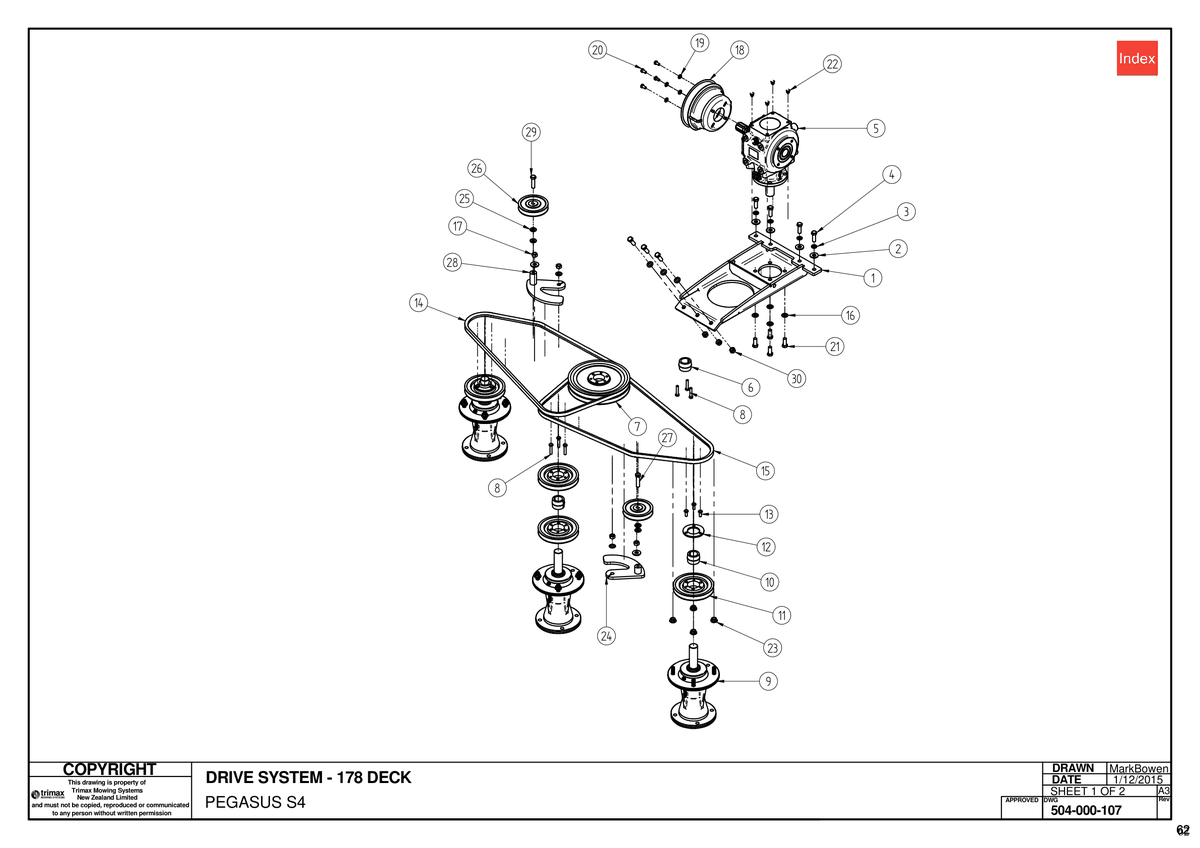

727 - Pegasus S4 - Drive System 178

Pegasus S4 493

Grouped product items
No.	Product Name	Price
1	Gearbox Mount Weldment 417-001-197 More Info >	€629.98
2	Washer - Heavy Flat 308-120-063 More Info >	€0.37
3	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	€0.37
4	Bolt - Hex Head - M12 x 35 - Trimax Specification 301-212-353 More Info >	€1.59
5	Gearbox - Standard Rotation - 540rpm 405-200-720 More Info >	€740.95
6	Bush 402-060-330 More Info >	€29.14
7	Pulley 403-360-650 More Info >	€66.05
8	Set Screw 305-208-403 More Info >	Price on Request
9	Spindle Assembly - Steadfast 504-000-106 More Info >	€502.32
10	Bush 402-060-320 More Info >	€23.21
11	Pulley 403-360-300 More Info >	€40.47
12	Retainer Ring 402-060-450 More Info >	€7.66
13	Set Screw 305-208-203 More Info >	Price on Request
14	Vee Belt - Trimax Specification 404-040-750 More Info >	€23.01
16	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	€0.37
17	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	€0.92
18	Cone - PTO Shield w/ Cut Out 410-440-401 More Info >	€30.36
19	Washer - Flat 308-080-013 More Info >	€0.37
20	Bolt - Hex Head - M8 x 16 - Trimax Specification 301-208-163 More Info >	€0.61
21	Bolt - Hex Head - M12 x 30 - Trimax Specification 301-212-303 More Info >	€1.46
22	Blanking Plug - M12 209-900-012 More Info >	€1.04
23	Nut - Flange 450-000-078 More Info >	€2.06
24	Idler Tower Incl Base 403-330-423 More Info >	€64.28
25	Washer - Hardened 108-071-513 More Info >	€1.95
26	Pulley Assembly - Idler 403-360-111 More Info >	€52.33
27	Bolt - Hex Head - M12 x 50 - Trimax Specification 301-212-503 More Info >	€2.00
28	Idler Tower Incl Base 403-330-432 More Info >	€45.96
29	Bolt - Hex Head - M12 x 45 - Trimax Specification 301-212-453 More Info >	€1.89
30	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	€0.61
