NOTES:

Part #	Number on image	Usage Notes
404-000-125	24	All Machines after serial number 727-493-400-033 / 727-610-410-044 use this part for unlock Rope All Machines after serial number 727-493-400-033 / 727-610-410-044 use this part for unlock Rope
406-000-084	27	PTO Shaft 406-000-084 includes PTO Shaft 406-340-890 and PTO Decal PTO Shaft 406-000-084 includes PTO Shaft 406-340-890 and PTO Decal
510-000-047	47	Serial number 727-493-400-0044 / 727-610-410-0060 onwards has improved clearance between Side Outriggers and Lift Rams. 510-000-049 (Outrigger Side inc. Bushes) is backward compatible Serial number 727-493-400-0044 / 727-610-410-0060 onwards has improved clearance between Side Outriggers and Lift Rams. 510-000-049 (Outrigger Side inc. Bushes) is backward compatible
510-000-060	49	New universal chassis from serial numbers: NZM 727-493-400-0089 / 727-610-410-0107 / 727-610-400-0087. All 3 outrigger buffer pads moved to chassis assembly New universal chassis from serial numbers: NZM 727-493-400-0089 / 727-610-410-0107 / 727-610-400-0087. All 3 outrigger buffer pads moved to chassis assembly

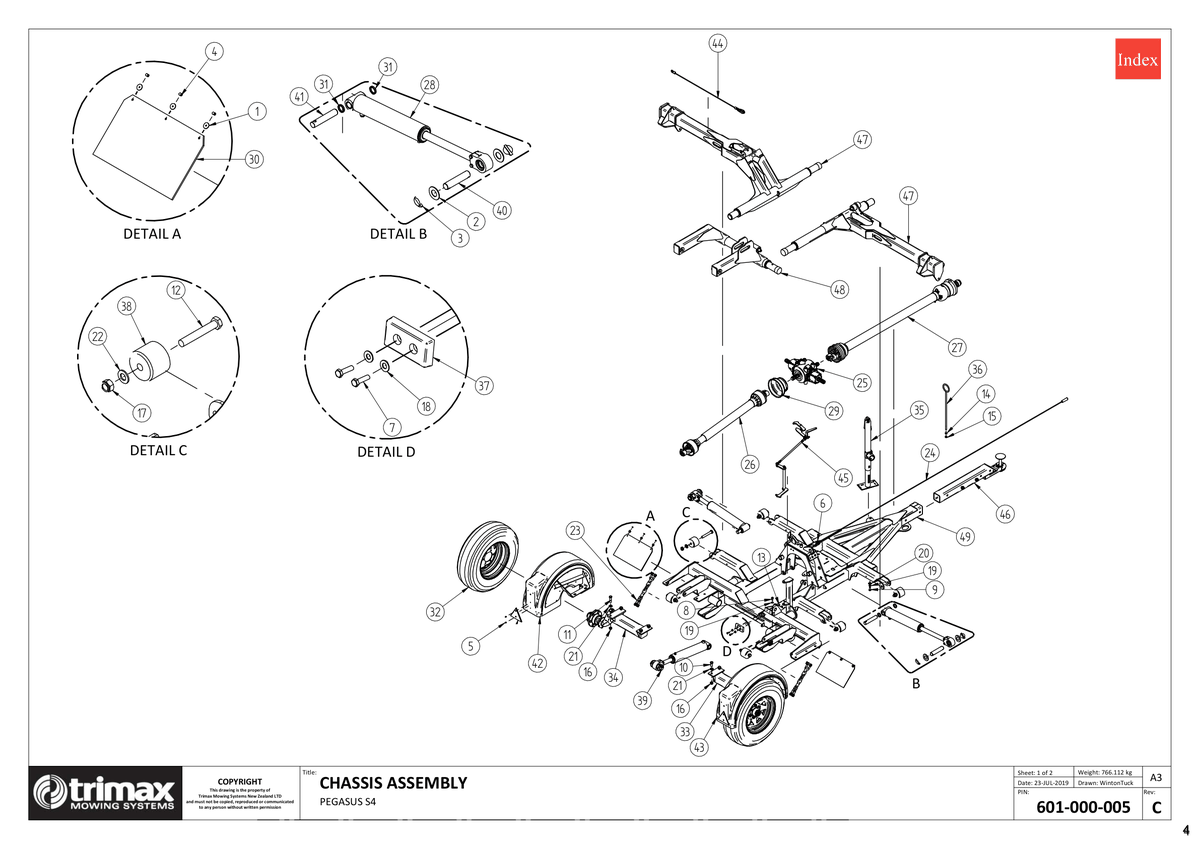

727 - Pegasus S4 - Chassis Assembly

Pegasus S4 493, Pegasus S4 610

Grouped product items
No.	Product Name	Price
1	Washer - Fender 108-031-413 More Info >	€0.37
2	Washer - Flat 108-224-014 More Info >	€1.95
3	Linch Pin - Ø7/16" x 1-3/4" 203-300-700 More Info >	€1.16
4	Blind Rivet 213-000-004 More Info >	€0.54
5	Blind Rivet 213-000-005 More Info >	€0.41
6	Bow Shackle - Stainless - Ø6mm 214-446-250 More Info >	€7.29
7	Bolt - Hex Head - M8 x 30 - Trimax Specification 301-208-303 More Info >	€0.90
8	Bolt - Hex Head - M12 x 25 - Trimax Specification 301-212-253 More Info >	€1.34
9	Bolt - Hex Head - M12 x 30 - Trimax Specification 301-212-303 More Info >	€1.46
10	Bolt - Hex Head - M16 x 40 - Trimax Specification 301-216-403 More Info >	€3.04
11	Bolt - Hex Head - M16 x 60 - Trimax Specification 301-216-603 More Info >	€3.83
12	Bolt - Hex Head - M20 x 130 - Trimax Specification 301-620-133 More Info >	€8.02
13	Nut - Nyloc 307-208-053 More Info >	€0.49
14	Nut - Plain M10 - Trimax Specification - 307-210-013 More Info >	€0.49
15	Nut - Nyloc 307-210-053 More Info >	€0.61
16	Nut - Nyloc M16 - Trimax Specification - 307-216-053 More Info >	€1.34
17	Nut - Hex Nyloc M20 - Trimax Specification - 307-220-053 More Info >	€1.59
18	Washer - Flat 308-100-013 More Info >	€0.37
19	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	€0.37
20	Washer - Heavy Flat 308-120-063 More Info >	€0.37
21	Washer - Heavy Flat 308-160-063 More Info >	€0.67
22	Washer - Heavy Flat M20 - Trimax Specification - 308-200-064 More Info >	€0.73
23	Check Chain Assembly 404-000-006 More Info >	€22.04
24	Release Rope Assembly 4.5m i See notes section for usage notes on this part 404-000-125 More Info >	€39.64
25	Gearbox 405-201-020 More Info >	€1,297.01
26	PTO Shaft 406-340-570 More Info >	€385.03
27	PTO Shaft Wide Angle-T60 i See notes section for usage notes on this part 406-000-084 More Info >	Price on Request
28	Lift Ram Assembly 409-845-200 More Info >	€1,189.66
29	Cone - PTO Shield 410-440-403 More Info >	€52.88
30	Mud Flap - Axle 410-842-440 More Info >	€43.83
31	Spacer Ring - Cut Height 412-000-474 More Info >	€15.53
32	Wheel Assembly - Road 416-842-620 More Info >	€385.17
33	Axle Assembly - Braked/Splined - RH 416-842-740 More Info >	€1,189.66
34	Axle Assembly - Braked/Splined - LH 416-842-750 More Info >	€1,189.66
35	Parking Jack Assembly 418-000-217 More Info >	€323.12
36	Guide 418-000-466 More Info >	€34.00
37	Buffer Pad 418-840-300 More Info >	€20.47
38	Guide Roller 418-844-364 More Info >	€54.03
39	Pin - Hydraulic Cylinder 419-845-550 More Info >	€37.58
40	Pin - Hydraulic Cylinder 419-845-560 More Info >	€34.12
41	Pin - Hydraulic Cylinder 419-845-561 More Info >	€21.98
42	Mudguard Assembly - Pegasus S4 LH 506-000-013 More Info >	€292.71
44	Safety Rope Assembly - Transport 506-000-025 More Info >	€38.85
45	Lock Release System 510-000-038 More Info >	Price on Request
46	Drawbar Assembly 510-000-046 More Info >	Price on Request
47	Side Outrigger Assembly - Pegasus S4 493/610 i See notes section for usage notes on this part 510-000-047 More Info >	€1,730.74
49	Chassis Weldment - Pegasus S4 i See notes section for usage notes on this part 510-000-060 More Info >	€8,758.00
