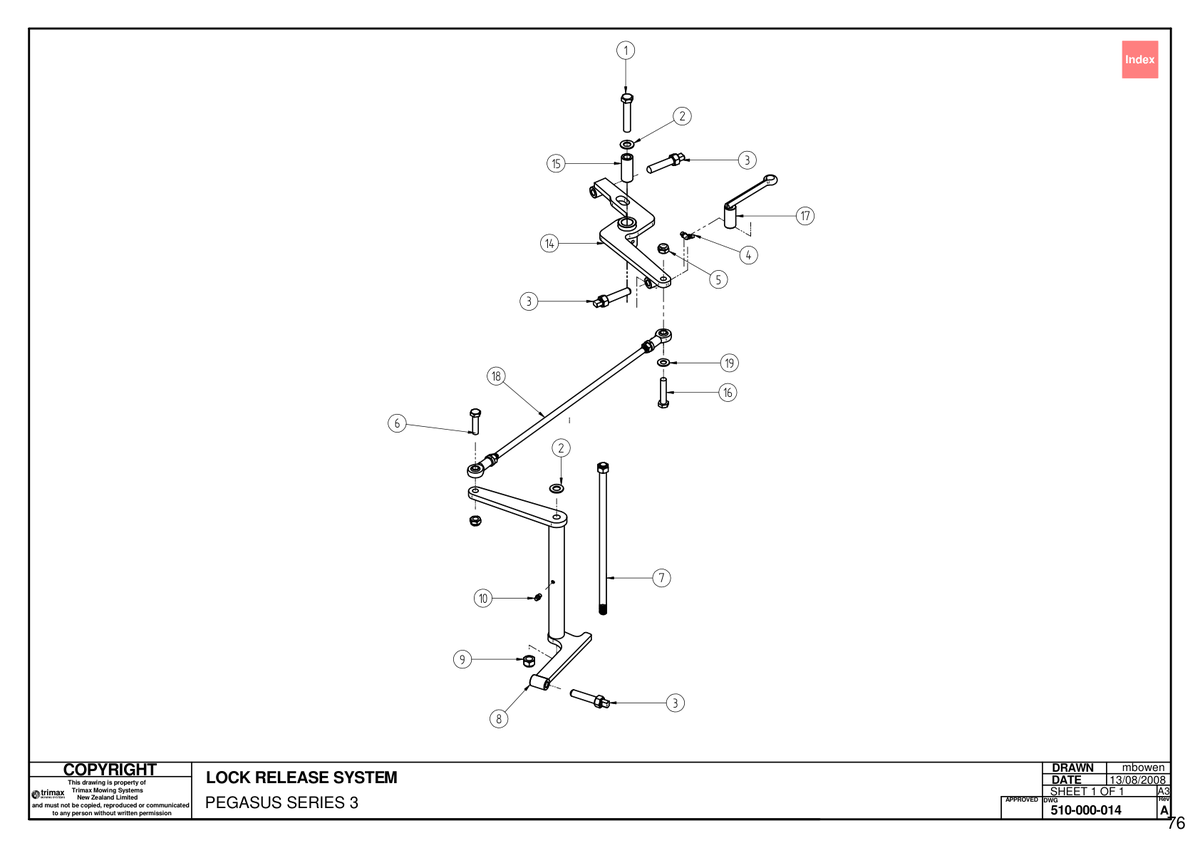

727 - Pegasus S3 - LOCK RELEASE SYSTEM - 510-000-014

Pegasus S3 493, Pegasus S3 610

Grouped product items
No. Image Product Name Price Quantity
1 Bolt [301-212-653] Bolt 301-212-653
€2.74
2 Washer - Flat [308-120-013] Washer - Flat 308-120-013
€0.37
3 Release Lever Pin Assembly [419-000-013] Release Lever Pin Assembly 419-000-013
€15.00
4 Grease Nipple [208-442-620] Grease Nipple 208-442-620
€2.39
5 Nut - Nyloc [307-210-053] Nut - Nyloc 307-210-053
€0.61
6 Bolt [301-210-403] Bolt 301-210-403
€1.14
9 Nut - Nyloc [307-212-053] Nut - Nyloc 307-212-053
€0.61
10 Grease Nipple [208-442-600] Grease Nipple 208-442-600
€2.25
14 Release Assembly [418-840-630] Release Assembly 418-840-630
€134.94
15 Bush [402-840-650] Bush 402-840-650
€20.16
16 Bolt [301-210-503] Bolt 301-210-503
€1.46
17 Release Rope Mount Weldment [418-840-680] Release Rope Mount Weldment 418-840-680
€48.81
18 Tie Rod Assembly - Transport Lock [418-000-193] Tie Rod Assembly - Transport Lock 418-000-193
€73.63
19 Washer - Flat [308-100-013] Washer - Flat 308-100-013
€0.37
