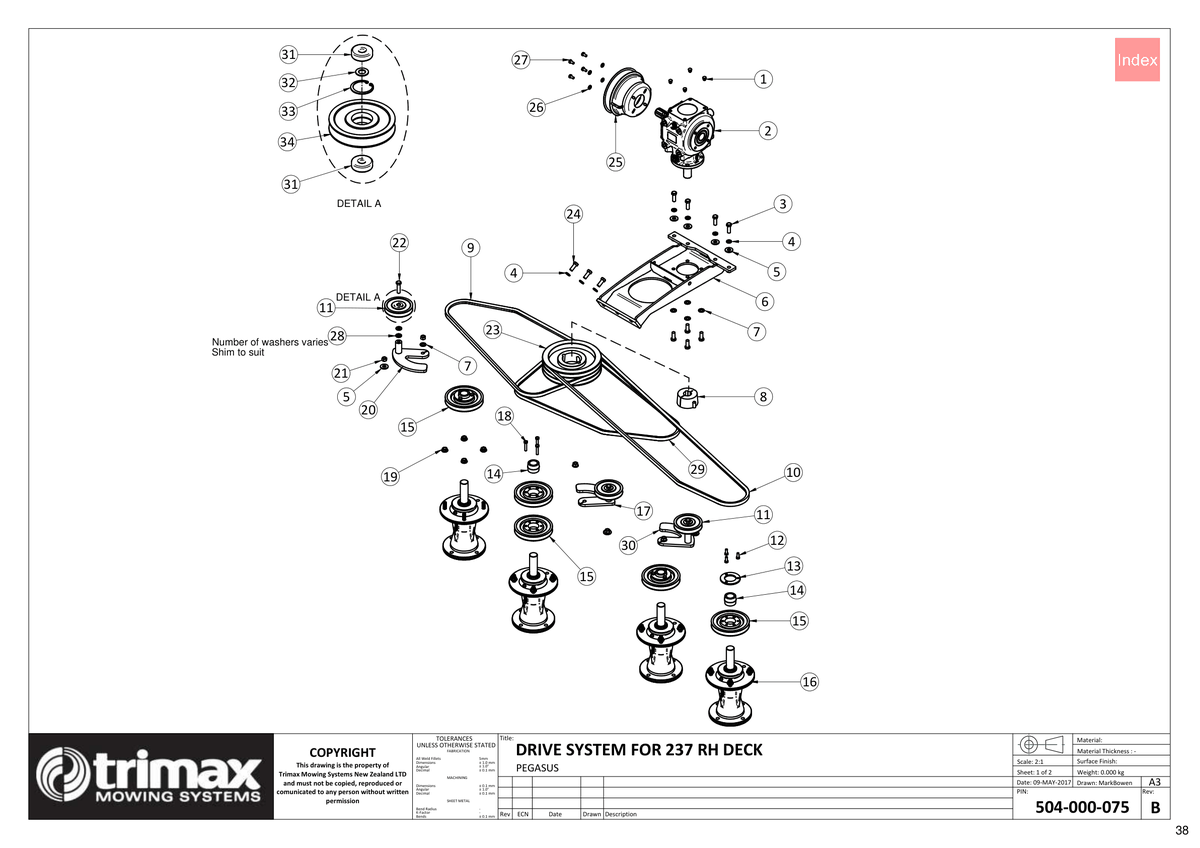

727 - Pegasus S3 - 237 RH DRIVE SYSTEM - 504-000-075

Pegasus S3 493, Pegasus S3 610

Grouped product items
No.	Product Name	Price
1	Blanking Plug 209-900-012 More Info >	€1.04
2	Gearbox 405-200-720 More Info >	€740.95
3	Bolt 301-212-353 More Info >	€1.59
4	Washer - Spring 308-120-043 More Info >	€0.37
5	Washer - Heavy Flat 308-120-063 More Info >	€0.37
6	Gearbox Mount Weldment - Deck Assembly 417-841-500 More Info >	€260.12
7	Washer - Flat 308-120-013 More Info >	€0.37
8	Bush - Taper Lock 402-060-820 More Info >	€35.71
10	Vee Belt 404-041-150 More Info >	€38.13
11	Pulley Assembly - Idler 403-360-111 More Info >	€52.33
13	Retainer Ring 402-060-450 More Info >	€7.66
14	Bush 402-060-320 More Info >	€23.21
15	Pulley 403-360-300 More Info >	€40.47
17	Idler Tower Incl Base 403-330-423 More Info >	€64.28
18	Set Screw 313-208-403 More Info >	Price on Request
19	Nut - Flange 450-000-078 More Info >	€2.06
20	Idler Tower Incl Base 403-330-432 More Info >	€45.96
21	Nut - Plain 307-212-013 More Info >	€0.92
22	Bolt 301-212-453 More Info >	€1.89
23	Pulley 403-000-038 More Info >	€200.32
24	Bolt 301-212-303 More Info >	€1.46
25	Cone - PTO Shield w/ Cut Out 410-440-401 More Info >	€30.36
26	Washer - Flat 308-080-016 More Info >	€0.37
27	Bolt 301-208-163 More Info >	€0.61
28	Washer - Hardened 108-071-513 More Info >	€1.95
9	Vee Belt 404-040-750 More Info >	€23.01
30	Idler Tower Incl Base 403-330-442 More Info >	€56.95
31	Bearing 401-021-900 More Info >	€11.85
32	Washer - Flat 108-071-413 More Info >	€1.40
33	Circlip/Snap Ring - Internal 204-820-371 More Info >	€1.61
34	Pulley - Idler 403-360-110 More Info >	€23.68
