NOTES:

Part #	Number on image	Usage Notes
412-841-010	14	For galvanised mowers use 412-841-001 RH and 412-841-011 LH
412-841-000	15	For galvanised mowers use 412-841-001 RH and 412-841-011 LH

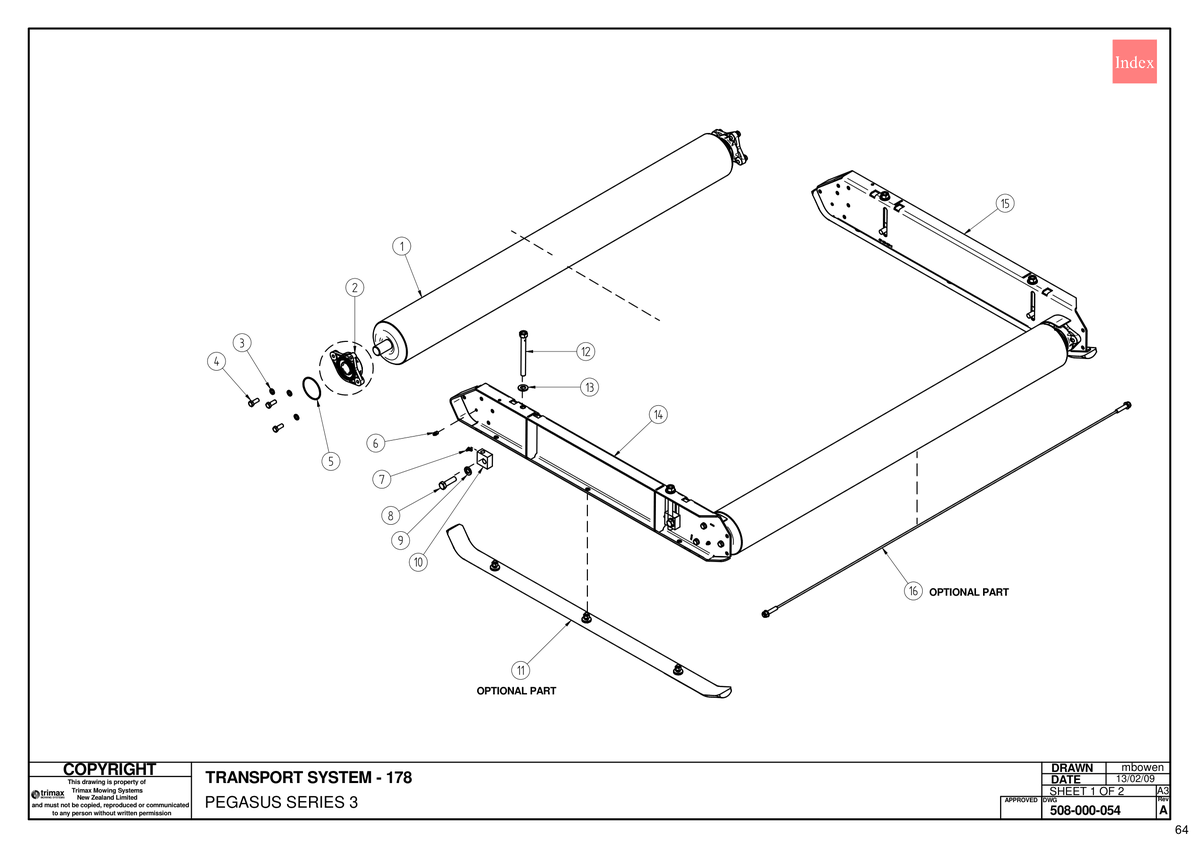

727 - Pegasus S3 - 178 TRANSPORT SYSTEM - 508-000-054

Pegasus S3 493, Pegasus S3 610

Grouped product items
No.	Product Name	Price
1	Roller Weldment 178 414-320-020 More Info >	€670.59
2	Bearing Assembly 401-000-005 More Info >	€151.93
3	Washer - Spring 308-120-043 More Info >	€0.37
4	Bolt 301-212-303 More Info >	€1.46
5	O Ring 450-000-055 More Info >	€3.04
6	Grease Nipple 208-442-550 More Info >	€3.22
7	Grease Nipple 208-442-650 More Info >	€2.92
8	Bolt 301-216-553 More Info >	€3.77
9	Washer - Nordloc 308-160-083 More Info >	€3.53
10	Height Adjuster Block 412-330-273 More Info >	€32.06
11	Skid Assembly - Anti-Bounce 412-000-148 More Info >	€124.39
12	Height Adj. Screw 412-850-251 More Info >	€20.22
13	Washer - Heavy Flat 308-160-063 More Info >	€0.67
14	Side Channel Weldment - DR LH Ext "S" i See notes section for usage notes on this part 412-841-010 More Info >	€426.75
15	Side Channel Weldment - DR RH Ext "S" 178 i See notes section for usage notes on this part 412-841-000 More Info >	€426.75
16	Scraper - Roller 178 404-320-122 More Info >	€41.47
