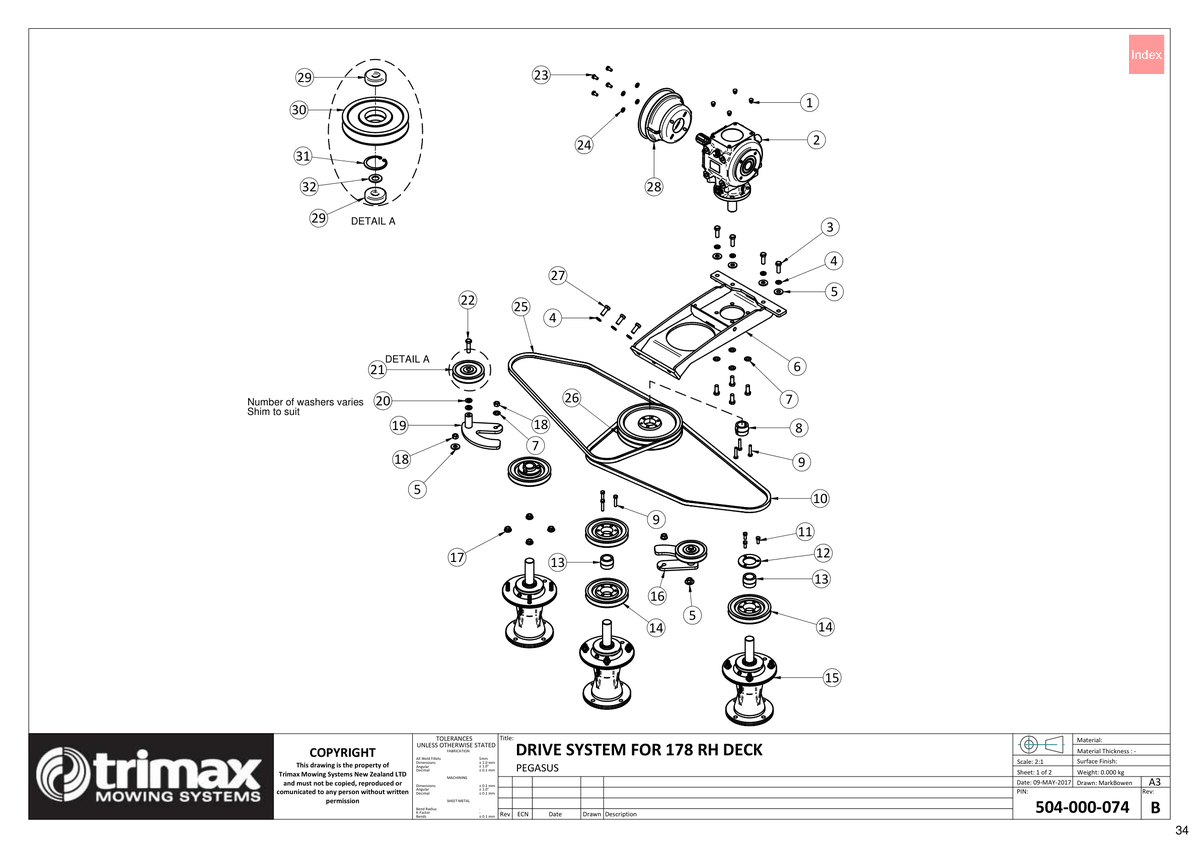

727 - Pegasus S3 - 178 RH DRIVE SYSTEM - 504-000-074

Pegasus S3 493, Pegasus S3 610

Grouped product items
No.	Product Name	Price
1	Blanking Plug - M12 209-900-012 More Info >	€1.04
2	Gearbox - Standard Rotation - 540rpm 405-200-720 More Info >	€740.95
3	Bolt - Hex Head - M12 x 35 - Trimax Specification 301-212-353 More Info >	€1.59
4	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	€0.37
5	Washer - Heavy Flat 308-120-063 More Info >	€0.37
6	Gearbox Mount Weldment - Deck Assembly 417-841-500 More Info >	€260.12
7	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	€0.37
8	Bush 402-060-330 More Info >	€29.14
9	Set Screw 313-208-403 More Info >	Price on Request
11	Set Screw 313-208-203 More Info >	€1.17
12	Retainer Ring 402-060-450 More Info >	€7.66
13	Bush 402-060-320 More Info >	€23.21
14	Pulley 403-360-300 More Info >	€40.47
16	Idler Tower Incl Base 403-330-423 More Info >	€64.28
17	Nut - Flange 450-000-078 More Info >	€2.06
18	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	€0.92
19	Idler Tower Incl Base 403-330-432 More Info >	€45.96
20	Washer - Hardened 108-071-513 More Info >	€1.95
21	Pulley Assembly - Idler 403-360-111 More Info >	€52.33
22	Bolt - Hex Head - M12 x 45 - Trimax Specification 301-212-453 More Info >	€1.89
23	Bolt - Hex Head - M8 x 16 - Trimax Specification 301-208-163 More Info >	€0.61
24	Washer - Flat 308-080-016 More Info >	€0.37
10	Vee Belt - Trimax Specification 404-040-750 More Info >	€23.01
26	Pulley 403-360-650 More Info >	€66.05
27	Bolt - Hex Head - M12 x 30 - Trimax Specification 301-212-303 More Info >	€1.46
28	Cone - PTO Shield w/ Cut Out 410-440-401 More Info >	€30.36
29	Bearing - Trimax Specification - 401-021-900 More Info >	€11.85
30	Pulley - Idler 403-360-110 More Info >	€23.68
31	Circlip/Snap Ring - Internal 204-820-371 More Info >	€1.61
32	Washer - Flat 108-071-413 More Info >	€1.40
