NOTES:

Part #	Number on image	Usage Notes
404-320-129	22	Roller Scraper available as an option

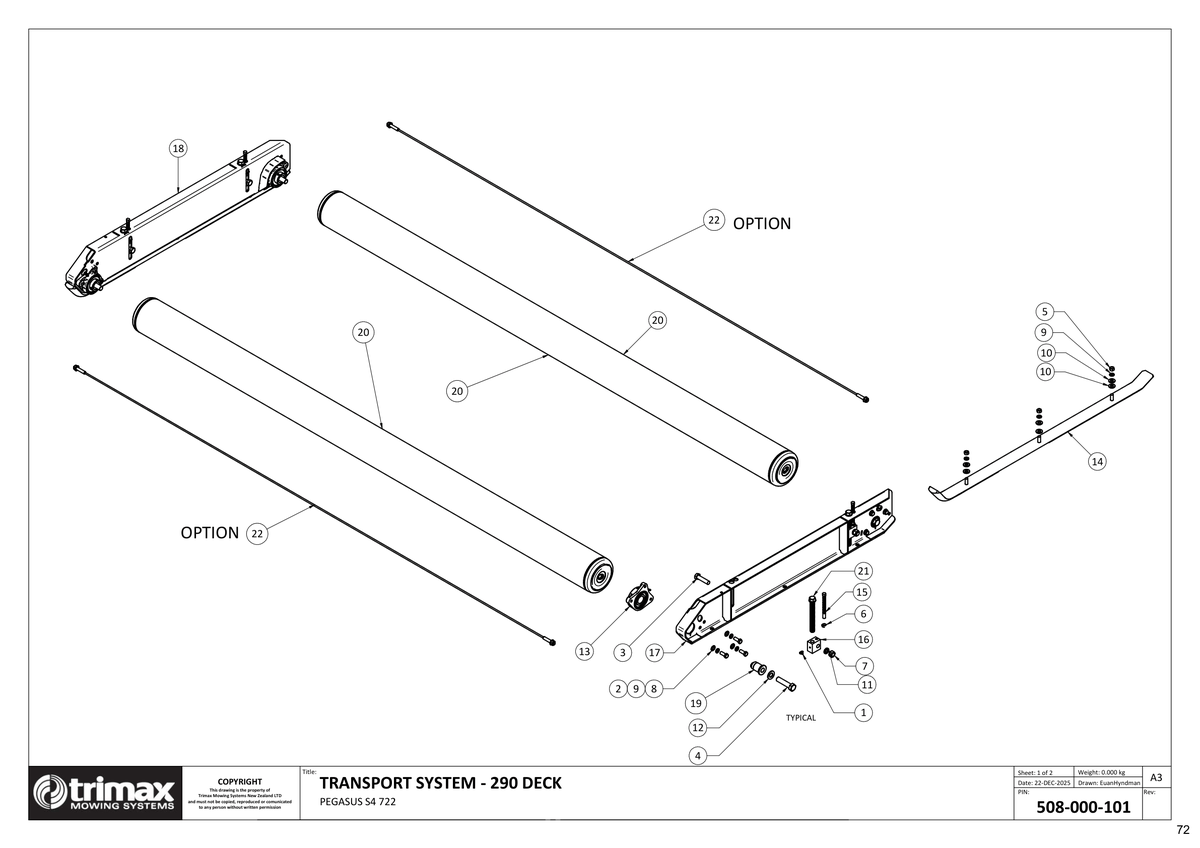

727-722 - Pegasus S4 - Transport System 290 Side Deck

Pegasus S4 722

Grouped product items
No.	Product Name	Price
1	Grease Nipple - Trimax Specification 208-442-650 More Info >	€2.92
2	Bolt - Hex Head - M12 x 30 - Trimax Specification 301-212-303 More Info >	€1.46
3	Bolt - Hex Head - M16 x 65 - Trimax Specification 301-216-653 More Info >	€4.19
4	Bolt - Hex Head M20 x 85 - Trimax Specification - 301-220-853 More Info >	€8.56
5	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	€0.92
6	Nut - Half 307-212-023 More Info >	€1.16
7	Nut - Plain 307-216-013 More Info >	€1.16
8	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	€0.37
9	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	€0.37
10	Washer - Heavy Flat 308-120-063 More Info >	€0.37
11	Washer - Wedge Lock M16 - Trimax Specification - 308-160-083 More Info >	€3.53
12	Washer - Heavy Flat M20 - Trimax Specification - 308-200-064 More Info >	€0.73
13	Roller Bearing Assembly - TriBolt - Trimax Specification 401-000-025 More Info >	€196.00
14	Skid Assembly - Anti-Bounce 412-000-148 More Info >	€124.39
15	Height Indicator - Imperial 412-000-258 More Info >	€35.70
16	Height Adjuster Block 412-000-279 More Info >	€48.45
17	Side Channel Weldment - LocTek - DR 412-000-286 More Info >	€382.06
18	Side Channel Weldment - LocTek - DR 412-000-287 More Info >	€382.06
19	Roller Stub Sleeve - LocTek - 414-000-076 More Info >	€32.78
20	Roller Weldment - Loctek 290 414-000-095 More Info >	€754.30
21	Height Adjuster Rod - RapidSet 450-000-126 More Info >	€41.66
22	Scraper - Roller 290 i See notes section for usage notes on this part 404-320-129 More Info >	€67.41
