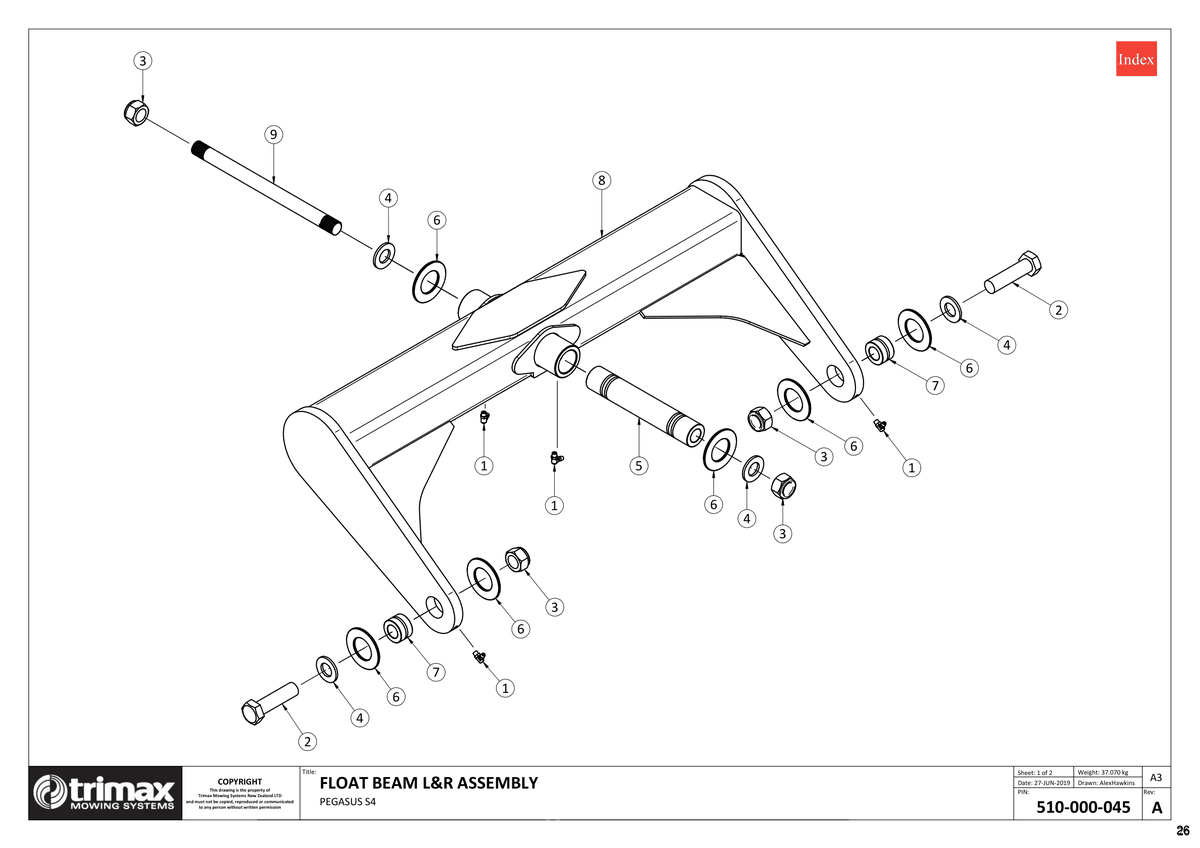

727-722 - Pegasus S4 - Float Beam - LH & RH

Pegasus S4 722

Grouped product items
No. Image Product Name Price Quantity
1 Grease Nipple - Trimax Specification [208-442-650] Grease Nipple - Trimax Specification 208-442-650
€2.92
2 Bolt - Hex Head - M20 x 75 - Trimax Specification [301-220-753] Bolt - Hex Head - M20 x 75 - Trimax Specification 301-220-753
€6.80
3 Nut - Hex Nyloc M20 - Trimax Specification - [307-220-053] Nut - Hex Nyloc M20 - Trimax Specification - 307-220-053
€1.59
4 Washer - Heavy Flat M20 - Trimax Specification - [308-200-064] Washer - Heavy Flat M20 - Trimax Specification - 308-200-064
€0.73
5 Sleeve - Pitch Tube [402-000-010] Sleeve - Pitch Tube 402-000-010
€152.80
6 Thrust Washer [402-840-520] Thrust Washer 402-840-520
€53.91
7 Hardened Bush [402-840-550] Hardened Bush 402-840-550
€21.74
8 Side Float Beam Weldment [418-840-070] Side Float Beam Weldment 418-840-070
€873.83
9 Pin - Pitch Pivot [419-840-450] Pin - Pitch Pivot 419-840-450
€38.47
