NOTES:

Part #	Number on image	Usage Notes
504-000-133	27	The new spindle with keyway is backwards compatible with prior machines

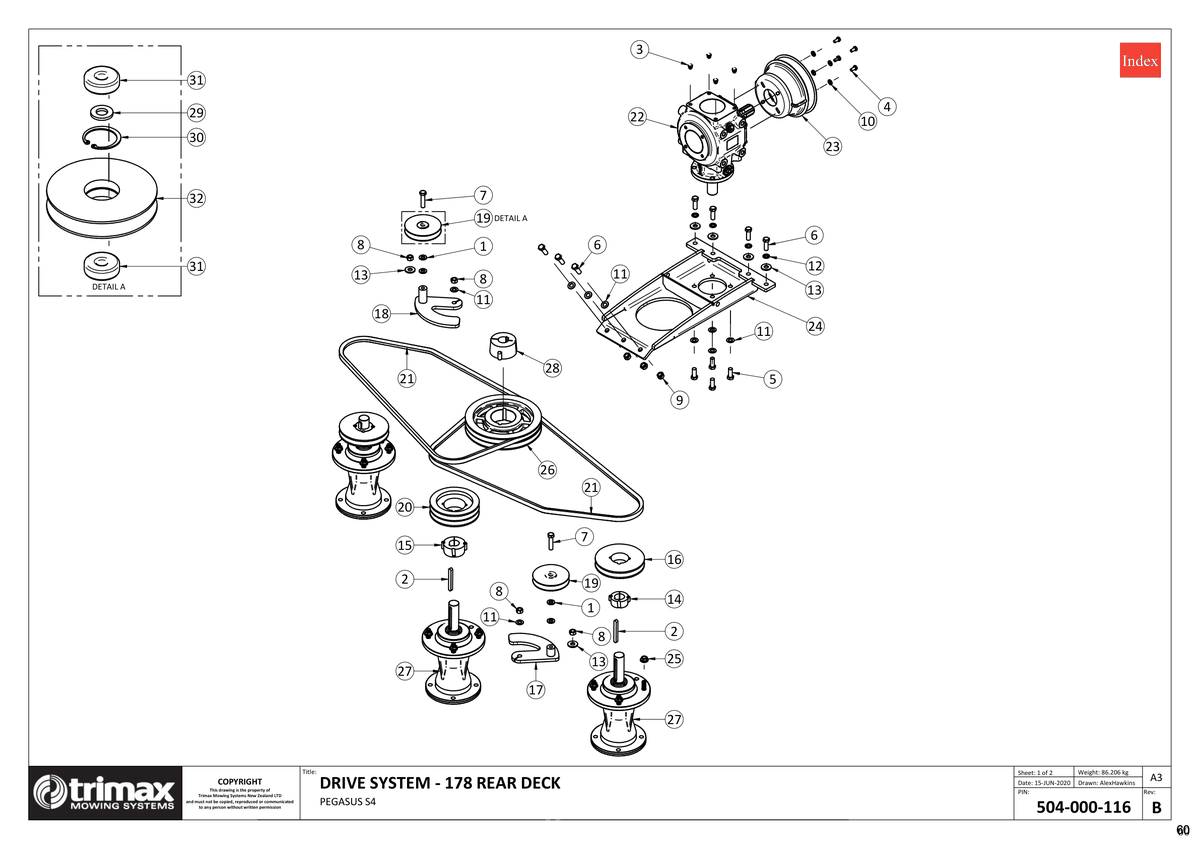

727-722 - Pegasus S4 - Drive System - Rear - Taper Pulley

Pegasus S4 722

Grouped product items
No.	Product Name	Price
1	Washer - Hardened 108-071-513 More Info >	€1.95
2	Key - 10 x 8 x 85 - Trimax Specification 205-000-003 More Info >	€3.41
3	Blanking Plug - M12 209-900-012 More Info >	€1.04
4	Bolt - Hex Head - M8 x 16 - Trimax Specification 301-208-163 More Info >	€0.61
5	Bolt - Hex Head - M12 x 30 - Trimax Specification 301-212-303 More Info >	€1.46
6	Bolt - Hex Head - M12 x 35 - Trimax Specification 301-212-353 More Info >	€1.59
7	Bolt - Hex Head - M12 x 50 - Trimax Specification 301-212-503 More Info >	€2.00
8	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	€0.92
9	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	€0.61
10	Washer - Flat 308-080-013 More Info >	€0.37
11	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	€0.37
12	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	€0.37
13	Washer - Heavy Flat 308-120-063 More Info >	€0.37
14	Bush - Taper Lock 402-000-078 More Info >	€15.49
15	Bush - Taper Lock 402-000-090 More Info >	€19.80
16	Pulley - Taper Lock 403-000-083 More Info >	€58.34
17	Idler Tower Incl Base 403-330-423 More Info >	€64.28
18	Idler Tower Incl Base 403-330-432 More Info >	€45.96
19	Pulley Assembly - Idler 403-360-111 More Info >	€52.33
20	Pulley - Taper Lock 403-361-140 More Info >	€61.49
21	Vee Belt - Trimax Specification 404-040-750 More Info >	€23.01
22	Gearbox - Standard Rotation - 540rpm 405-200-720 More Info >	€740.95
23	Cone - PTO Holes Punched 410-440-402 More Info >	€23.50
24	Gearbox Mount Weldment 417-001-197 More Info >	€629.98
25	Nut - Flange 450-000-078 More Info >	€2.06
26	Pulley - Taper Lock - Trimax Specification 403-000-128 More Info >	€97.50
27	Spindle Assembly - Steadfast - With Keyway i See notes section for usage notes on this part 504-000-133 More Info >	€544.51
28	Bush - Taper Lock 402-060-820 More Info >	€35.71
30	Circlip/Snap Ring - Internal 204-820-371 More Info >	€1.61
31	Bearing - Trimax Specification - 401-021-900 More Info >	€11.85
32	Pulley - Idler 403-360-110 More Info >	€23.68
