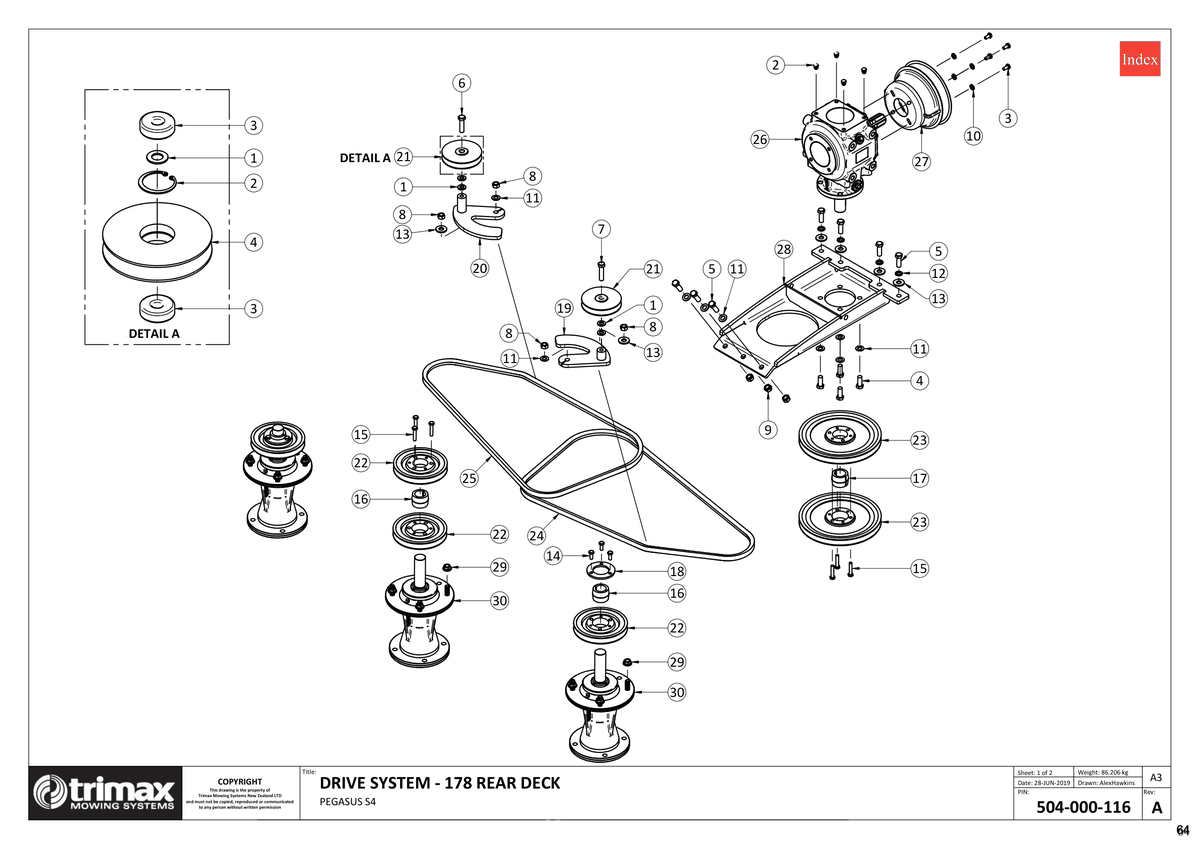

727-722 - Pegasus S4 - Drive System - Rear - Biloc

Pegasus S4 722

Grouped product items
No.	Product Name	Price
1	Washer - Hardened 108-071-513 More Info >	€1.95
2	Blanking Plug - M12 209-900-012 More Info >	€1.04
3	Bolt - Hex Head - M8 x 16 - Trimax Specification 301-208-163 More Info >	€0.61
4	Bolt - Hex Head - M12 x 30 - Trimax Specification 301-212-303 More Info >	€1.46
5	Bolt - Hex Head - M12 x 35 - Trimax Specification 301-212-353 More Info >	€1.59
6	Bolt - Hex Head - M12 x 45 - Trimax Specification 301-212-453 More Info >	€1.89
7	Bolt - Hex Head - M12 x 50 - Trimax Specification 301-212-503 More Info >	€2.00
8	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	€0.92
9	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	€0.61
10	Washer - Flat 308-080-013 More Info >	€0.37
11	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	€0.37
12	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	€0.37
13	Washer - Heavy Flat 308-120-063 More Info >	€0.37
14	Set Screw 313-208-203 More Info >	€1.17
15	Set Screw 313-208-403 More Info >	Price on Request
16	Bush 402-060-320 More Info >	€23.21
17	Bush 402-060-330 More Info >	€29.14
18	Retainer Ring 402-060-450 More Info >	€7.66
19	Idler Tower Incl Base 403-330-423 More Info >	€64.28
20	Idler Tower Incl Base 403-330-432 More Info >	€45.96
21	Pulley Assembly - Idler 403-360-111 More Info >	€52.33
22	Pulley 403-360-300 More Info >	€40.47
23	Pulley 403-360-650 More Info >	€66.05
24	Vee Belt - Trimax Specification 404-040-750 More Info >	€23.01
26	Gearbox - Standard Rotation - 540rpm 405-200-720 More Info >	€740.95
27	Cone - PTO Holes Punched 410-440-402 More Info >	€23.50
28	Gearbox Mount Weldment 417-001-197 More Info >	€629.98
29	Nut - Flange 450-000-078 More Info >	€2.06
30	Spindle Assembly - Steadfast 504-000-106 More Info >	€502.32
1	Washer - Flat 108-071-413 More Info >	€1.40
2	Circlip/Snap Ring - Internal 204-820-371 More Info >	€1.61
3	Bearing - Trimax Specification - 401-021-900 More Info >	€11.85
4	Pulley - Idler 403-360-110 More Info >	€23.68
