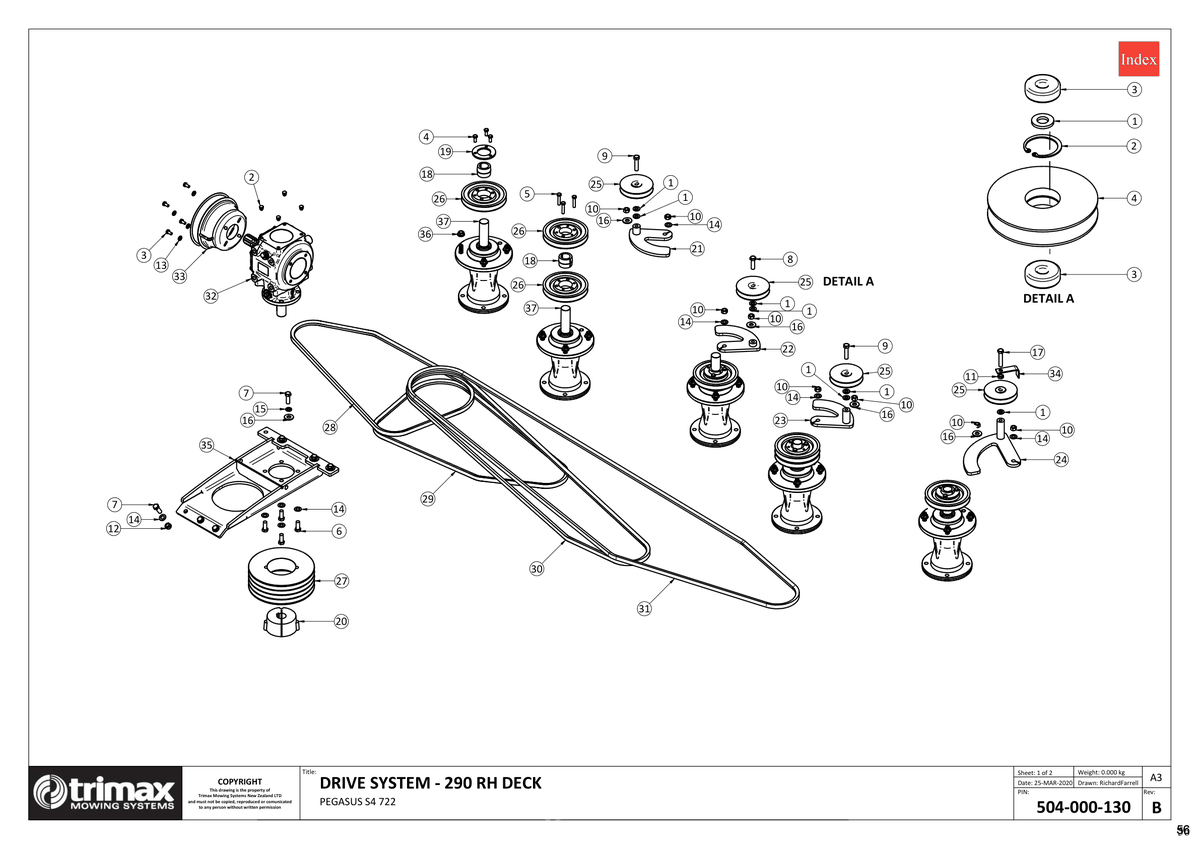

727-722 - Pegasus S4 - Drive System 290 RH - Biloc

Pegasus S4 722

Grouped product items
No.	Product Name	Price
1	Washer - Hardened 108-071-513 More Info >	€1.95
2	Blanking Plug - M12 209-900-012 More Info >	€1.04
3	Bolt - Hex Head - M8 x 16 - Trimax Specification 301-208-163 More Info >	€0.61
4	Bolt - Hex Head - M8 x 20 - Trimax Specification 301-208-203 More Info >	€0.67
5	Bolt - Hex Head - M8 x 40 - Trimax Specification 301-208-403 More Info >	€1.16
6	Bolt - Hex Head - M12 x 30 - Trimax Specification 301-212-303 More Info >	€1.46
7	Bolt - Hex Head - M12 x 35 - Trimax Specification 301-212-353 More Info >	€1.59
8	Bolt - Hex Head - M12 x 40 - Trimax Specification 301-212-403 More Info >	€1.77
9	Bolt - Hex Head - M12 x 50 - Trimax Specification 301-212-503 More Info >	€2.00
10	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	€0.92
11	Nut - Half 307-212-023 More Info >	€1.16
12	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	€0.61
13	Washer - Flat 308-080-016 More Info >	€0.37
14	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	€0.37
15	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	€0.37
16	Washer - Heavy Flat 308-120-063 More Info >	€0.37
17	Set Screw 313-212-603 More Info >	€2.67
18	Bush 402-060-320 More Info >	€23.21
19	Retainer Ring 402-060-450 More Info >	€7.66
20	Bush - Taper Lock 402-060-680 More Info >	€50.33
21	Idler Tower Incl Base 403-330-423 More Info >	€64.28
22	Idler Tower Incl Base 403-330-424 More Info >	€61.90
23	Idler Tower Incl Base 403-330-432 More Info >	€45.96
25	Pulley Assembly - Idler 403-360-111 More Info >	€52.33
26	Pulley 403-360-300 More Info >	€40.47
27	Pulley - Taper Lock 403-361-290 More Info >	€183.99
28	Vee Belt - Trimax Specification 404-040-750 More Info >	€23.01
30	Vee Belt - Trimax Specification 404-041-150 More Info >	€38.13
31	Vee Belt - Trimax Specification 404-041-580 More Info >	€52.82
32	Gearbox - Standard Rotation - 540rpm 405-200-720 More Info >	€740.95
33	Cone - PTO Shield w/ Cut Out 410-440-401 More Info >	€30.36
34	Folding 417-001-178 More Info >	€8.34
35	Gearbox Mount Weldment 417-001-197 More Info >	€629.98
36	Nut - Flange 450-000-078 More Info >	€2.06
37	Spindle Assembly - Steadfast 504-000-106 More Info >	€502.32
2	Circlip/Snap Ring - Internal 204-820-371 More Info >	€1.61
3	Bearing - Trimax Specification - 401-021-900 More Info >	€11.85
4	Pulley - Idler 403-360-110 More Info >	€23.68
