NOTES:

Part #	Number on image	Usage Notes
460-000-234	25	Item 25 Includes items 5,6,7,8 & 23 as Kit. Item 25 Includes items 5,6,7,8 & 23 as Kit. Item 25 Includes items 5,6,7,8 & 23 as Kit.

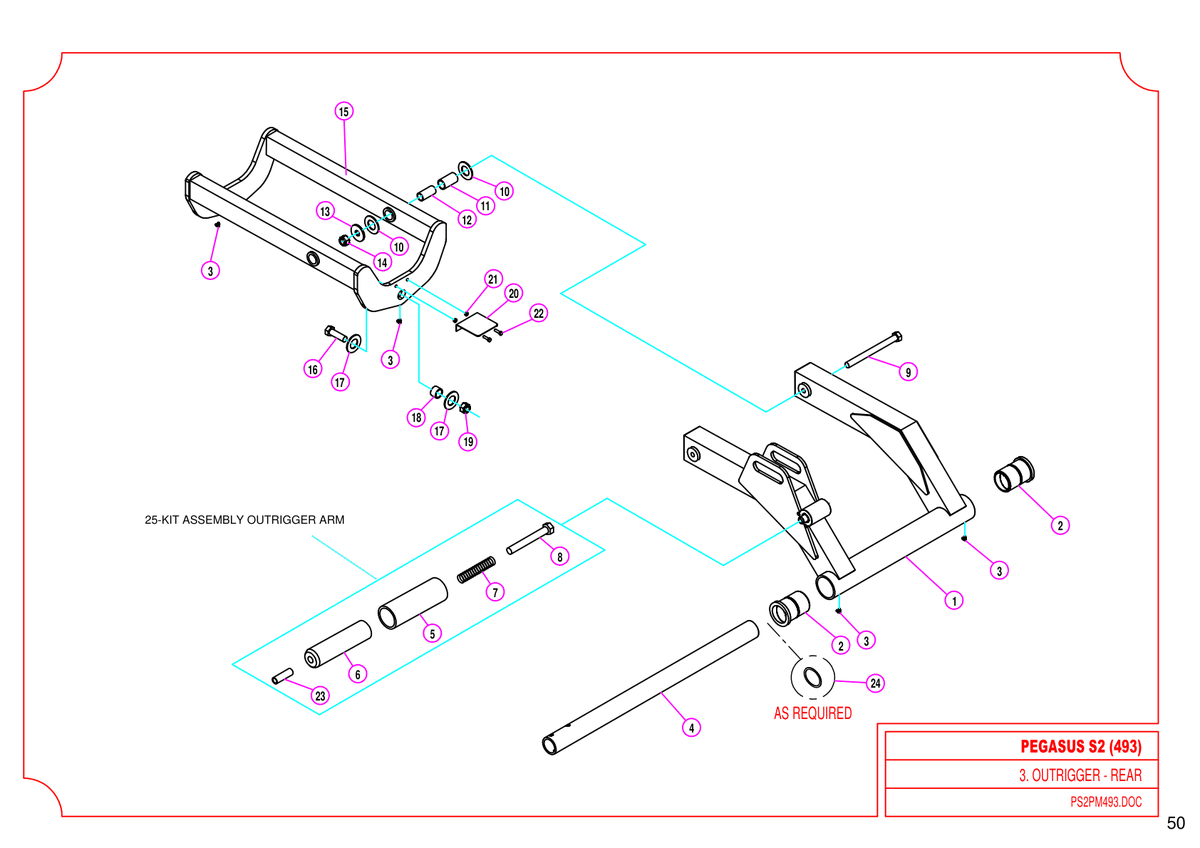

726 - Pegasus S2 - OUTRIGGER - REAR

Pegasus S2 493, Pegasus S2 610

Grouped product items
No.	Product Name	Price
2	Bush 402-840-260 More Info >	€110.79
3	Grease Nipple 208-442-650 More Info >	€2.92
4	Pin - Outrigger Hinge - Rear 419-840-200 More Info >	€175.44
5	Bush 402-840-710 More Info >	€62.35
6	Pin - Transport Lock 419-840-700 More Info >	€77.53
7	Spring - Compression 207-840-720 More Info >	€7.05
8	Bolt 301-208-906 More Info >	€5.78
9	Bolt 301-616-203 More Info >	€8.62
10	Washer - Pitch Pivot Rear 402-840-570 More Info >	€15.36
11	Bush - Pitch Pivot Rear 402-840-590 More Info >	€37.27
12	Sleeve 402-840-580 More Info >	€21.25
13	Heavy Washer 402-840-560 More Info >	€20.22
14	Nut - Nyloc 307-216-053 More Info >	€1.34
15	Rear Float Beam Weldment 418-844-050 More Info >	€1,337.05
16	Bolt 301-220-753 More Info >	€6.80
17	Thrust Washer 402-840-520 More Info >	€53.91
18	Hardened Bush 402-840-550 More Info >	€21.74
19	Nut - Nyloc 307-220-053 More Info >	€1.59
21	Nut - Nyloc 307-206-053 More Info >	€0.37
22	Bolt 301-206-303 More Info >	€0.55
23	Grub Screw 312-208-255 More Info >	€0.92
24	Shim 418-000-001 More Info >	€24.52
25	Kit Assembly - Outrigger Arm - Pegasus i See notes section for usage notes on this part 460-000-234 More Info >	€145.93
