NOTES:

Part #	Number on image	Usage Notes
460-000-234	30	Item 30 Includes items 10,11,12,13 & 28 as Kit. Item 30 Includes items 10,11,12,13 & 28 as Kit. Item 30 Includes items 10,11,12,13 & 28 as Kit.

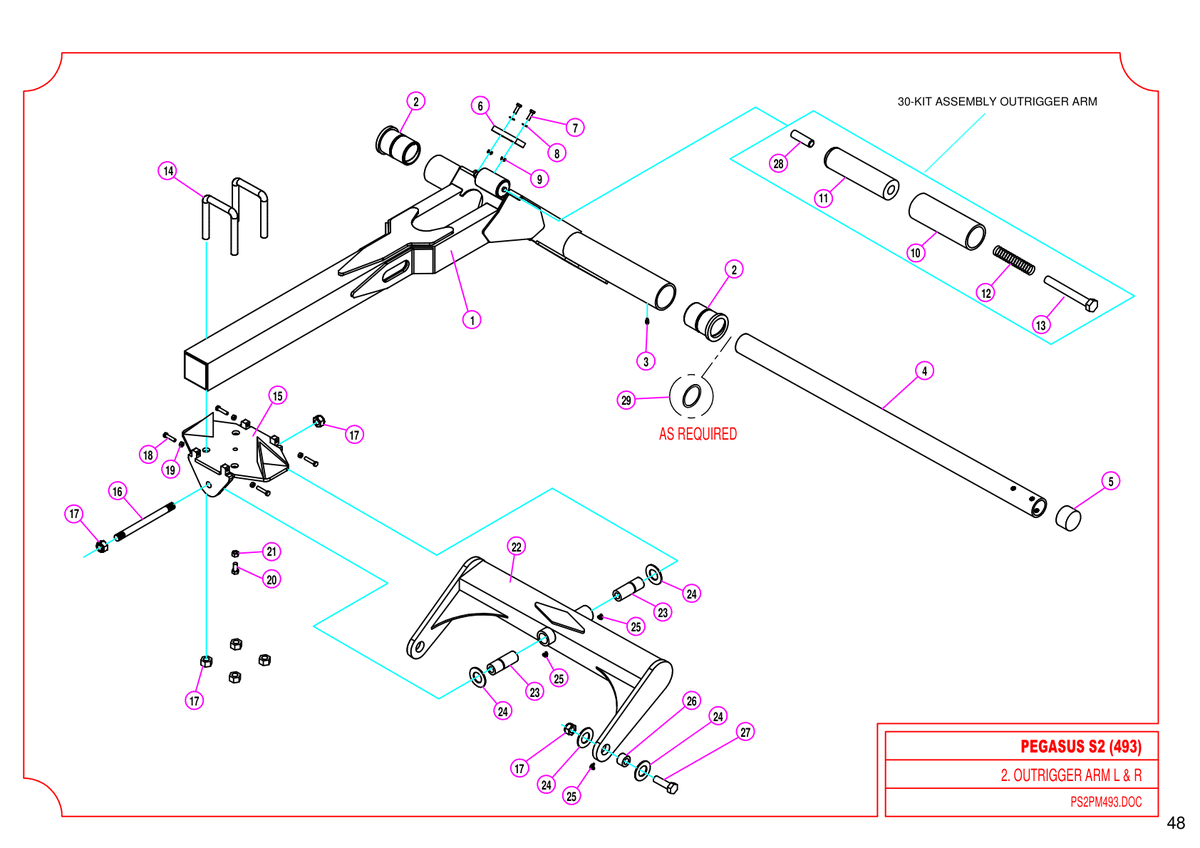

726 - Pegasus S2 - OUTRIGGER ARM L & R

Pegasus S2 493, Pegasus S2 610

Grouped product items
No.	Product Name	Price
2	Bush 402-840-260 More Info >	€110.79
3	Grease Nipple - Trimax Specification 208-442-600 More Info >	€2.25
4	Pin - Outrigger Hinge - Side 419-840-210 More Info >	€226.43
5	Plastic Cap - Round Ø63 x 36 209-840-320 More Info >	€5.90
6	Buffer Pad 418-840-300 More Info >	€20.47
7	Bolt - Hex Head - M8 x 25 - Trimax Specification 301-208-253 More Info >	€0.74
8	Washer - Flat 308-080-013 More Info >	€0.37
9	Nut - Nyloc 307-208-056 More Info >	€0.61
10	Bush 402-840-710 More Info >	€62.35
11	Pin - Transport Lock 419-840-700 More Info >	€77.53
12	Spring - Compression 207-840-720 More Info >	€7.05
13	Bolt - Bolt - Hex Head - M8 x 90- Trimax Specification 301-208-906 More Info >	€5.78
14	U-Bolt 215-840-400 More Info >	€39.58
15	Pitch Bracket Weldment - Side Outrigger Assembly 418-840-060 More Info >	€394.28
16	Pin - Pitch Pivot 419-840-450 More Info >	€38.47
17	Nut - Hex Nyloc M20 - Trimax Specification - 307-220-053 More Info >	€1.59
19	Nut - Plain 307-208-013 More Info >	€0.37
20	Bolt - Hex Head - M12 x 25 - Trimax Specification 301-212-253 More Info >	€1.34
21	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	€0.61
22	Side Float Beam Weldment 418-840-070 More Info >	€873.83
23	Sleeve - Pitch Tube 402-000-010 More Info >	€152.80
24	Thrust Washer 402-840-520 More Info >	€53.91
25	Grease Nipple - Trimax Specification 208-442-650 More Info >	€2.92
26	Hardened Bush 402-840-550 More Info >	€21.74
27	Bolt - Hex Head - M20 x 75 - Trimax Specification 301-220-753 More Info >	€6.80
28	Grub Screw 312-208-255 More Info >	€0.92
29	Shim 418-000-001 More Info >	€24.52
30	Kit Assembly - Outrigger Arm - Pegasus i See notes section for usage notes on this part 460-000-234 More Info >	€145.93
