Parts Shop

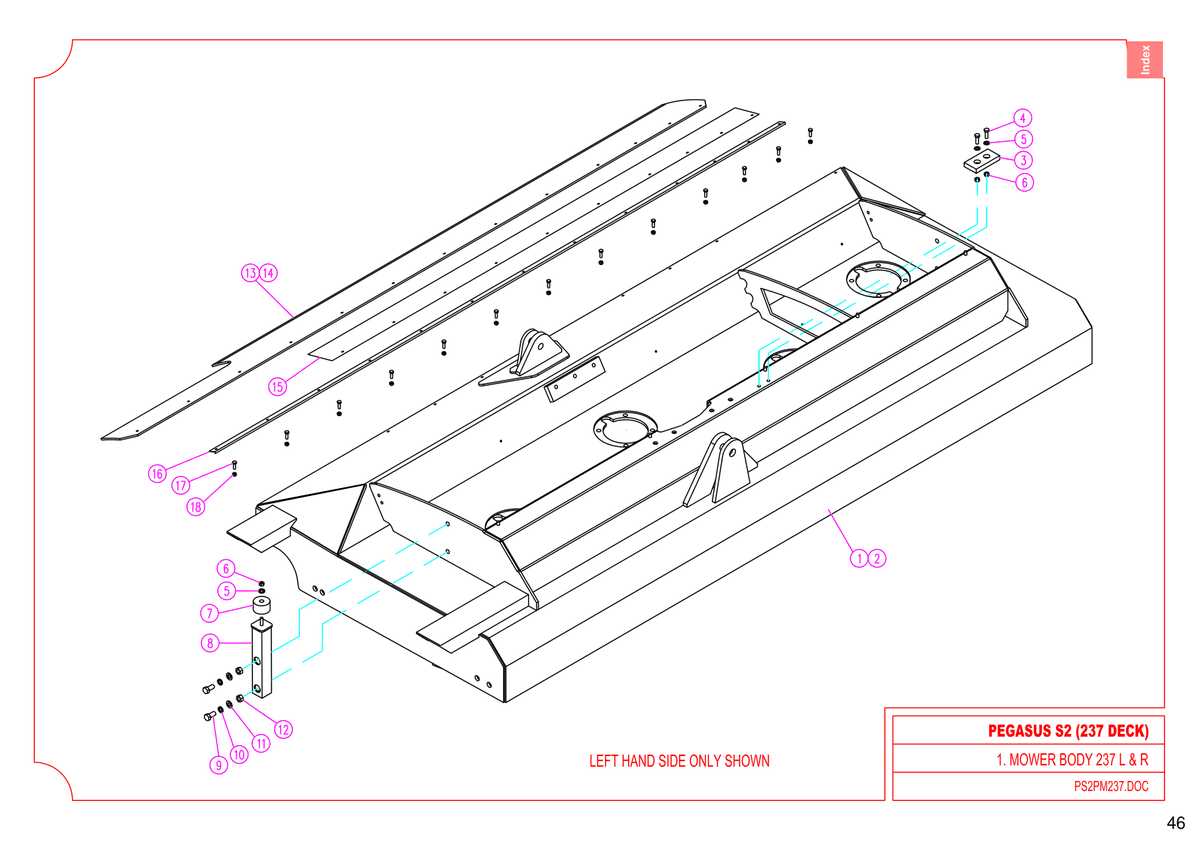

726 - Pegasus S2 - MOWER BODY 237 L & R

Pegasus S2 493, Pegasus S2 610

Grouped product items
No. Image Product Name Price Quantity
3 Pad [417-153-140] Pad 417-153-140
€20.47
4 Bolt - Hex Head - M8 x 25 - Trimax Specification [301-208-253] Bolt - Hex Head - M8 x 25 - Trimax Specification 301-208-253
€0.74
5 Washer - Flat [308-080-013] Washer - Flat 308-080-013
€0.37
6 Nut - Nyloc [307-208-053] Nut - Nyloc 307-208-053
€0.49
7 Buffer - Round [412-171-700] Buffer - Round 412-171-700
€14.40
8 Buffer Tower Weldment [418-840-860] Buffer Tower Weldment 418-840-860
€65.87
9 Bolt - Hex Head - M12 x 30 - Trimax Specification [301-212-303] Bolt - Hex Head - M12 x 30 - Trimax Specification 301-212-303
€1.46
10 Washer - Spring M12 - Trimax Specification - [308-120-043] Washer - Spring M12 - Trimax Specification - 308-120-043
€0.37
11 Washer - Flat M12 - Trimax Specification - [308-120-013] Washer - Flat M12 - Trimax Specification - 308-120-013
€0.37
12 Nut - Plain M12 - Trimax Specification - [307-212-013] Nut - Plain M12 - Trimax Specification - 307-212-013
€0.92
16 Clamp Strip - Safety Flap 237 [410-841-220] Clamp Strip - Safety Flap 237 410-841-220
€69.09
17 Bolt - Hex Head - M6 x 20 - Trimax Specification [301-206-203] Bolt - Hex Head - M6 x 20 - Trimax Specification 301-206-203
€0.49
18 Nut - Nyloc [307-206-053] Nut - Nyloc 307-206-053
€0.37
