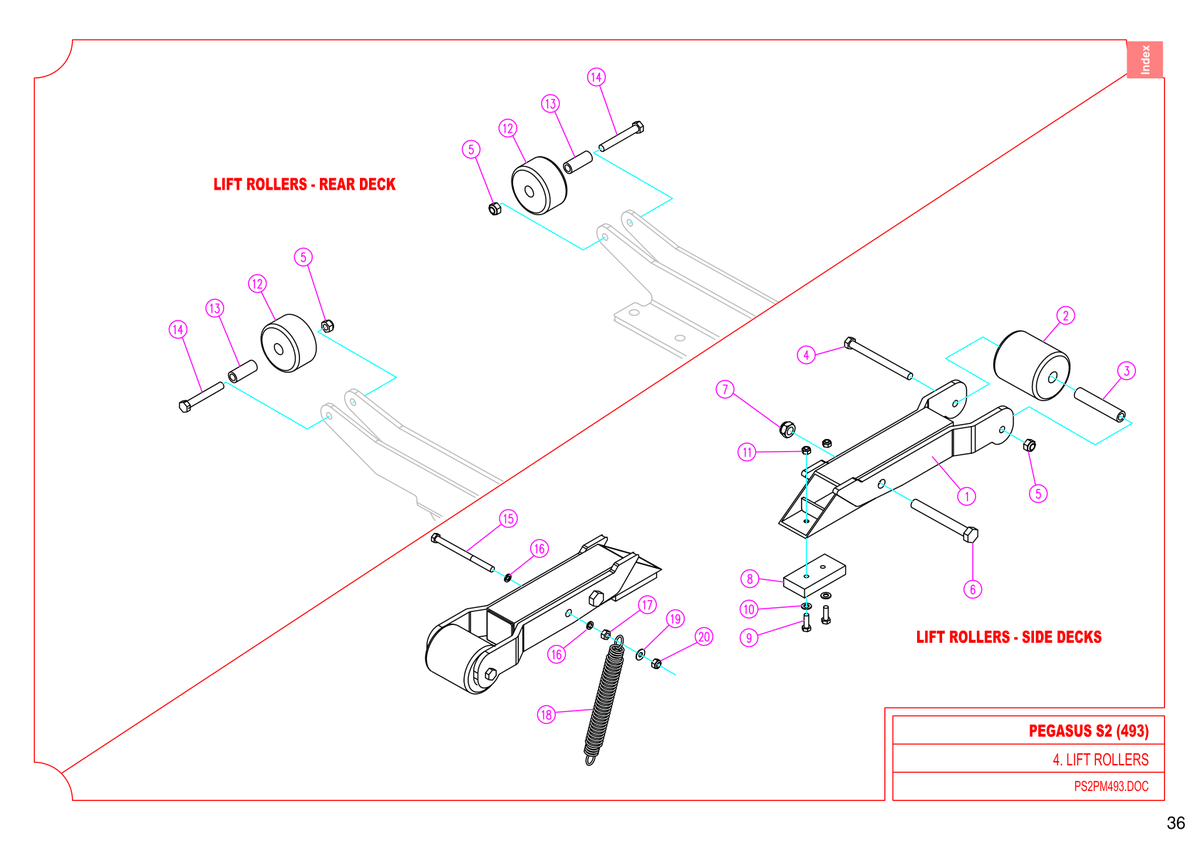

726 - Pegasus S2 - LIFT ROLLERS

Pegasus S2 493, Pegasus S2 610

Grouped product items
No. Image Product Name Price Quantity
1 Guide Roller Arm Weldment [418-844-100] Guide Roller Arm Weldment 418-844-100
€142.29
2 Guide Roller [418-844-120] Guide Roller 418-844-120
€55.18
3 Bush [402-844-130] Bush 402-844-130
€19.19
4 Bolt - Hex Head - M12 x 140 - Trimax Specification [301-612-143] Bolt - Hex Head - M12 x 140 - Trimax Specification 301-612-143
€6.19
5 Nut - Nyloc M12 - Trimax Specification - [307-212-053] Nut - Nyloc M12 - Trimax Specification - 307-212-053
€0.61
6 Bolt - Hex Head - M16 x 130 - Trimax Specification [301-616-133] Bolt - Hex Head - M16 x 130 - Trimax Specification 301-616-133
€6.74
7 Nut - Nyloc M16 - Trimax Specification - [307-216-053] Nut - Nyloc M16 - Trimax Specification - 307-216-053
€1.34
8 Buffer Pad [418-840-300] Buffer Pad 418-840-300
€20.47
9 Bolt - Hex Head - M8 x 30 - Trimax Specification [301-208-303] Bolt - Hex Head - M8 x 30 - Trimax Specification 301-208-303
€0.90
10 Washer - Flat [308-080-013] Washer - Flat 308-080-013
€0.37
11 Nut - Nyloc [307-208-053] Nut - Nyloc 307-208-053
€0.49
12 Guide Roller [418-860-200] Guide Roller 418-860-200
€41.16
13 Bush [402-860-210] Bush 402-860-210
€17.61
14 Bolt - Hex Head - M12 x 90 - Trimax Specification [301-212-903] Bolt - Hex Head - M12 x 90 - Trimax Specification 301-212-903
€3.34
15 Bolt - Hex Head - M10 x 120 - Trimax Specification [301-610-123] Bolt - Hex Head - M10 x 120 - Trimax Specification 301-610-123
€3.65
16 Washer - Spring [308-100-043] Washer - Spring 308-100-043
€0.37
17 Nut - Plain M10 - Trimax Specification - [307-210-013] Nut - Plain M10 - Trimax Specification - 307-210-013
€0.49
18 Spring - Tension - Side Deck [207-844-150] Spring - Tension - Side Deck 207-844-150
€17.86
19 Washer - Flat [308-100-013] Washer - Flat 308-100-013
€0.37
20 Nut - Nyloc [307-210-053] Nut - Nyloc 307-210-053
€0.61
