NOTES:

Part #	Number on image	Usage Notes
405-201-020	46	For internal parts and service information refer to your local dealer
406-340-890	50	For internal parts and service information refer to your local dealer
418-845-000	57	For internal parts and service information refer to your local dealer
416-842-000	63	For internal parts and service information refer to your local dealer
416-842-300	67	Tyre part number 416-842-320. For optional wide wheels refer to your local dealer
410-842-440	75	Hole spacings changed slightly from 01/09/2002
421-847-000	101	If wiring is required with light unit - specify left or right
460-000-234	124	Item 124 Includes items 97,98,99,100 & 123 as Kit.

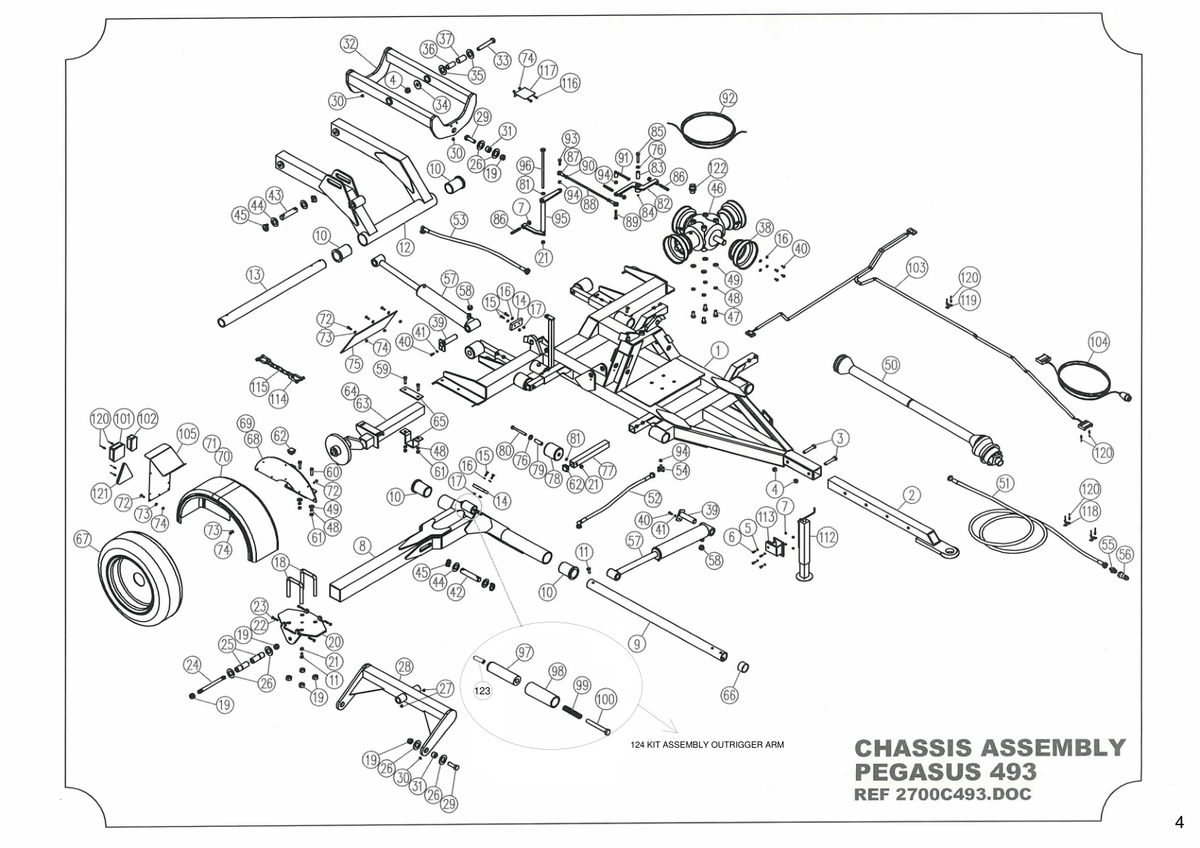

726 - Pegasus S1 - CHASSIS ASSEMBLY

Pegasus S1 493

Grouped product items
No.	Product Name	Price
2	Drawbar Weldment - Adjustable 418-840-020 More Info >	€329.19
3	Bolt - Hex Head - M16 x 110 - Trimax Specification 301-616-113 More Info >	€5.54
4	Nut - Nyloc M16 - Trimax Specification - 307-216-053 More Info >	€1.34
5	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	€0.37
6	Bolt - Hex Head - M12 x 35 - Trimax Specification 301-212-353 More Info >	€1.59
7	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	€0.92
9	Pin - Outrigger Hinge - Side 419-840-210 More Info >	€226.43
10	Bush 402-840-260 More Info >	€110.79
11	Bolt - Hex Head - M12 x 25 - Trimax Specification 301-212-253 More Info >	€1.34
13	Pin - Outrigger Hinge - Rear 419-840-200 More Info >	€175.44
14	Buffer Pad 418-840-300 More Info >	€20.47
15	Bolt - Hex Head - M8 x 25 - Trimax Specification 301-208-253 More Info >	€0.74
16	Washer - Flat 308-080-013 More Info >	€0.37
17	Nut - Nyloc 307-208-053 More Info >	€0.49
18	U-Bolt 215-840-400 More Info >	€39.58
19	Nut - Hex Nyloc M20 - Trimax Specification - 307-220-053 More Info >	€1.59
20	Pitch Bracket Weldment - Side Outrigger Assembly 418-840-060 More Info >	€394.28
21	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	€0.61
23	Nut - Plain 307-208-013 More Info >	€0.37
24	Pin - Pitch Pivot 419-840-450 More Info >	€38.47
25	Sleeve - Pitch Tube 402-000-010 More Info >	€152.80
26	Thrust Washer 402-840-520 More Info >	€53.91
27	Grease Nipple - Trimax Specification 208-442-620 More Info >	€2.39
28	Side Float Beam Weldment 418-840-070 More Info >	€873.83
29	Bolt - Hex Head - M20 x 75 - Trimax Specification 301-220-753 More Info >	€6.80
30	Grease Nipple - Trimax Specification 208-442-650 More Info >	€2.92
31	Hardened Bush 402-840-550 More Info >	€21.74
33	Bolt - Hex Head - M16 x 200 - Trimax Specification 301-616-203 More Info >	€8.62
34	Heavy Washer 402-840-560 More Info >	€20.22
35	Washer - Pitch Pivot Rear 402-840-570 More Info >	€15.36
36	Sleeve 402-840-580 More Info >	€21.25
37	Bush - Pitch Pivot Rear 402-840-590 More Info >	€37.27
38	Cone 410-440-400 More Info >	€18.42
39	Pin Weldment - Hydraulic Cylinder 419-845-500 More Info >	€39.03
40	Bolt - Hex Head - M8 x 16 - Trimax Specification 301-208-163 More Info >	€0.61
41	Washer - Spring 308-080-043 More Info >	€0.37
42	Pin - Side Deck Lift Upper - Hydraulic Cylinder 419-845-510 More Info >	€45.65
44	Heavy Washer - Lift Ram Pin - Sliding 402-845-530 More Info >	€3.53
45	Linch Pin - Ø7/16" x 1-3/4" 203-300-700 More Info >	€1.16
46	Gearbox i See notes section for usage notes on this part 405-201-020 More Info >	€1,297.01
47	Bolt - Hex Head - M16 x 35 - Trimax Specification 301-216-353 More Info >	€2.98
48	Washer - Spring 308-160-043 More Info >	€0.49
49	Washer - Heavy Flat 308-160-063 More Info >	€0.67
50	PTO Shaft Wide Angle i See notes section for usage notes on this part 406-340-890 More Info >	€1,030.22
51	Hose Assembly 409-448-400 More Info >	€162.69
52	Hose Assembly 409-448-420 More Info >	€78.19
53	Hose Assembly 409-448-430 More Info >	€82.32
54	Junction Assembly - Hydraulic 408-448-500 More Info >	€146.06
55	Nipple 408-448-280 More Info >	€14.09
56	Coupling 408-447-580 More Info >	€22.41
57	Hydraulic Cylinder i See notes section for usage notes on this part 418-845-000 More Info >	€1,062.91
58	Breather 408-448-480 More Info >	€23.86
59	Bolt - Hex Head - M16 x 45 - Trimax Specification 301-216-453 More Info >	€3.89
60	Bolt - Hex Head - M16 x 50 - Trimax Specification 301-216-503 More Info >	€3.22
61	Nut - Plain 307-216-013 More Info >	€1.16
62	Cap - Tube Insert Square 209-480-661 More Info >	€5.36
63	Assembly - Duratorque Right i See notes section for usage notes on this part 416-842-000 More Info >	€1,498.76
66	Plastic Cap - Round Ø63 x 36 209-840-320 More Info >	€5.90
67	Wheel Assembly - Road i See notes section for usage notes on this part 416-842-300 More Info >	€446.35
72	Bolt - Hex Head - M6 x 20 - Trimax Specification 301-206-203 More Info >	€0.49
73	Washer - Fender 108-041-613 More Info >	€0.54
74	Nut - Nyloc 307-206-053 More Info >	€0.37
75	Mud Flap - Axle i See notes section for usage notes on this part 410-842-440 More Info >	€43.83
76	Washer - Heavy Flat 308-120-063 More Info >	€0.37
78	Guide Roller 418-840-150 More Info >	€68.60
79	Bush - Guide Roller 402-840-160 More Info >	€25.26
80	Bolt - Hex Head - M12 x 120 - Trimax Specification 301-612-123 More Info >	€4.08
81	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	€0.37
82	Release Assembly 418-840-630 More Info >	€134.94
83	Bush 402-840-650 More Info >	€20.16
84	Grease Nipple - Trimax Specification 208-442-600 More Info >	€2.25
85	Bolt - Hex Head - M12 x 65 - Trimax Specification 301-212-653 More Info >	€2.74
86	Release Lever Pin Assembly 419-000-013 More Info >	€15.00
87	Bearing 401-840-800 More Info >	€23.99
89	Bolt - Hex Head - M10 x 50 - Trimax Specification 301-210-503 More Info >	€1.46
90	Nut - Plain M10 - Trimax Specification - 307-210-013 More Info >	€0.49
91	Release Rope Mount Weldment 418-840-680 More Info >	€48.81
92	Release Cord - Transport Lock 404-840-690	Price on Request
93	Bolt - Hex Head M10 x 40 - Trimax Specification - 305-210-403 More Info >	€2.19
94	Nut - Nyloc 307-210-053 More Info >	€0.61
97	Pin - Transport Lock 419-840-700 More Info >	€77.53
98	Bush 402-840-710 More Info >	€62.35
99	Spring - Compression 207-840-720 More Info >	€7.05
100	Bolt - Bolt - Hex Head - M8 x 90- Trimax Specification 301-208-906 More Info >	€5.78
101	Trailer Lights - LED - Mudguard LH/RH i See notes section for usage notes on this part 421-847-000 More Info >	€226.43
104	Wiring Loom Adaptor - Electrical Trailer 421-847-210 More Info >	€123.11
114	D-Shackle 214-446-280 More Info >	€5.47
115	Chain 901-070-001 More Info >	€13.20
116	Bolt - Hex Head - M6 x 30 - Trimax Specification 301-206-303 More Info >	€0.55
120	Blind Rivet 213-443-250 More Info >	€0.33
121	Reflector - Safety Triangle 421-847-050 More Info >	€9.78
122	Gearbox - Breather 405-207-207 More Info >	€20.47
123	Grub Screw 312-208-255 More Info >	€0.92
124	Kit Assembly - Outrigger Arm - Pegasus i See notes section for usage notes on this part 460-000-234 More Info >	€145.93
