NOTES:

Part #	Number on image	Usage Notes
301-220-857	5	Can also use bolt P/N 301-220-853 and apply threadlocker of medium bond strength
412-000-256	17	Height Indicator rods are available in two configurations, Metric & Imperial , order according to mower fitment
412-000-258	17	Height Indicator rods are available in two configurations, Metric & Imperial , order according to mower fitment

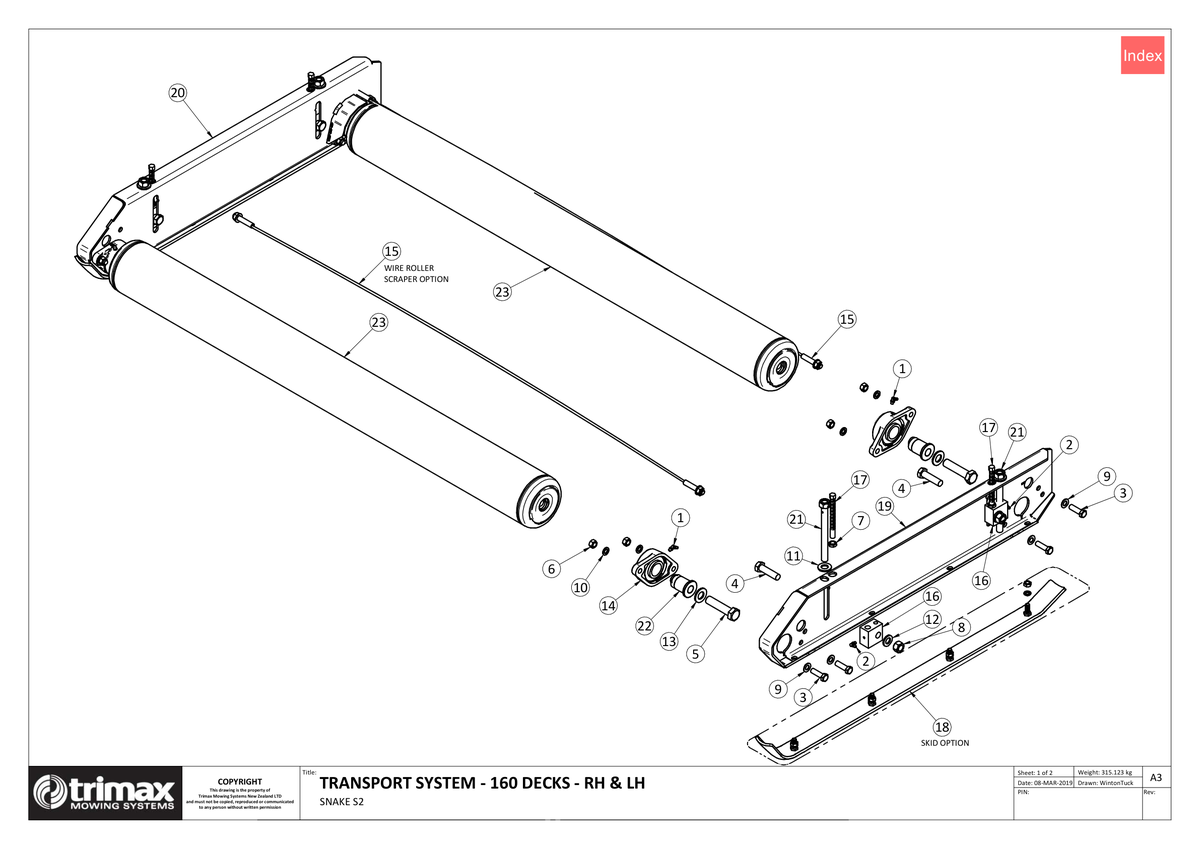

721 - Snake S2 - Transport System - 160 Decks

Snake S2 320, Snake S2 400

Grouped product items
No.	Product Name	Price
1	Grease Nipple - Trimax Specification 208-442-620 More Info >	€2.39
2	Grease Nipple - Trimax Specification 208-442-650 More Info >	€2.92
3	Bolt - Hex Head - M12 x 40 - Trimax Specification 301-212-403 More Info >	€1.77
4	Bolt - Hex Head - M16 x 60 - Trimax Specification 301-216-603 More Info >	€3.83
5	Bolt - Hex Head - M20 x 85 - Trimax Specification i See notes section for usage notes on this part 301-220-857 More Info >	€8.93
6	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	€0.92
7	Nut - Half 307-212-023 More Info >	€1.16
8	Nut - Plain 307-216-013 More Info >	€1.16
9	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	€0.37
10	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	€0.37
11	Washer - Heavy Flat 308-160-063 More Info >	€0.67
12	Washer - Wedge Lock M16 - Trimax Specification - 308-160-083 More Info >	€3.53
13	Washer - Heavy Flat M20 - Trimax Specification - 308-200-064 More Info >	€0.73
14	Roller Bearing Assembly - Trimax Specification 401-020-701 More Info >	€58.46
15	Scraper - Roller 160 404-000-131 More Info >	€36.56
16	Height Adjuster Block 412-000-255 More Info >	€48.45
17	Height Indicator - Metric i See notes section for usage notes on this part 412-000-256 More Info >	€32.67
17	Height Indicator - Imperial i See notes section for usage notes on this part 412-000-258 More Info >	€35.70
18	Skid Assembly - Anti-Bounce Wear Skid w/ M10 Nuts & Washers - 412-000-302 More Info >	€189.10
19	Side Channel Weldment - LocTek - LH 412-000-327 More Info >	€369.40
20	Side Channel Weldment - LocTek - RH 412-000-328 More Info >	€369.40
21	Set Screw - Hex Head - M16 x 180 - Trimax Specification 313-616-183 More Info >	€7.53
22	Roller Stub Sleeve - LocTek - 414-000-076 More Info >	€32.78
23	Roller Weldment - LocTek 160 414-000-100 More Info >	€543.59
