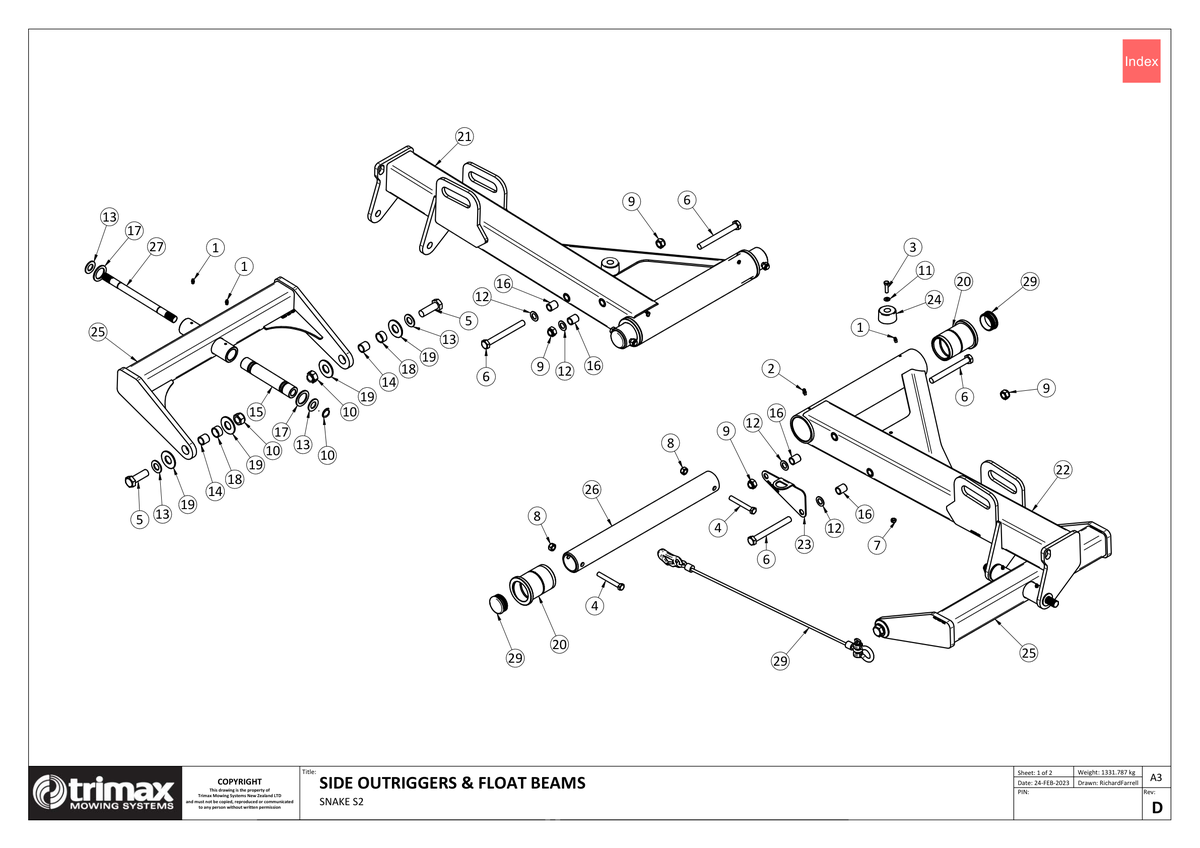

721 - Snake S2 - Side Outriggers and Float Beams

Snake S2 320, Snake S2 400

Grouped product items
No.	Product Name	Price
1	Grease Nipple - Trimax Specification 208-442-600 More Info >	€2.25
2	Grease Nipple - Trimax Specification 208-442-620 More Info >	€2.39
3	Bolt - Hex Head - M8 x 30 - Trimax Specification 301-208-303 More Info >	€0.90
4	Bolt - Hex Head - M12 x 90 - Trimax Specification 301-212-903 More Info >	€3.34
5	Bolt 301-220-603 More Info >	€5.96
6	Bolt - Hex Head - M16 x 150 - Trimax Specification 301-616-153 More Info >	€7.05
7	Nut - Nyloc 307-208-056 More Info >	€0.61
8	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	€0.61
9	Nut - Nyloc M16 - Trimax Specification - 307-216-053 More Info >	€1.34
10	Nut - Hex Nyloc M20 - Trimax Specification - 307-220-053 More Info >	€1.59
11	Washer - Flat 308-080-016 More Info >	€0.37
12	Washer - Flat 308-160-013 More Info >	€2.37
13	Washer - Flat 308-200-013 More Info >	€0.98
14	Inner Ring - Bearing 401-000-020 More Info >	€15.43
15	Sleeve - Pitch Tube 402-000-010 More Info >	€152.80
16	Bush - Lock Inner 402-000-076 More Info >	€26.19
17	Thrust Washer 402-000-081 More Info >	€17.06
18	Bush - Composite Pivot Bush 402-000-093 More Info >	€24.89
19	Thrust Washer 402-000-105 More Info >	€14.09
20	Bush 402-840-260 More Info >	€110.79
21	Outrigger Arm Weldment - RH 418-000-514 More Info >	€805.96
22	Outrigger Arm Weldment - LH 418-000-515 More Info >	€805.96
23	Attachment Bracket 418-000-535 More Info >	€19.31
24	Buffer Pad 418-000-537 More Info >	€15.79
25	Side Float Beam Weldment - Snake S2 418-000-688 More Info >	€294.65
26	Pin - Outrigger Hinge - Side/Rear 419-000-037 More Info >	€106.66
27	Pin - Pitch Pivot 419-000-069 More Info >	€60.74
28	End Cap - Hinge Tube End Insert 450-000-119 More Info >	€5.47
29	Safety Rope Assembly 506-000-079 More Info >	€50.63
