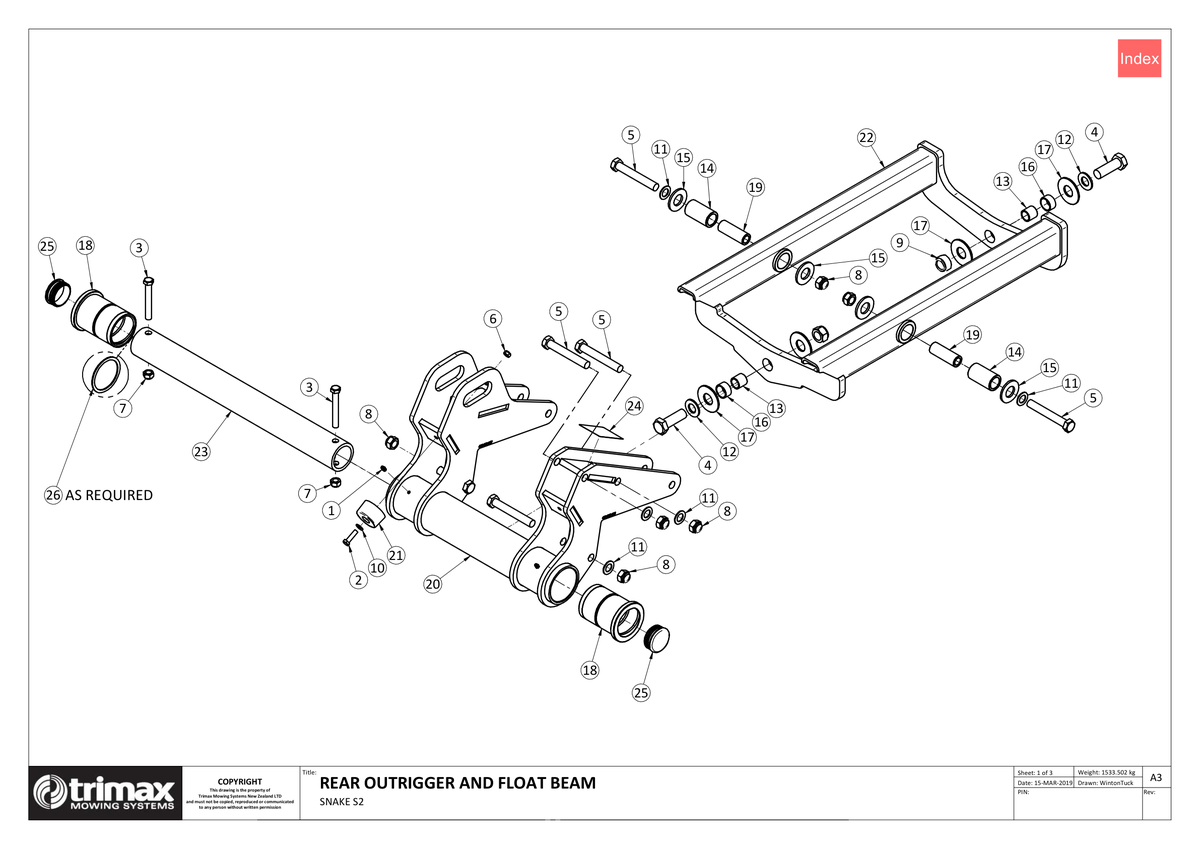

721 - Snake S2 - Rear Outrigger and Float Beam

Snake S2 320, Snake S2 400

Grouped product items
No.	Product Name	Price
1	Grease Nipple - Trimax Specification 208-442-600 More Info >	€2.25
2	Bolt - Hex Head - M8 x 30 - Trimax Specification 301-208-303 More Info >	€0.90
3	Bolt - Hex Head - M12 x 90 - Trimax Specification 301-212-903 More Info >	€3.34
4	Bolt 301-220-603 More Info >	€5.96
5	Bolt - Hex Head - M16 x 110 - Trimax Specification 301-616-113 More Info >	€5.54
6	Nut - Nyloc 307-208-056 More Info >	€0.61
7	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	€0.61
8	Nut - Nyloc M16 - Trimax Specification - 307-216-053 More Info >	€1.34
9	Nut - Hex Nyloc M20 - Trimax Specification - 307-220-053 More Info >	€1.59
10	Washer - Flat 308-080-016 More Info >	€0.37
11	Washer - Flat 308-160-013 More Info >	€2.37
12	Washer - Flat 308-200-013 More Info >	€0.98
13	Inner Ring - Bearing 401-000-020 More Info >	€15.43
14	Bush 402-000-079 More Info >	€41.65
15	Thrust Washer 402-000-080 More Info >	€15.49
16	Bush - Composite Pivot Bush 402-000-093 More Info >	€24.89
17	Thrust Washer 402-000-105 More Info >	€14.09
18	Bush 402-840-260 More Info >	€110.79
19	Sleeve 402-840-580 More Info >	€21.25
20	Outrigger Arm Weldment 418-000-516 More Info >	€800.61
21	Buffer Pad 418-000-537 More Info >	€15.79
22	Rear Float Beam Weldment - Snake S2 418-000-687 More Info >	€339.39
23	Pin - Outrigger Hinge - Side/Rear 419-000-037 More Info >	€106.66
24	Decal - Wear Pad - Rectangle 424-101-816 More Info >	€6.08
25	End Cap - Hinge Tube End Insert 450-000-119 More Info >	€5.47
26	Shim 418-000-001 More Info >	€24.52
