NOTES:

Part #	Number on image	Usage Notes
421-000-094	55	Use part number 421-000-093 Actuator Assembly C/W wiring loom & Superseal plug Use part number 421-000-093 Actuator Assembly C/W wiring loom & Superseal plug Use part number 421-000-093 Actuator Assembly C/W wiring loom & Superseal plug

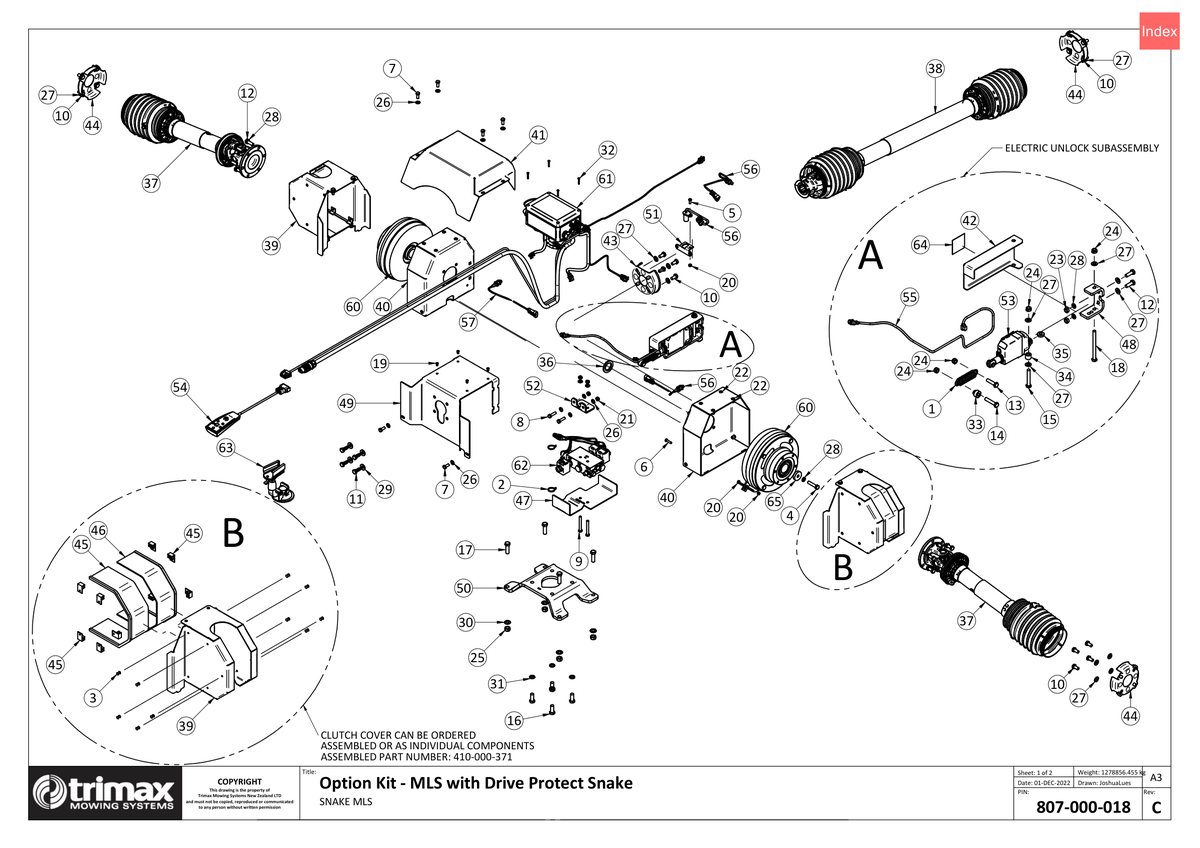

721 - Snake S2 - MLS with Drive Protect Option

Snake S2 320, Snake S2 400

Grouped product items
No.	Product Name	Price
1	Spring - Tension 207-000-008 More Info >	€55.95
2	Cable tie 210-900-014 More Info >	Price on Request
3	Blind Rivet 213-443-250 More Info >	€0.33
4	Bolt 301-110-453 More Info >	€2.45
5	Bolt - Hex Head - M6 x 16 - Trimax Specification 301-206-163 More Info >	€0.43
6	Bolt - Hex Head - M6 x 25 - Trimax Specification 301-206-253 More Info >	€0.49
7	Bolt - Hex Head - M8 x 20 - Trimax Specification 301-208-203 More Info >	€0.67
8	Bolt - Hex Head - M8 x 30 - Trimax Specification 301-208-303 More Info >	€0.90
9	Bolt - Hex Head - M8 x 65 - Trimax Specification 301-208-653 More Info >	€1.30
10	Bolt - Hex Head - M10 x 20 - Trimax Specification 301-210-203 More Info >	€0.67
11	Bolt - Hex Head - M10 x 25 - Trimax Specification 301-210-253 More Info >	€0.85
12	Bolt - Hex Head - M10 x 30 - Trimax Specification 301-210-303 More Info >	€0.92
13	Bolt - Hex Head - M10 x 40 - Trimax Specification 301-210-403 More Info >	€1.14
14	Bolt - Hex Head - M10 x 50 - Trimax Specification 301-210-503 More Info >	€1.46
15	Bolt - Hex Head - M10 x 60 - Trimax Specification 301-210-603 More Info >	€1.55
16	Bolt - Hex Head - M12 x 30 - Trimax Specification 301-212-303 More Info >	€1.46
17	Bolt - Hex Head - M12 x 40 - Trimax Specification 301-212-403 More Info >	€1.77
18	Bolt - Hex Head - M10 x 120 - Trimax Specification 301-610-123 More Info >	€3.65
19	Nut - Rivnut M4 ZP 307-204-413 More Info >	Price on Request
20	Nut - Nyloc 307-206-053 More Info >	€0.37
21	Nut - Nyloc 307-208-056 More Info >	€0.61
22	Nut - Rivnut M8 ZP 307-208-413 More Info >	Price on Request
23	Nut - Plain M10 - Trimax Specification - 307-210-013 More Info >	€0.49
24	Nut - Nyloc 307-210-053 More Info >	€0.61
25	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	€0.61
26	Washer - Flat 308-080-013 More Info >	€0.37
27	Washer - Flat 308-100-013 More Info >	€0.37
28	Washer - Spring 308-100-043 More Info >	€0.37
29	Washer - Heavy Flat 308-100-063 More Info >	€0.37
30	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	€0.37
31	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	€0.37
32	Pan Head Machine Screw - Philips M4 x 25 SS 304 315-204-256 More Info >	Price on Request
33	Bush 402-000-097 More Info >	€13.48
34	Bush - Lock Actuator 402-000-106 More Info >	€15.24
35	Bush - Lock Actuator 402-000-107 More Info >	€13.18
36	Spacer - 6 Spline Spacer Washer 402-000-113 More Info >	€18.07
37	PTO Shaft Assembly - Splined 400mm 6 Bolt Flange 406-000-038 More Info >	€436.03
38	PTO Shaft Assembly - Splined 406-000-054 More Info >	€509.94
39	Weldment - Clutch Cover - Snake MLS 410-000-363 More Info >	€334.70
40	Folding - Clutch Cover Back - Snake MLS 410-000-364 More Info >	€391.17
41	Folding - Enclosure Cover - Snake MLS 410-000-365 More Info >	€101.93
42	Folding - Actuator Cover - Snake 410-000-366 More Info >	€22.69
43	Mounting Plate - 125mm Flex Cone incl Sensor Cutout 410-000-367 More Info >	€18.28
44	Mounting Plate - 125mm Flex Cone (Bolt Cutouts) 410-000-368 More Info >	€18.28
45	Extrusion - Brush Mounting 410-000-369 More Info >	€1.79
46	Brush - Clutch Cover 410-000-370 More Info >	€22.26
47	Mount Bracket Folding 418-000-398 More Info >	€34.77
48	Mount Bracket Folding - Unlock Actuator - Snake 418-000-784 More Info >	€15.17
49	Folding - Enclosure Mount - Snake MLS 418-000-785 More Info >	€63.68
50	Folding - Gearbox Mount - Snake 418-000-786 More Info >	€28.17
51	Folding - PTO Sensor Mount - Snake MLS 418-000-787 More Info >	€7.47
52	Mount Bracket Folding - Valve Bank - Snake 418-000-788 More Info >	€11.31
54	Cab Controller Assembly - MLS with Drive Protect 421-000-090 More Info >	€263.40
55	Actuator Cable i See notes section for usage notes on this part 421-000-094 More Info >	€59.42
56	Sensor & Cable Assembly - PTO Sensor - MLS 421-000-117 More Info >	€114.85
57	Sensor & Cable Assembly - Prox Sensor - MLS 421-000-118 More Info >	€114.85
60	Clutch & Plug Assembly - MLS 421-000-138 More Info >	€1,856.12
62	Valve bank and superseal plug assembly - Rear valve NC for Snake MLS 421-000-168 More Info >	€2,587.37
63	Cab Controller Mount Assembly - MLS 421-000-172 More Info >	€121.96
64	Decal - Instruction - No Water Blasting 424-000-163 More Info >	Price on Request
65	Retaining Washer - Electric Clutch 450-844-160 More Info >	€15.49
