NOTES:

Part #	Number on image	Usage Notes
402-000-078	23	Use of Taper Lock Pulleys and bushes introduced on 08/2022, used from Serial number on wards: NZ: 621-400-205-1045802 GB: 721-400-200-3002332 USA: 621-400-200-2000547 For Biloc pulley and bush part numbers please look up Deck drive System - 160 listing
402-000-083	24	Use of Taper Lock Pulleys and bushes introduced on 08/2022, used from Serial number on wards: NZ: 621-400-205-1045802 GB: 721-400-200-3002332 USA: 621-400-200-2000547 For Biloc pulley and bush part numbers please look up Deck drive System - 160 listing
402-000-090	25	Use of Taper Lock Pulleys and bushes introduced on 08/2022, used from Serial number on wards: NZ: 621-400-205-1045802 GB: 721-400-200-3002332 USA: 621-400-200-2000547 For Biloc pulley and bush part numbers please look up Deck drive System - 160 listing
403-000-081	27	Use of Taper Lock Pulleys and bushes introduced on 08/2022, used from Serial number on wards: NZ: 621-400-205-1045802 GB: 721-400-200-3002332 USA: 621-400-200-2000547 For Biloc pulley and bush part numbers please look up Deck drive System - 160 listing
403-000-083	28	Use of Taper Lock Pulleys and bushes introduced on 08/2022, used from Serial number on wards: NZ: 621-400-205-1045802 GB: 721-400-200-3002332 USA: 621-400-200-2000547 For Biloc pulley and bush part numbers please look up Deck drive System - 160 listing
403-361-140	33	Use of Taper Lock Pulleys and bushes introduced on 08/2022, used from Serial number on wards: NZ: 621-400-205-1045802 GB: 721-400-200-3002332 USA: 621-400-200-2000547 For Biloc pulley and bush part numbers please look up Deck drive System - 160 listing

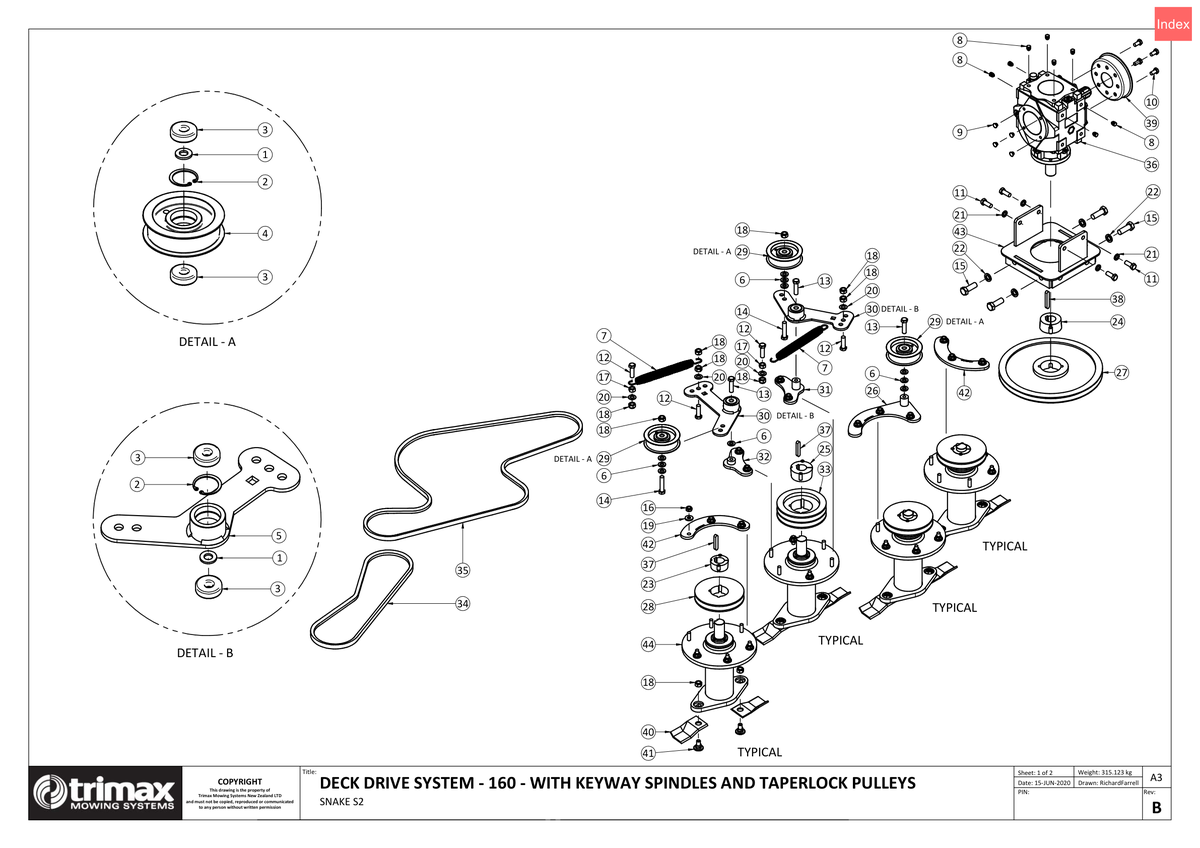

721 - Snake S2 - Deck Drive System - 160 - Taper Lock Pulley System

Snake S2 320, Snake S2 400

Grouped product items
No.	Product Name	Price
1	Washer - Hardened 108-071-513 More Info >	€1.95
2	Circlip/Snap Ring - Internal 204-820-371 More Info >	€1.61
3	Bearing - Trimax Specification - 401-021-900 More Info >	€11.85
4	Pulley - Back Tensioned 403-000-089 More Info >	€59.20
5	Arm Weldment - Idler Arm 403-000-102 More Info >	€106.60
7	Spring - Deck Belt Tensioner - Trimax Specification - 207-000-009 More Info >	€14.29
8	Blanking Plug - M12 209-900-012 More Info >	€1.04
9	Blanking Plug 209-900-014 More Info >	€2.98
10	Bolt - Hex Head - M10 x 20 - Trimax Specification 301-210-203 More Info >	€0.67
11	Bolt - Hex Head - M12 x 30 - Trimax Specification 301-212-303 More Info >	€1.46
12	Bolt - Hex Head - M12 x 40 - Trimax Specification 301-212-403 More Info >	€1.77
13	Bolt - Hex Head - M12 x 45 - Trimax Specification 301-212-453 More Info >	€1.89
14	Bolt - Hex Head - M12 x 55 - Trimax Specification 301-212-553 More Info >	€2.61
15	Bolt - Hex Head - M16 x 45 - Trimax Specification 301-216-453 More Info >	€3.89
16	Nut - Nyloc 307-210-053 More Info >	€0.61
17	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	€0.92
18	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	€0.61
19	Washer - Heavy Flat 308-100-063 More Info >	€0.37
20	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	€0.37
21	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	€0.37
22	Washer - Spring 308-160-043 More Info >	€0.49
23	Bush - Taper Lock i See notes section for usage notes on this part 402-000-078 More Info >	€15.49
24	Bush i See notes section for usage notes on this part 402-000-083 More Info >	€18.76
25	Bush - Taper Lock i See notes section for usage notes on this part 402-000-090 More Info >	€19.80
26	Idler Tower 403-000-076 More Info >	€64.28
27	Pulley i See notes section for usage notes on this part 403-000-081 More Info >	€168.94
28	Pulley - Taper Lock i See notes section for usage notes on this part 403-000-083 More Info >	€58.34
29	Pulley Assembly 403-000-091 More Info >	€89.27
30	Idler Arm Assembly - Arm + Bearing 403-000-103 More Info >	€159.89
31	Idler Base Weldment - Short 403-000-110 More Info >	€51.91
32	Idler Base Weldment - Very Short 403-000-111 More Info >	€111.40
33	Pulley - Taper Lock i See notes section for usage notes on this part 403-361-140 More Info >	€61.49
34	Vee Belt - Trimax Specification - 404-040-495 More Info >	€32.30
35	Vee Belt - Trimax Specification 404-040-962 More Info >	€48.45
36	Gearbox 405-000-015 More Info >	€672.25
38	Key - Gearbox 405-207-154 More Info >	€9.17
39	Mounting Plate 410-000-258 More Info >	€32.30
40	Blade - LazerBlade Uplift - Uplift Profile Rotary Cutting Blade 411-160-842 More Info >	€10.45
41	Blade Bolt - With M12 Nyloc Nut - LazerBlade and NexaBlade Mounting 411-322-050 More Info >	€7.16
42	Plate 417-001-002 More Info >	€40.07
43	Gearbox Mount Weldment 417-001-364 More Info >	€219.08
44	Spindle Assembly - With Keyway - Snake S2 504-000-168 More Info >	€715.45
