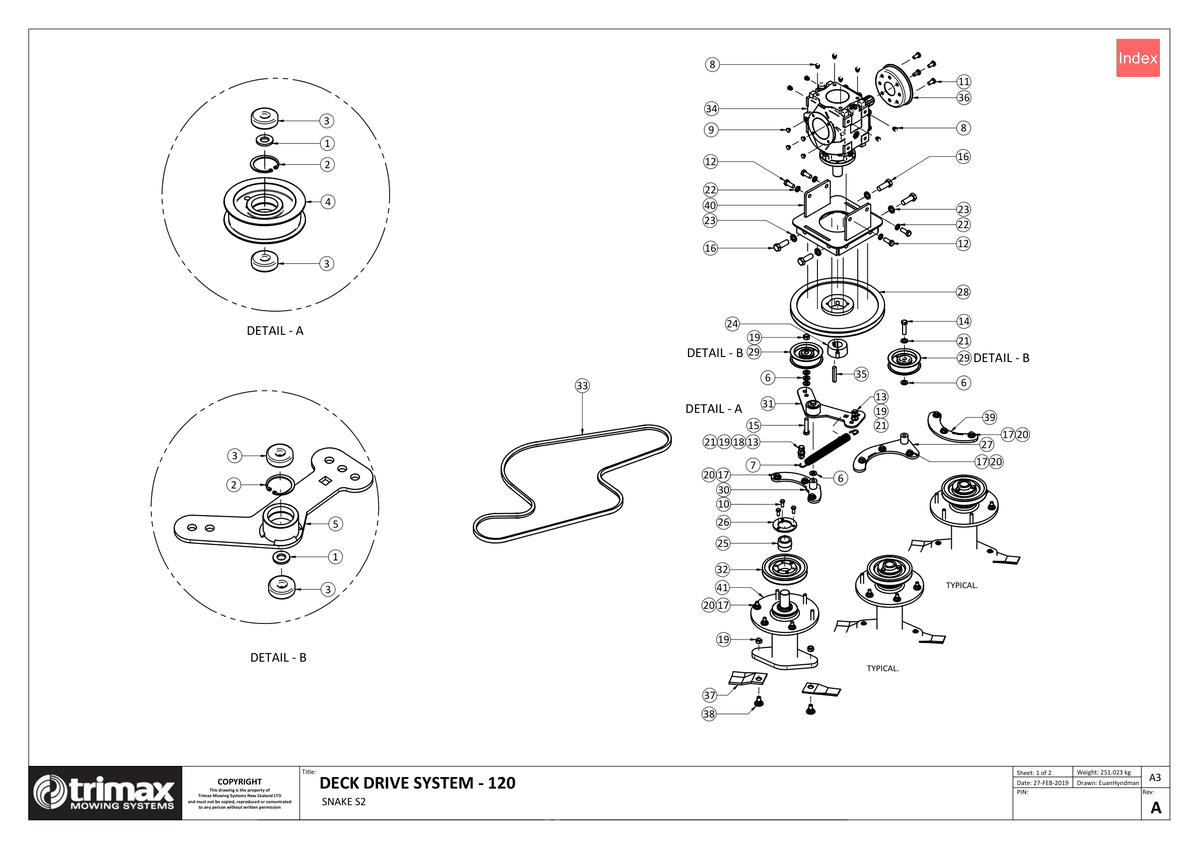

721 - Snake S2 - Deck Drive System - 120

Snake S2 320, Snake S2 400

Grouped product items
No.	Product Name	Price
1	Washer - Hardened 108-071-513 More Info >	€1.95
2	Circlip/Snap Ring - Internal 204-820-371 More Info >	€1.61
3	Bearing 401-021-900 More Info >	€11.85
5	Arm Weldment - Idler Arm 403-000-102 More Info >	€106.60
7	Spring - Tension 207-000-009 More Info >	€14.29
8	Blanking Plug 209-900-012 More Info >	€1.04
9	Blanking Plug 209-900-014 More Info >	€2.98
10	Bolt 301-208-203 More Info >	€0.67
11	Bolt 301-210-203 More Info >	€0.67
12	Bolt 301-212-303 More Info >	€1.46
13	Bolt 301-212-403 More Info >	€1.77
14	Bolt 301-212-453 More Info >	€1.89
15	Bolt 301-212-553 More Info >	€2.61
16	Bolt 301-216-453 More Info >	€3.89
17	Nut - Nyloc 307-210-053 More Info >	€0.61
18	Nut - Plain 307-212-013 More Info >	€0.92
19	Nut - Nyloc 307-212-053 More Info >	€0.61
20	Washer - Heavy Flat 308-100-063 More Info >	€0.37
21	Washer - Flat 308-120-013 More Info >	€0.37
22	Washer - Spring 308-120-043 More Info >	€0.37
23	Washer 308-160-043 More Info >	€0.49
24	Bush 402-000-083 More Info >	€18.76
25	Bush 402-060-320 More Info >	€23.21
26	Retainer Ring 402-060-450 More Info >	€7.66
27	Idler Tower 403-000-076 More Info >	€64.28
28	Pulley 403-000-081 More Info >	€168.94
29	Pulley Assembly 403-000-091 More Info >	€89.27
30	Base Weldment - Idler Arm 403-000-101 More Info >	€51.91
31	Idler Arm Assembly - Arm + Bearing 403-000-103 More Info >	€159.89
32	Pulley 403-360-300 More Info >	€40.47
33	Vee Belt 404-040-962 More Info >	€48.45
34	Gearbox 405-000-015 More Info >	€672.25
35	Key - Gearbox 405-207-154 More Info >	€9.17
36	Mounting Plate 410-000-258 More Info >	€32.30
37	Blades - Lazerbladez - Uplift 411-160-842 More Info >	€10.45
38	Blade Bolt - Lazer and Nexablades - With Nyloc Nut - Blade Mounting 411-322-050 More Info >	€7.16
39	Plate 417-001-002 More Info >	€40.07
40	Gearbox Mount Weldment 417-001-364 More Info >	€219.08
41	Spindle Assembly - Snake S2 504-000-098 More Info >	€715.45
