NOTES:

Part # Number on image Usage Notes
301-616-123 13
  • Hub and Stub Complete assembly available P/N 416-000-001
  • Hub and Stub Complete assembly available P/N 416-000-001
  • Hub and Stub Complete assembly available P/N 416-000-001
404-000-125 30
  • Item 24 is availble only on standard models without Remote Unlock
  • Item 24 is availble only on standard models without Remote Unlock
  • Item 24 is availble only on standard models without Remote Unlock
416-000-002 35
  • Hub with 5 Stud assembly available P/N 416-860-460
  • Hub with 5 Stud assembly available P/N 416-860-460
  • Hub with 5 Stud assembly available P/N 416-860-460
416-000-080 37
  • Turf rim and tyre assembly available P/N 416-000-074 , Road wheel assembly use P/N 416-000-100
  • Turf rim and tyre assembly available P/N 416-000-074 , Road wheel assembly use P/N 416-000-100
  • Turf rim and tyre assembly available P/N 416-000-074 , Road wheel assembly use P/N 416-000-100
416-842-880 39
  • Turf rim and tyre assembly available P/N 416-000-074 , Road wheel assembly use P/N 416-000-100
  • Turf rim and tyre assembly available P/N 416-000-074 , Road wheel assembly use P/N 416-000-100
  • Turf rim and tyre assembly available P/N 416-000-074 , Road wheel assembly use P/N 416-000-100
418-000-217 42
  • Handle for parking jack available Use part number 418-000-631
  • Handle for parking jack available Use part number 418-000-631
  • Handle for parking jack available Use part number 418-000-631
418-000-682 52
  • Use of Spacer plate (418-000-769) implemented from Serial number onwards:721-320-201-0020,721-400-201-0013 for NZ and 722-320-200-0043 ,722-400-200-0017 for UK, Also available as a Kit, part number 450-000-130 - Stub Axle Flush Mount Kit Snake S2 Changes were made to the chassis axle mount plate thickness as a result the spacer plate (418-000-769) are no longer required from serial number onw NZM : 621-320-200-1005507 ,621-320-205-1002041 , 621-400-200-1005915 , 621-400-205-1004281 / GBM : 621-320-200-1002402 , 621-400-200-1
  • Use of Spacer plate (418-000-769) implemented from Serial number onwards:721-320-201-0020,721-400-201-0013 for NZ and 722-320-200-0043 ,722-400-200-0017 for UK, Also available as a Kit, part number 450-000-130 - Stub Axle Flush Mount Kit Snake S2 Changes were made to the chassis axle mount plate thickness as a result the spacer plate (418-000-769) are no longer required from serial number onw NZM : 621-320-200-1005507 ,621-320-205-1002041 , 621-400-200-1005915 , 621-400-205-1004281 / GBM : 621-320-200-1002402 , 621-400-200-1
  • Use of Spacer plate (418-000-769) implemented from Serial number onwards:721-320-201-0020,721-400-201-0013 for NZ and 722-320-200-0043 ,722-400-200-0017 for UK, Also available as a Kit, part number 450-000-130 - Stub Axle Flush Mount Kit Snake S2 Changes were made to the chassis axle mount plate thickness as a result the spacer plate (418-000-769) are no longer required from serial number onw NZM : 621-320-200-1005507 ,621-320-205-1002041 , 621-400-200-1005915 , 621-400-205-1004281 / GBM : 621-320-200-1002402 , 621-400-200-1

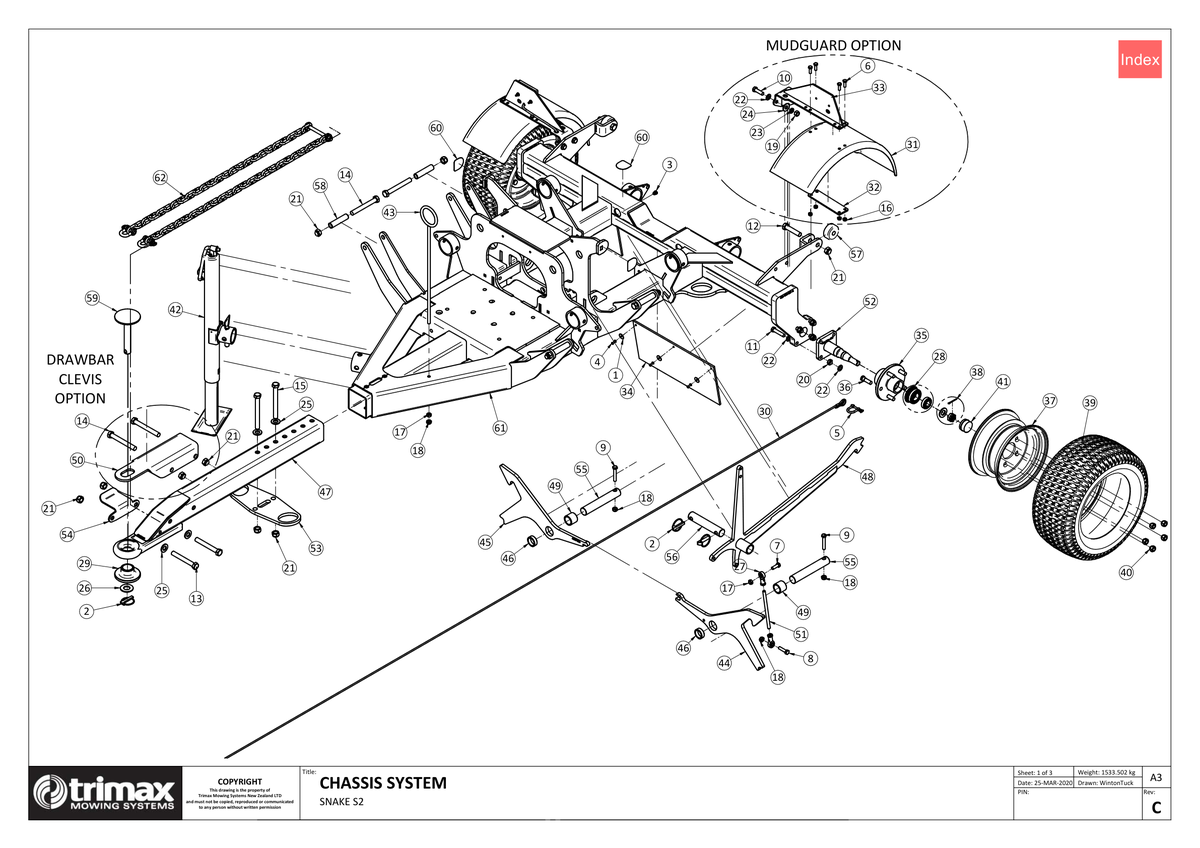

721 - Snake S2 - Chassis System

Snake S2 320, Snake S2 400

Grouped product items
No. Image Product Name Price Quantity
1 Washer - Fender [108-031-413] Washer - Fender 108-031-413
€0.37
2 Linch Pin - Ø7/16" x 1-3/4" [203-300-700] Linch Pin - Ø7/16" x 1-3/4" 203-300-700
€1.16
3 Blanking Plug - M12 [209-900-012] Blanking Plug - M12 209-900-012
€1.04
4 Blind Rivet [213-000-001] Blind Rivet 213-000-001
€0.29
5 Bow Shackle - Stainless - Ø6mm [214-446-250] Bow Shackle - Stainless - Ø6mm 214-446-250
€7.29
6 Bolt - Hex Head - M8 x 25 - Trimax Specification [301-208-253] Bolt - Hex Head - M8 x 25 - Trimax Specification 301-208-253
€0.74
7 Bolt - Hex Head - M10 x 30 - Trimax Specification [301-210-303] Bolt - Hex Head - M10 x 30 - Trimax Specification 301-210-303
€0.92
8 Bolt - Hex Head - M10 x 40 - Trimax Specification [301-210-403] Bolt - Hex Head - M10 x 40 - Trimax Specification 301-210-403
€1.14
9 Bolt - Hex Head - M10 x 60 - Trimax Specification [301-210-603] Bolt - Hex Head - M10 x 60 - Trimax Specification 301-210-603
€1.55
10 Bolt - Hex Head - M12 x 40 - Trimax Specification [301-212-403] Bolt - Hex Head - M12 x 40 - Trimax Specification 301-212-403
€1.77
11 Bolt - Hex Head - M12 x 55 - Trimax Specification [301-212-553] Bolt - Hex Head - M12 x 55 - Trimax Specification 301-212-553
€2.61
12 Bolt - Hex Head - M16 x 75 - Trimax Specification [301-216-753] Bolt - Hex Head - M16 x 75 - Trimax Specification 301-216-753
€4.49
13 Bolt - Hex Head - M16 x 120 - Trimax Specification [301-616-123] Bolt - Hex Head - M16 x 120 - Trimax Specification i See notes section for usage notes on this part 301-616-123
€5.72
14 Bolt - Hex Head - M16 x 130 - Trimax Specification [301-616-133] Bolt - Hex Head - M16 x 130 - Trimax Specification 301-616-133
€6.74
15 Bolt - Hex Head - M16 x 150 - Trimax Specification [301-616-153] Bolt - Hex Head - M16 x 150 - Trimax Specification 301-616-153
€7.05
16 Nut - Nyloc [307-208-056] Nut - Nyloc 307-208-056
€0.61
17 Nut - Plain M10 - Trimax Specification - [307-210-013] Nut - Plain M10 - Trimax Specification - 307-210-013
€0.49
18 Nut - Nyloc [307-210-053] Nut - Nyloc 307-210-053
€0.61
19 Nut - Plain M12 - Trimax Specification - [307-212-013] Nut - Plain M12 - Trimax Specification - 307-212-013
€0.92
20 Nut - Nyloc M12 - Trimax Specification - [307-212-053] Nut - Nyloc M12 - Trimax Specification - 307-212-053
€0.61
21 Nut - Nyloc M16 - Trimax Specification - [307-216-053] Nut - Nyloc M16 - Trimax Specification - 307-216-053
€1.34
22 Washer - Flat M12 - Trimax Specification - [308-120-013] Washer - Flat M12 - Trimax Specification - 308-120-013
€0.37
23 Washer - Spring M12 - Trimax Specification - [308-120-043] Washer - Spring M12 - Trimax Specification - 308-120-043
€0.37
24 Washer - Heavy Flat [308-120-063] Washer - Heavy Flat 308-120-063
€0.37
25 Washer - Heavy Flat [308-160-063] Washer - Heavy Flat 308-160-063
€0.67
26 Washer - Heavy Flat [308-270-063] Washer - Heavy Flat 308-270-063
€1.65
27 Bearing [401-840-800] Bearing 401-840-800
€23.99
28 Wheel Bearing/Seal Kit [416-860-470] Wheel Bearing/Seal Kit 416-860-470
€86.02
29 Wear Bush - Tow Eye [402-840-130] Wear Bush - Tow Eye 402-840-130
€46.98
30 Release Rope Assembly 4.5m [404-000-125] Release Rope Assembly 4.5m i See notes section for usage notes on this part 404-000-125
€39.64
31 Mudguard [410-000-245] Mudguard 410-000-245
€157.23
32 Clamp Plate [410-000-246] Clamp Plate 410-000-246
€24.29
33 Mount [410-000-247] Mount 410-000-247
€64.72
34 Debris Flap [410-000-259] Debris Flap 410-000-259
€24.83
35 Hub 5 Stud [416-000-002] Hub 5 Stud i See notes section for usage notes on this part 416-000-002
Price on Request
37 Wheel Rim 5 Stud [416-000-080] Wheel Rim 5 Stud i See notes section for usage notes on this part 416-000-080
€184.49
38 Nut Kit [416-842-190] Nut Kit 416-842-190
€11.85
39 Tyre - Turf [416-842-880] Tyre - Turf i See notes section for usage notes on this part 416-842-880
€220.36
40 Wheel Nut [416-842-890] Wheel Nut 416-842-890
€1.95
41 Grease Cap [416-860-490] Grease Cap 416-860-490
€13.48
42 Parking Jack Assembly [418-000-217] Parking Jack Assembly i See notes section for usage notes on this part 418-000-217
€323.12
43 Guide [418-000-466] Guide 418-000-466
€34.00
44 Hook [418-000-467] Hook 418-000-467
€148.30
45 Hook [418-000-469] Hook 418-000-469
€148.30
46 Bush [418-000-470] Bush 418-000-470
€23.99
47 Drawbar Weldment [418-000-497] Drawbar Weldment 418-000-497
€547.31
48 Lock Arm Weldment - Rear [418-000-509] Lock Arm Weldment - Rear 418-000-509
€453.88
49 Spacer Tube [418-000-510] Spacer Tube 418-000-510
€28.65
50 Folding [418-000-529] Folding 418-000-529
€49.78
51 Tie Rod [418-000-536] Tie Rod 418-000-536
€12.15
52 Bolt On Stub Axle Weldment [418-000-682] Bolt On Stub Axle Weldment i See notes section for usage notes on this part 418-000-682
€68.72
53 Tiedown [418-000-780] Tiedown 418-000-780
€37.03
54 PTO Hanger - Pegasus Vulcan Snake [418-000-782] PTO Hanger - Pegasus Vulcan Snake 418-000-782
€38.97
55 Pin - Hydraulic Cylinder [419-000-034] Pin - Hydraulic Cylinder 419-000-034
€19.55
56 Pin - Hydraulic Cylinder [419-000-035] Pin - Hydraulic Cylinder 419-000-035
€18.33
57 Roller - Guide [419-000-036] Roller - Guide 419-000-036
€44.14
58 Bush - Transport Guide [419-000-041] Bush - Transport Guide 419-000-041
€9.90
59 Pin Weldment - Hitch - Flat Head Ø1" [419-000-050] Pin Weldment - Hitch - Flat Head Ø1" 419-000-050
€27.32
60 Decal - Wear Pad - D-Shape Snake [424-101-815] Decal - Wear Pad - D-Shape Snake 424-101-815
€6.08
