NOTES:

Part #	Number on image	Usage Notes
418-000-001	26	Use as required Use as required

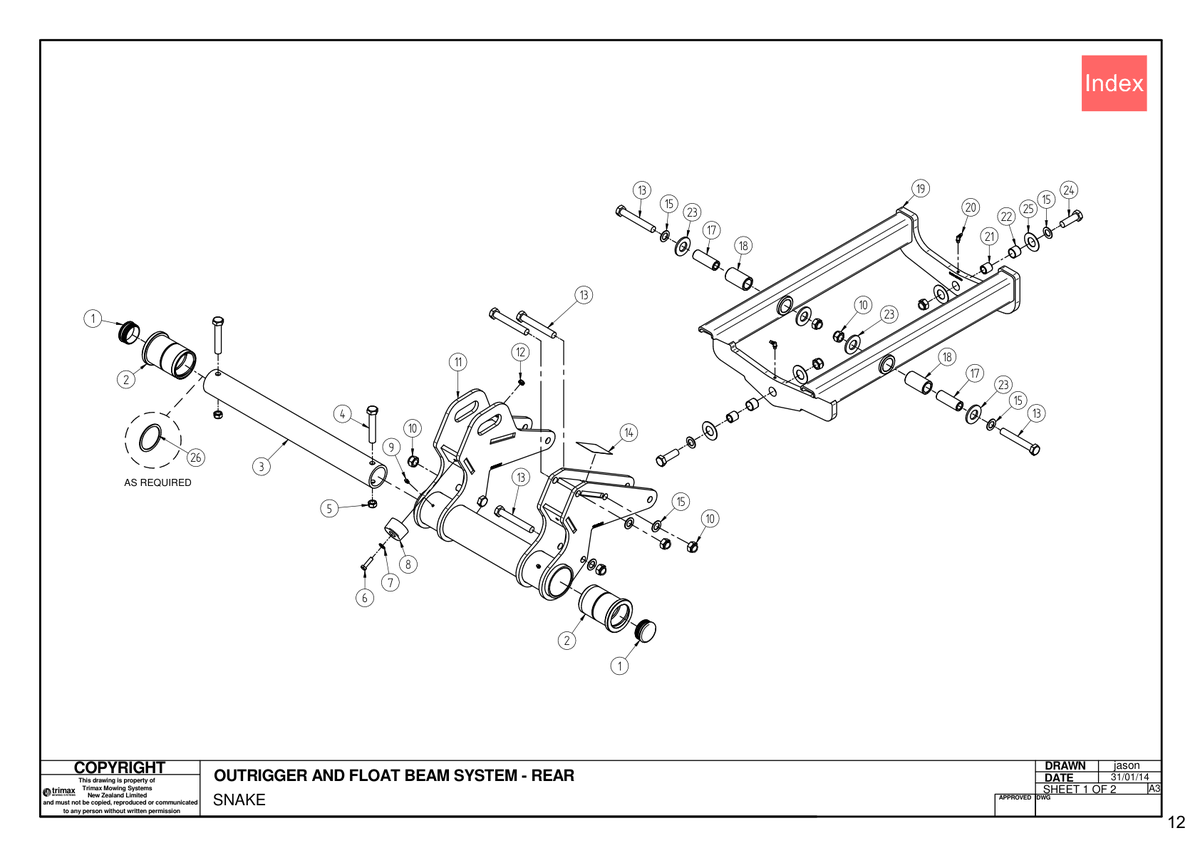

721 - Snake S1 - Outrigger and Float Beam System - Rear

Snake S1 320

Grouped product items
No.	Product Name	Price
1	Cap - Hinge Tube End Insert 450-000-119 More Info >	€5.47
2	Bush 402-840-260 More Info >	€110.79
3	Pin - Outrigger Hinge - Side/Rear 419-000-037 More Info >	€106.66
4	Bolt 301-216-903 More Info >	€4.09
5	Nut - Nyloc 307-212-053 More Info >	€0.61
6	Bolt 301-208-303 More Info >	€0.90
7	Washer - Flat 308-080-013 More Info >	€0.37
8	Buffer Pad 418-000-537 More Info >	€15.79
9	Grease Nipple 208-442-600 More Info >	€2.25
10	Nut - Nyloc 307-216-053 More Info >	€1.34
11	Outrigger Arm Weldment 418-000-516 More Info >	€800.61
12	Nut - Nyloc 307-208-053 More Info >	€0.49
13	Bolt 301-616-113 More Info >	€5.54
14	Decal - Wear Pad - Rectangle 424-101-816 More Info >	€6.08
15	Washer - Flat 308-160-013 More Info >	€2.37
17	Sleeve 402-840-580 More Info >	€21.25
18	Bush 402-000-079 More Info >	€41.65
20	Grease Nipple 208-442-620 More Info >	€2.39
21	Float Beam Bush 402-000-059 More Info >	€28.57
22	Float Beam Bush 402-000-020 More Info >	€8.02
23	Thrust Washer 402-000-080 More Info >	€15.49
24	Bolt 301-216-503 More Info >	€3.22
25	Washer 402-000-088 More Info >	€8.32
26	Shim i See notes section for usage notes on this part 418-000-001 More Info >	€24.52
