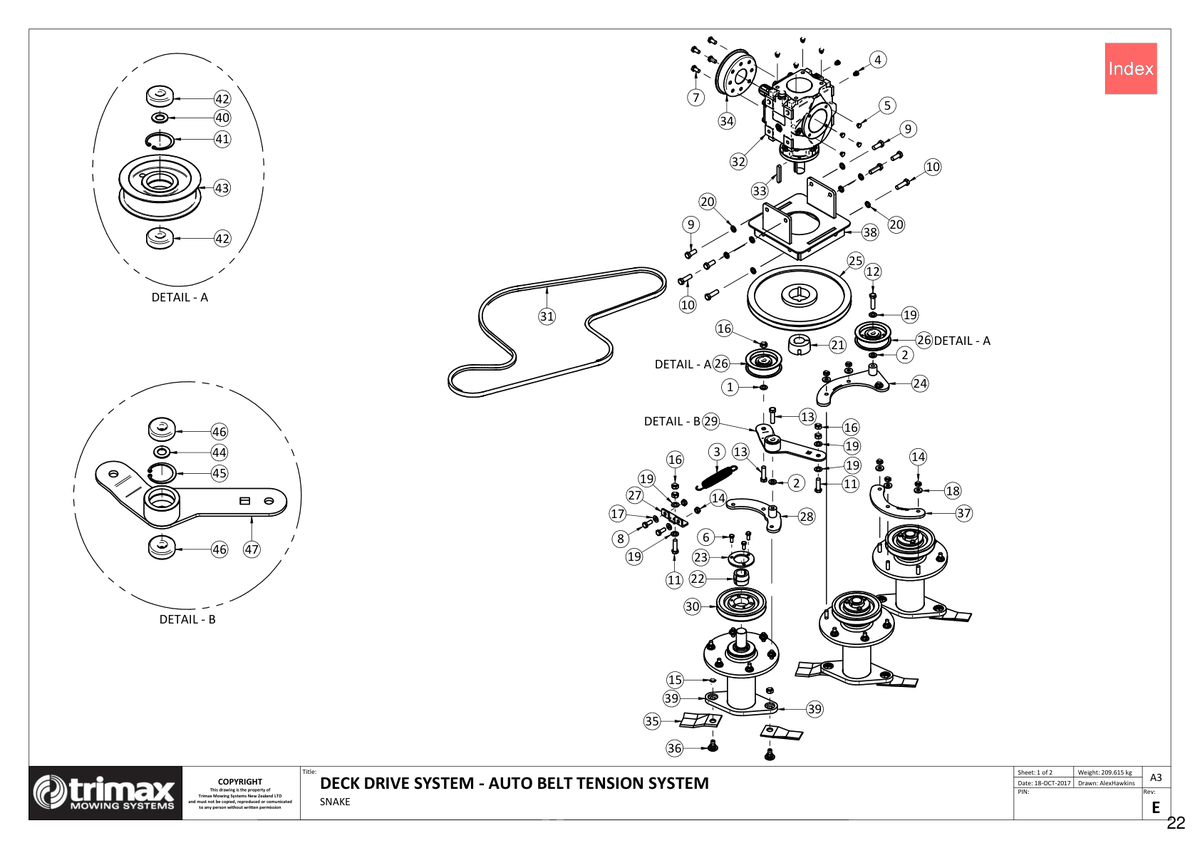

721 - Snake S1 - Deck Ato Belt Drive System

Snake S1 320

Grouped product items
No.	Product Name	Price
1	Washer - Flat 108-071-413 More Info >	€1.40
2	Washer - Hardened 108-071-513 More Info >	€1.95
3	Spring - Deck Belt Tensioner - Trimax Specification - 207-000-009 More Info >	€14.29
4	Blanking Plug - M12 209-900-012 More Info >	€1.04
5	Blanking Plug 209-900-014 More Info >	€2.98
6	Bolt - Hex Head - M8 x 20 - Trimax Specification 301-208-203 More Info >	€0.67
7	Bolt - Hex Head - M10 x 20 - Trimax Specification 301-210-203 More Info >	€0.67
8	Bolt - Hex Head - M10 x 30 - Trimax Specification 301-210-303 More Info >	€0.92
9	Bolt - Hex Head - M12 x 30 - Trimax Specification 301-212-303 More Info >	€1.46
10	Bolt - Hex Head - M12 x 40 - Trimax Specification 301-212-403 More Info >	€1.77
12	Bolt - Hex Head - M12 x 45 - Trimax Specification 301-212-453 More Info >	€1.89
14	Nut - Nyloc 307-210-053 More Info >	€0.61
15	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	€0.61
17	Washer - Flat 308-100-013 More Info >	€0.37
18	Washer - Heavy Flat 308-100-063 More Info >	€0.37
19	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	€0.37
20	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	€0.37
21	Bush 402-000-083 More Info >	€18.76
22	Bush 402-060-320 More Info >	€23.21
23	Retainer Ring 402-060-450 More Info >	€7.66
24	Idler Tower 403-000-076 More Info >	€64.28
25	Pulley 403-000-081 More Info >	€168.94
26	Pulley Assembly 403-000-091 More Info >	€89.27
28	Base Weldment - Idler Arm 403-000-101 More Info >	€51.91
29	Idler Arm Assembly - Arm + Bearing 403-000-103 More Info >	€159.89
30	Pulley 403-360-300 More Info >	€40.47
31	Vee Belt - Trimax Specification 404-040-962 More Info >	€48.45
32	Gearbox 405-000-015 More Info >	€672.25
33	Key - Gearbox 405-207-154 More Info >	€9.17
34	Mounting Plate 410-000-258 More Info >	€32.30
35	Blade - LazerBlade Uplift - Uplift Profile Rotary Cutting Blade 411-160-842 More Info >	€10.45
36	Blade Bolt - With M12 Nyloc Nut - LazerBlade and NexaBlade Mounting 411-322-050 More Info >	€7.16
37	Plate 417-001-002 More Info >	€40.07
38	Gearbox Mount Weldment - Deck Assembly 417-001-016 More Info >	€250.41
39	Spindle Assembly - Snake S2 504-000-098 More Info >	€715.45
41	Circlip/Snap Ring - Internal 204-820-371 More Info >	€1.61
42	Bearing - Trimax Specification - 401-021-900 More Info >	€11.85
43	Pulley - Back Tensioned 403-000-089 More Info >	€59.20
47	Arm Weldment - Idler Arm 403-000-102 More Info >	€106.60
