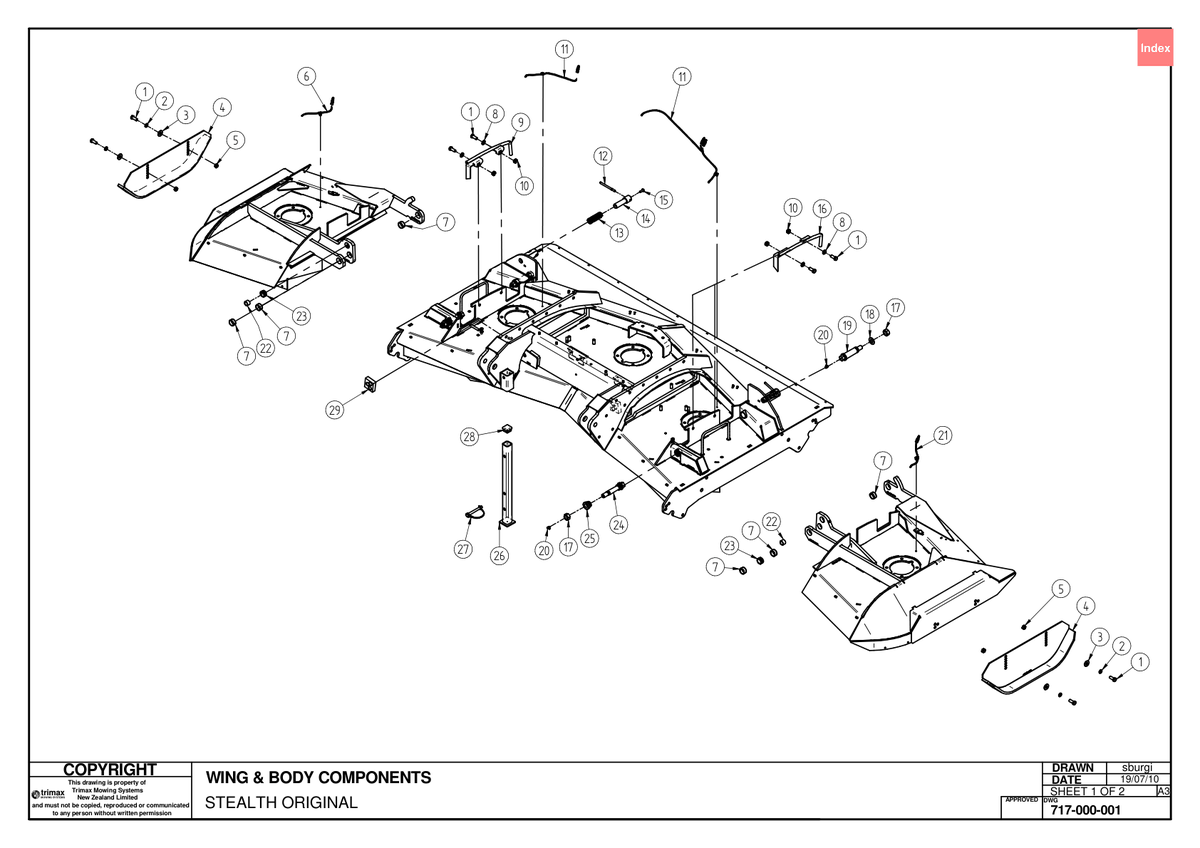

717 - Stealth Original 340 - Mower Body and Wing Components

Stealth Original 340

Grouped product items
No.	Product Name	Price
1	Bolt - Hex Head - M12 x 30 - Trimax Specification 301-212-303 More Info >	€1.46
2	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	€0.37
3	Washer - Heavy Flat 308-120-063 More Info >	€0.37
4	Skid Weldment - Rear Mount ��6" Rollers ST 412-320-112 More Info >	€153.64
5	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	€0.92
6	Tube - Grease Line No. 11 ��3/16"OD 903-007-031 More Info >	€4.25
7	Hinge Bush 402-000-016 More Info >	€13.23
8	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	€0.37
9	Cover/Belt Support Weldment RH 417-000-718 More Info >	Price on Request
10	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	€0.61
12	Unlocking Lever 419-000-027 More Info >	Price on Request
13	Spring - Compression 207-000-005 More Info >	Price on Request
14	Unlocking Pin 419-000-028 More Info >	Price on Request
15	Bolt - Hex Head - M8 x 20 - Trimax Specification 301-208-203 More Info >	€0.67
16	Cover/Belt Support Weldment LH 417-000-719 More Info >	Price on Request
17	Nut - Plain 307-220-013 More Info >	€1.46
18	Washer - Heavy Flat M20 - Trimax Specification - 308-200-064 More Info >	€0.73
19	Wing Hinge Bolt - Single Grease Groove 419-000-017 More Info >	€99.44
20	Grease Nipple - Trimax Specification 208-442-650 More Info >	€2.92
22	Bush - Inner Ring 401-021-860 More Info >	€25.88
23	Bush 402-061-050 More Info >	€19.49
24	Wing Hinge Bolt - Dual Grease Groove 419-000-016 More Info >	€102.59
25	Top Hat Bush - Wing Hinge 419-000-018 More Info >	€61.98
26	Support Leg Assembly 413-480-661 More Info >	Price on Request
27	Pin 406-346-410 More Info >	€7.23
28	Cap - Tube Insert Square 209-480-661 More Info >	€5.36
