NOTES:

Part #	Number on image	Usage Notes
409-448-200	6	Refer to Ram parts listing 409-448-200
409-448-270	10	When the Stealth is fitted to the Trailmaster use part number 409-448-510 (3500mm)

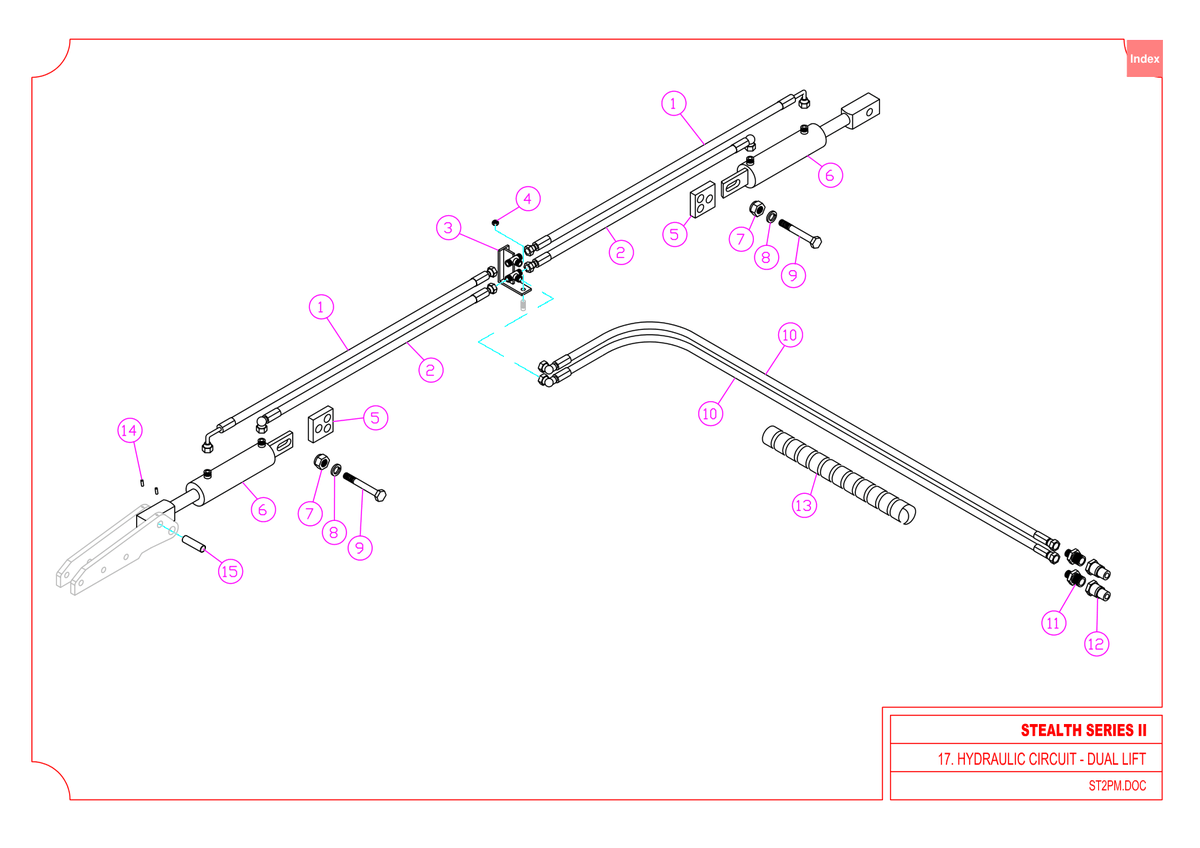

716 - Stealth S2 340 - Hydraulic System Dual Lift

Stealth S2 340

Grouped product items
No.	Product Name	Price
1	Hose Assembly 409-448-370 More Info >	€82.74
2	Hose Assembly 409-448-360 More Info >	€82.74
4	Nut - Nyloc 307-208-053 More Info >	€0.49
6	Hydraulic Lift Ram i See notes section for usage notes on this part 409-448-200 More Info >	€542.14
7	Nut - Plain 307-220-013 More Info >	€1.46
9	Bolt 305-620-153 More Info >	€20.16
10	Hose Assembly i See notes section for usage notes on this part 409-448-270 More Info >	€76.61
11	Nipple 408-448-280 More Info >	€14.09
12	Coupling 408-447-580 More Info >	€22.41
13	Spiral Tie - For Hydraulic Lines Plastic Black (400mm) 450-900-014 More Info >	€27.32
14	Grub Screw 312-206-205 More Info >	€0.92
15	Hinge Pin - Wing Lift Upper - Hyd Cyl 419-850-650 More Info >	€27.44
