NOTES:

Part #	Number on image	Usage Notes
402-000-009	13	From 716-340-001-0064 and 716-340-002-0362 the spacer is not welded on

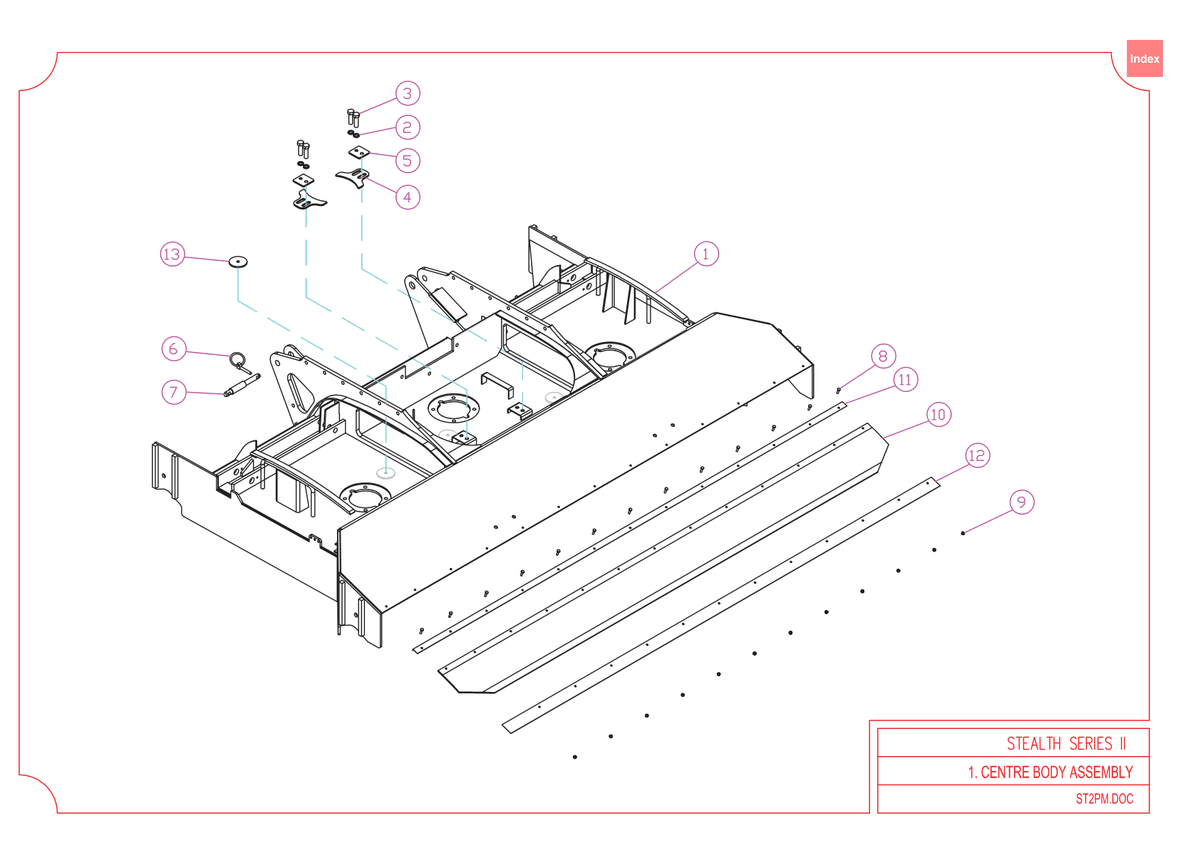

716 - Stealth S2 340 - Body Assembly

Stealth S2 340

Grouped product items
No.	Product Name	Price
2	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	€0.37
3	Bolt - Hex Head - M12 x 25 - Trimax Specification 301-212-253 More Info >	€1.34
4	Belt Guide 417-850-350 More Info >	€21.43
6	Linch Pin - Ø7/16" x 1-3/4" 203-300-700 More Info >	€1.16
7	Pin - Linkage - Lower Dual Cat. 419-300-900 More Info >	€20.52
8	Bolt - Hex Head - M6 x 20 - Trimax Specification 301-206-203 More Info >	€0.49
9	Nut - Nyloc 307-206-053 More Info >	€0.37
10	Safety Flap - Centre Body - Rear 410-850-800 More Info >	€216.54
11	Clamp Strip - Safety Flap - Centre Body 410-850-810 More Info >	€108.78
12	Anti-Droop Strip - Safety Flap - Centre Body 410-850-820 More Info >	€114.19
13	Spacer i See notes section for usage notes on this part 402-000-009 More Info >	€8.93
