NOTES:

Part #	Number on image	Usage Notes
401-021-860	6	Refer to item 6 of the Body Assembly parts listing.

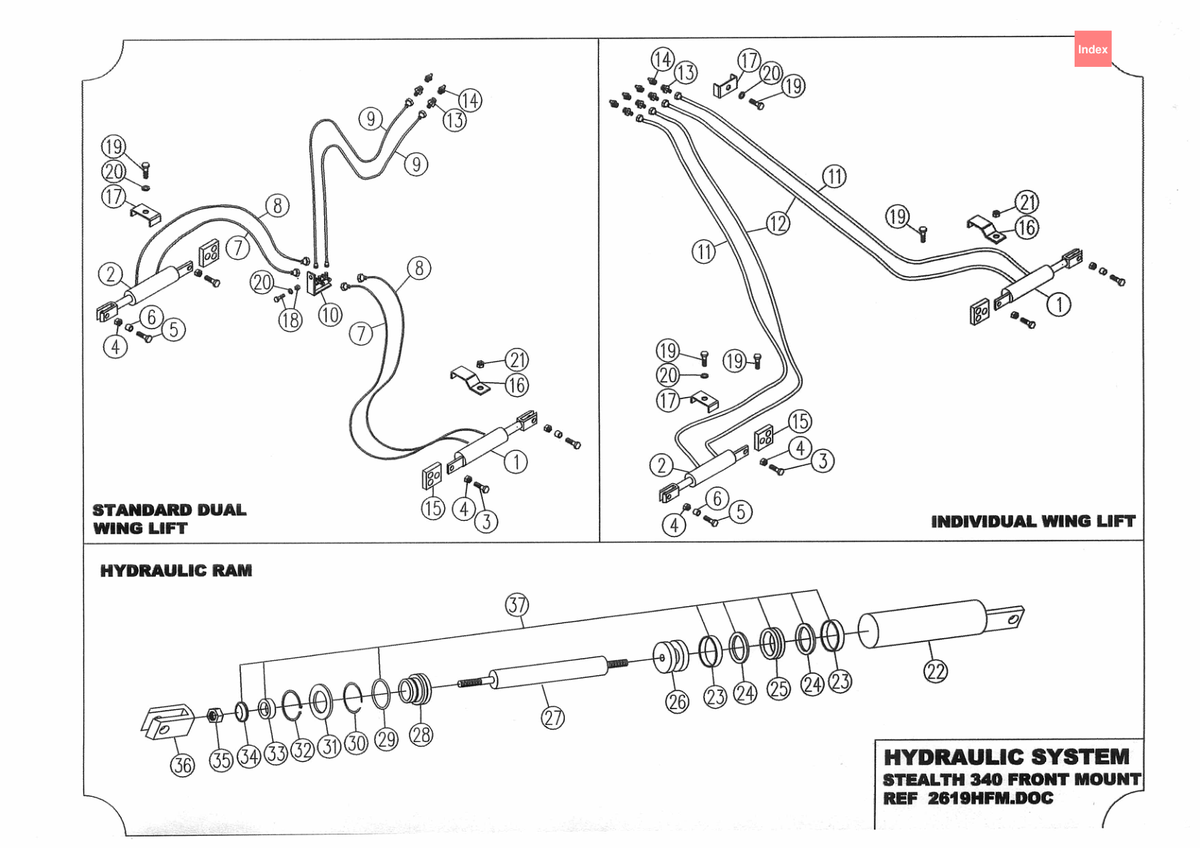

715 - 340 Stealth S1 FM - Hydraulic Circuit Dual Lift

Stealth S1 FM 340

Grouped product items
No.	Product Name	Price
1	Lift Ram Assembly 409-448-004 More Info >	€574.01
2	Lift Ram Assembly 409-448-003 More Info >	€574.01
3	Bolt 301-220-803 More Info >	€7.90
4	Nut - Plain 307-220-013 More Info >	€1.46
5	Bolt 305-220-803 More Info >	€13.12
6	Bush - Inner Ring i See notes section for usage notes on this part 401-021-860 More Info >	€25.88
7	Hose Assembly 409-448-250 More Info >	Price on Request
9	Hose Assembly 409-448-270 More Info >	€76.61
11	Hose Assembly 409-448-340 More Info >	€90.57
12	Hose Assembly 409-448-350 More Info >	€86.44
13	Nipple 408-448-280 More Info >	€14.09
14	Coupling 408-447-580 More Info >	€22.41
16	Hose Retainer RH 417-448-020 More Info >	€1.50
17	Clamp 408-448-030 More Info >	Price on Request
18	Bolt 301-208-253 More Info >	€0.74
19	Bolt 301-208-403 More Info >	€1.16
20	Washer - Spring 308-080-043 More Info >	€0.37
21	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	€0.92
35	Nut - Plain 107-112-013 More Info >	Price on Request
36	Clevis 408-448-150 More Info >	€44.44
37	Seal Kit 408-448-094 More Info >	€92.51
