NOTES:

Part #	Number on image	Usage Notes
405-200-720	2	Always supply serial number when ordering gearbox parts
411-160-702	42	Not Fitted in all markets

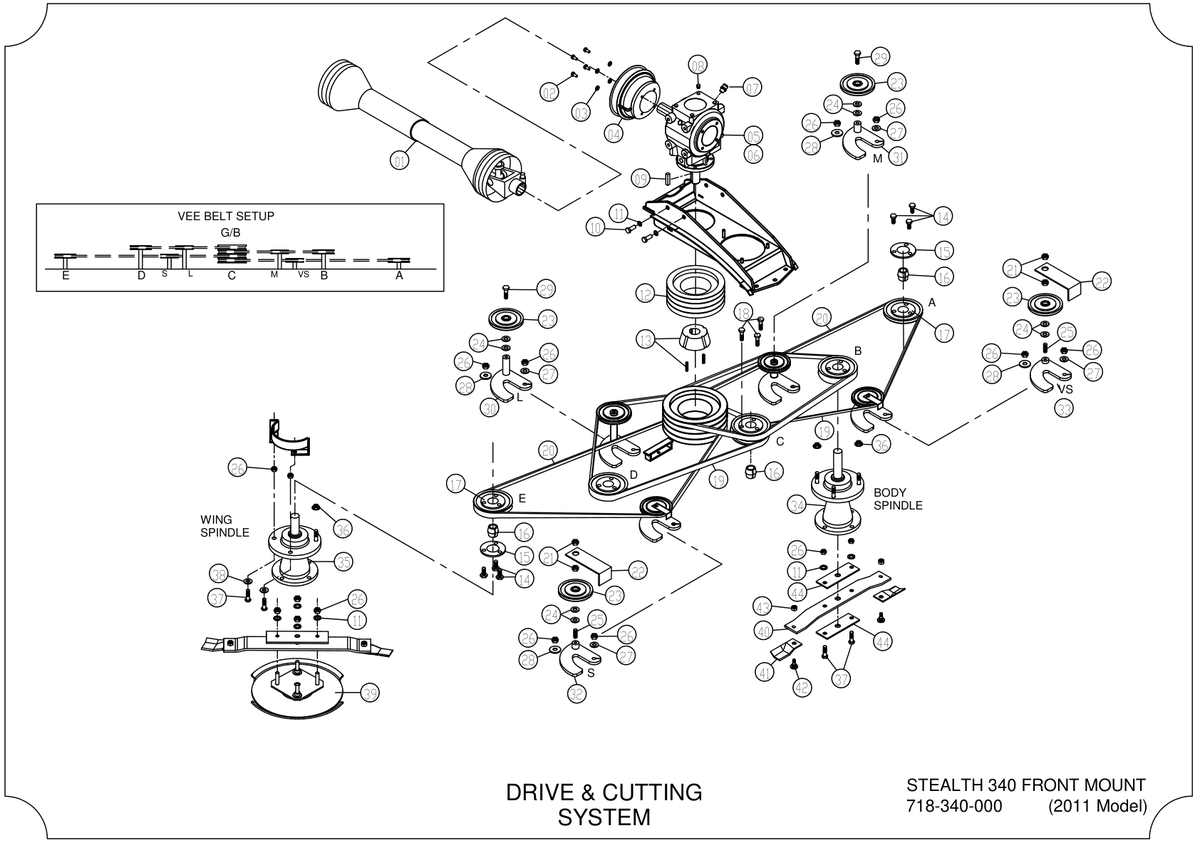

715 - 340 Stealth S1 FM - Drive & Cutting System

Stealth S1 FM 340

Grouped product items
No.	Product Name	Price
1	Driveshaft 406-340-840 More Info >	€450.56
2	Gearbox i See notes section for usage notes on this part 405-200-720 More Info >	€740.95
3	Bolt 301-212-303 More Info >	€1.46
4	Washer - Spring 308-120-043 More Info >	€0.37
5	Washer - Heavy Flat 308-120-063 More Info >	€0.37
6	Pulley 403-361-270 More Info >	€151.76
7	Bush - Taper Lock 402-060-680 More Info >	€50.33
8	Key 405-425-940 More Info >	€9.13
10	Washer - Flat 308-120-013 More Info >	€0.37
12	Vee Belt 404-040-830 More Info >	€26.35
13	Vee Belt 404-041-300 More Info >	€43.59
14	Bolt 301-212-453 More Info >	€1.89
16	Stud 403-330-443 More Info >	€1.65
17	Belt Retainer Guide 417-330-450 More Info >	€19.05
18	Nut - Half 307-212-023 More Info >	€1.16
19	Pulley - Idler 403-360-110 More Info >	€23.68
20	Bearing 401-021-900 More Info >	€11.85
21	Washer - Flat 108-071-413 More Info >	€1.40
22	Circlip/Snap Ring - Internal 204-820-371 More Info >	€1.61
24	Idler Tower Incl Base 403-330-423 More Info >	€64.28
25	Idler Tower Incl Base 403-330-424 More Info >	€61.90
26	Idler Tower Incl Base 403-330-432 More Info >	€45.96
27	Idler Tower Incl Base 403-330-442 More Info >	€56.95
28	Nut - Plain 307-212-013 More Info >	€0.92
29	Bolt 301-208-203 More Info >	€0.67
30	Bolt 301-208-403 More Info >	€1.16
31	Retainer Ring 402-060-450 More Info >	€7.66
32	Bush 402-060-320 More Info >	€23.21
33	Pulley 403-360-300 More Info >	€40.47
35	Spindle Assembly - Type 5b Short Ext 50mm 504-328-043 More Info >	€600.59
36	Cap Screw 303-212-505 More Info >	€2.31
37	Bolt 301-212-553 More Info >	€2.61
39	Backing Plate - Blade Beam 411-322-710 More Info >	€18.53
40	Beam - Std - Blade Mounting 411-322-760 More Info >	€32.24
41	Clamp Plate - Blade Beam 411-322-800 More Info >	€6.08
42	Blade - Spindle - Flat 411-160-700 More Info >	€8.53
42	Blade - Spindle - Uplift i See notes section for usage notes on this part 411-160-702 More Info >	€8.53
43	Blade Bolt - D-Bolt - With Nyloc Nut - Blade Mounting 411-322-100 More Info >	€3.77
44	Nut - Nyloc 307-210-053 More Info >	€0.61
