NOTES:

Part #	Number on image	Usage Notes
301-616-103	7	An oversize O.D. bush is available on request, use P/N 402-061-100
416-449-011	41	Front wheel can be ordered as an assembly, use P/N 416-449-010
416-449-012	42	Front wheel can be ordered as an assembly, use P/N 416-449-010
422-380-210	44	Front wheel can be ordered as an assembly, use P/N 416-449-010
401-021-870	45	Front wheel can be ordered as an assembly, use P/N 416-449-010
416-449-015	48	Front wheel can be ordered as an assembly, use P/N 416-449-010
306-206-303	68	Not fitted in all markets
410-332-027	71	Not fitted in all markets
404-320-127	89	Not fitted in all markets

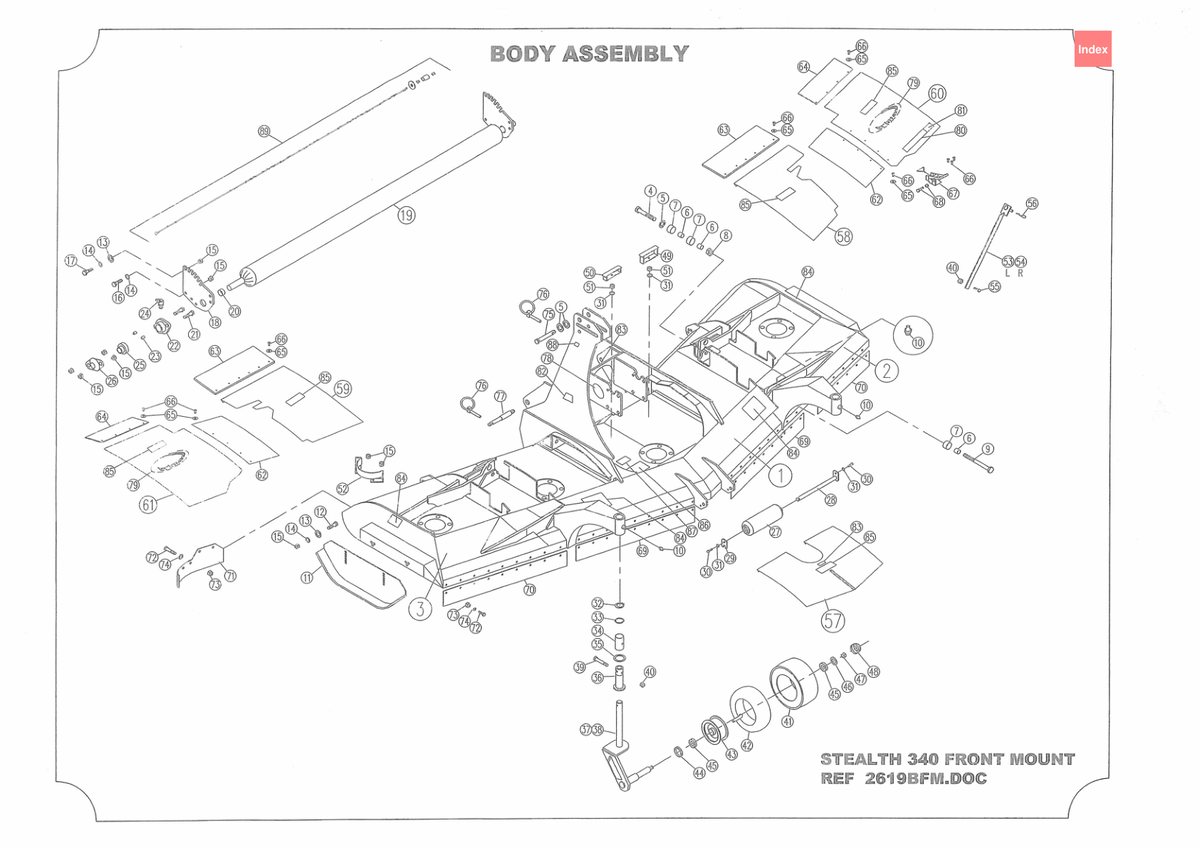

715 - 340 Stealth S1 FM - Body Assembly

Stealth S1 FM 340

Grouped product items
No.	Product Name	Price
4	Bolt 305-620-153 More Info >	€20.16
5	Washer - Heavy Flat M20 - Trimax Specification - 308-200-064 More Info >	€0.73
6	Bush - Inner Ring 401-021-860 More Info >	€25.88
7	Bolt i See notes section for usage notes on this part 301-616-103 More Info >	€5.47
8	Nut - Plain 307-220-013 More Info >	€1.46
9	Bolt 301-620-203 More Info >	€14.69
10	Grease Nipple - 1/4" Short 208-442-600 More Info >	€2.25
11	Wing Skid Weldment - Stealth FM 412-320-113 More Info >	€272.32
12	Bolt 301-212-353 More Info >	€1.59
13	Washer - Heavy Flat 308-120-063 More Info >	€0.37
14	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	€0.37
15	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	€0.92
17	Bolt - Hex Head M12 x 40 - Trimax Specification - 301-212-403 More Info >	€1.77
18	Quadrant - Roller Mounting ��6" Rollers ST 412-320-101 More Info >	€52.33
19	Roller Weldment - FrST/RrSTFM 414-320-015 More Info >	€670.59
20	Sleeve 402-464-062 More Info >	€6.74
21	Bolt - Hex Head M12 x 50 - Trimax Specification - 301-212-503 More Info >	€2.00
22	Roller Bearing Assembly - 1-3/8" x UCFL207 - 401-020-701 More Info >	€58.46
23	Sleeve 402-480-740 More Info >	€4.86
24	Grease Nipple 208-442-620 More Info >	€2.39
26	Cap 410-464-072 More Info >	€21.98
27	Roller - Front Anti-scalp 414-320-030 More Info >	€312.51
28	Axle - Anti-scalp Roller 419-320-040 More Info >	€97.74
29	Axle Retainer 419-170-060 More Info >	€6.44
30	Bolt 301-208-203 More Info >	€0.67
31	Washer - Spring 308-080-043 More Info >	€0.37
32	Circlip/Snap Ring - External 204-820-522 More Info >	€1.79
33	Washer - Retaining Ø65xØ52.2x2 412-320-090 More Info >	€32.42
34	Bush - Pivot 402-320-060 More Info >	€124.08
35	Washer - Thrust Ø52.2xØ90x5 402-320-080 More Info >	€30.67
36	Boss - Pivot - Ø52xØ90x177 402-320-070 More Info >	€251.92
37	Front Castor Weldment - LH 412-320-051 More Info >	€352.51
38	Front Castor Weldment - RH 412-320-052 More Info >	€352.51
39	Bolt 301-212-653 More Info >	€2.74
40	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	€0.61
41	Tyre i See notes section for usage notes on this part 416-449-011 More Info >	Price on Request
42	Tube i See notes section for usage notes on this part 416-449-012 More Info >	Price on Request
44	Seal - Wheel Bearing i See notes section for usage notes on this part 422-380-210 More Info >	€13.10
45	Bearing - Tapered Roller i See notes section for usage notes on this part 401-021-870 More Info >	€21.43
46	Washer - Heavy Flat 308-160-063 More Info >	€0.67
47	Nut - Nyloc M16 - Trimax Specification - 307-216-053 More Info >	€1.34
48	Grease Cap - Wheel i See notes section for usage notes on this part 416-449-015 More Info >	€14.69
51	Nut - Nyloc 307-208-053 More Info >	€0.49
53	Stay 417-332-064 More Info >	€26.70
54	Stay 417-332-065 More Info >	€26.70
55	Bolt 301-212-453 More Info >	€1.89
56	R-Clip 206-443-400 More Info >	€1.16
58	Cover 410-330-374 More Info >	€280.45
59	Cover 410-330-373 More Info >	€280.45
60	Cover 410-330-384 More Info >	€231.71
61	Cover 410-330-383 More Info >	€231.71
62	Filler Rubber 410-330-375 More Info >	€48.02
63	Safety Flap - Cntr Body LH/RH 410-332-012 More Info >	€40.85
64	Flap 410-332-014 More Info >	€35.33
65	Washer - Fender 108-031-413 More Info >	€0.37
66	Blind Rivet 213-443-250 More Info >	€0.33
67	Adjustable Catch - Covers 423-080-220 More Info >	€15.00
68	Bolt - c/w Nyloc Nut i See notes section for usage notes on this part 306-206-303 More Info >	Price on Request
69	Flap 410-332-013 More Info >	€38.56
70	Flap 410-332-002 More Info >	€28.71
71	Flap i See notes section for usage notes on this part 410-332-027 More Info >	€24.52
72	Bolt 301-206-203 More Info >	€0.49
73	Nut - Nyloc 307-206-053 More Info >	€0.37
74	Washer - Fender 108-041-613 More Info >	€0.54
75	Pin - Linkage - Top Link 419-301-150 More Info >	€8.74
76	Linch Pin - Ø7/16" x 1-3/4" 203-300-700 More Info >	€1.16
77	Pin - Linkage - Lower Dual Cat. 419-300-900 More Info >	€20.52
78	Serial Plate - Three-point Linkage Mowers Small NZ 426-442-800 More Info >	€29.76
80	Decal - Branding Stealth 424-100-410 More Info >	Price on Request
85	Decal - Safety - Service/Read OpMan/Belt Warning/No Step 424-101-080 More Info >	€6.92
89	Roller Scraper i See notes section for usage notes on this part 404-320-127 More Info >	€47.73
