NOTES:

Part #	Number on image	Usage Notes
403-360-400	3	When fitting to an Iseki power unit the rotor pulley needs to be changed. Use 403-360-500 pulley. From s/n 711-185-030-0004 the pulleys were reversed and this is the recommended fitting for all mowers including prior s/n.
403-360-300	5	When fitting to an Iseki power unit the rotor pulley needs to be changed. Use 403-360-500 pulley. From s/n 711-185-030-0004 the pulleys were reversed and this is the recommended fitting for all mowers including prior s/n.

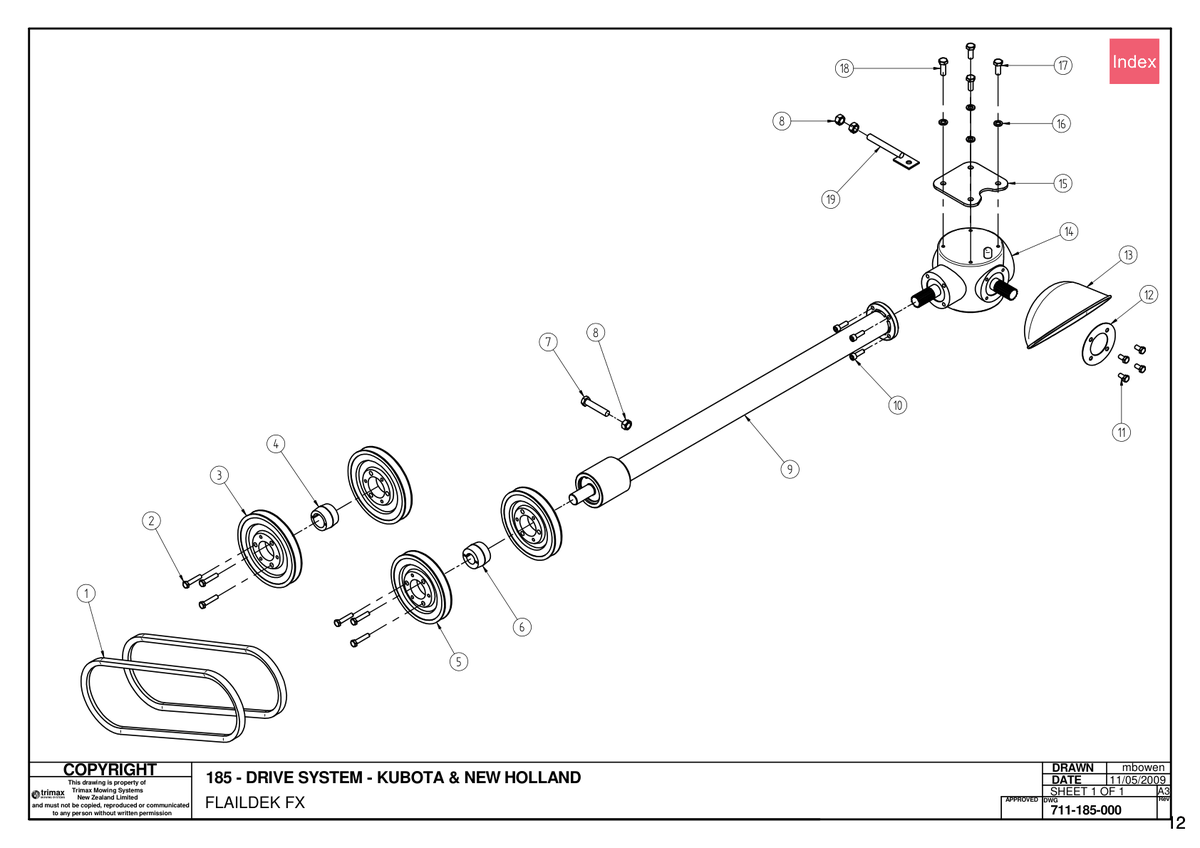

711 - Flaildek FX 185 - Drive System - NH & Kubota - Biloc

FlailDek FX 185

Grouped product items
No.	Product Name	Price
1	Vee Belt - Trimax Specification 404-040-422 More Info >	€19.06
2	Bolt - Hex Head - M8 x 40 - Trimax Specification 301-208-403 More Info >	€1.16
3	Pulley i See notes section for usage notes on this part 403-360-400 More Info >	€46.42
4	Bush 402-060-210 More Info >	€22.02
5	Pulley i See notes section for usage notes on this part 403-360-300 More Info >	€40.47
6	Bush 402-060-240 More Info >	€22.62
7	Set Screw 313-212-603 More Info >	€2.67
8	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	€0.92
9	185 Extension Assembly 405-200-126 More Info >	€675.26
10	Cap Screw - Socket Head - M8 x 25 - Trimax Specification 303-208-255 More Info >	€1.89
11	Bolt - Hex Head - M8 x 16 - Trimax Specification 301-208-163 More Info >	€0.61
12	Plate - PTO Cone Retainer 450-440-381 More Info >	€7.05
13	Cone 410-440-380 More Info >	€28.45
14	Kubota Gearbox 405-200-080 More Info >	€826.98
15	Slide Plate 403-154-250 More Info >	€12.38
16	Washer - Spring 308-100-043 More Info >	€0.37
17	Bolt - Hex Head - M10 x 25 - Trimax Specification 301-210-253 More Info >	€0.85
18	Bolt - Hex Head - M10 x 30 - Trimax Specification 301-210-303 More Info >	€0.92
19	Tension Adjuster 403-154-210 More Info >	€21.80
