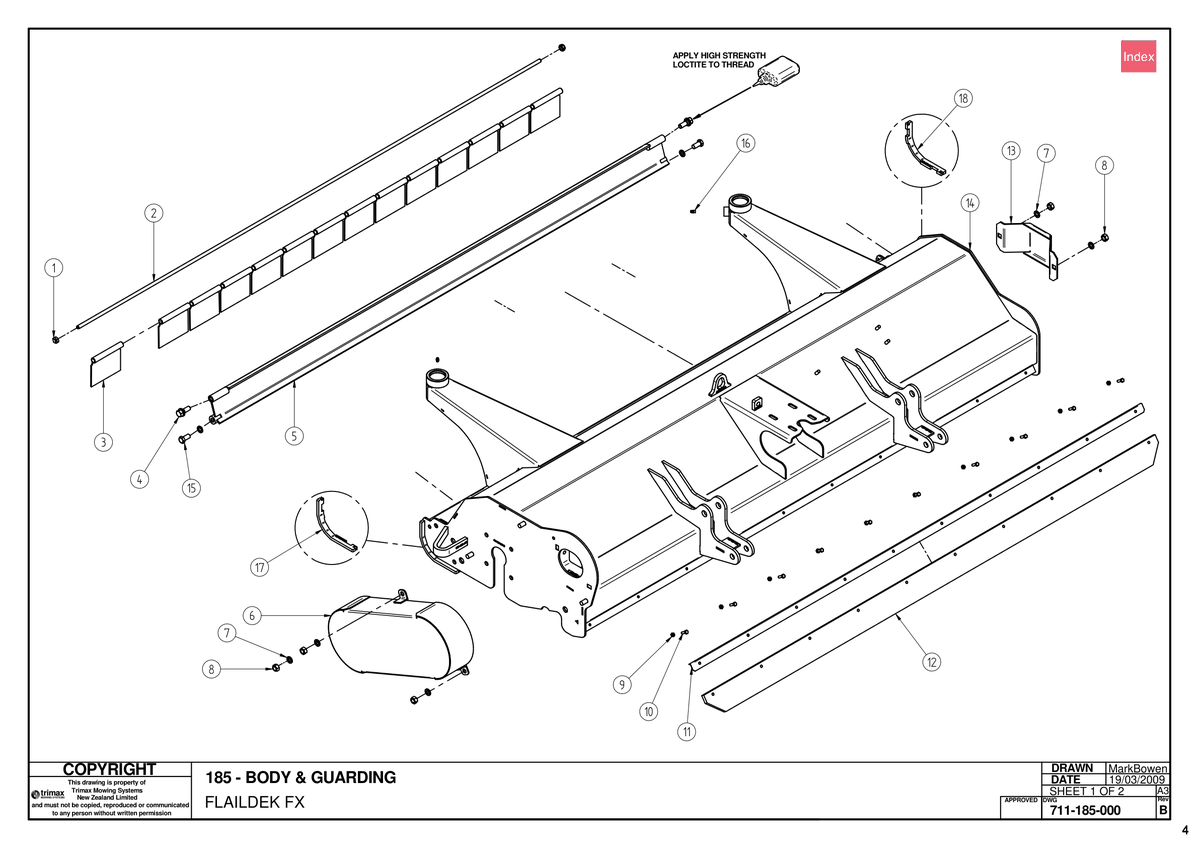

711 - Flaildek FX 185 - Body & Guarding

FlailDek FX 185

Grouped product items
No. Image Product Name Price Quantity
1 Nut - Nyloc [307-210-053] Nut - Nyloc 307-210-053
€0.61
2 Flap Rod 185 [417-000-603] Flap Rod 185 417-000-603
€46.45
3 Flap - Front Flap Weldment [417-000-600] Flap - Front Flap Weldment 417-000-600
€26.05
4 Shoulder Bolt - Converter Flap [450-000-056] Shoulder Bolt - Converter Flap 450-000-056
€15.06
5 Convertor Flap Weldment 185 [417-000-642] Convertor Flap Weldment 185 417-000-642
€312.62
6 Guard [410-152-710] Guard 410-152-710
€167.06
7 Washer - Spring M12 - Trimax Specification - [308-120-043] Washer - Spring M12 - Trimax Specification - 308-120-043
€0.37
8 Nut - Plain M12 - Trimax Specification - [307-212-013] Nut - Plain M12 - Trimax Specification - 307-212-013
€0.92
9 Nut - Nyloc [307-206-053] Nut - Nyloc 307-206-053
€0.37
10 Bolt - Hex Head - M6 x 20 - Trimax Specification [301-206-203] Bolt - Hex Head - M6 x 20 - Trimax Specification 301-206-203
€0.49
11 Clamp Strip [410-152-390] Clamp Strip 410-152-390
€30.96
12 Flap [410-152-028] Flap 410-152-028
€59.01
13 Protector [410-152-480] Protector 410-152-480
€50.57
14 Body Weldment - FlailDek FX 185 [502-000-042] Body Weldment - FlailDek FX 185 502-000-042
€3,581.47
15 Bolt - Hex Head - M12 x 25 - Trimax Specification [301-212-253] Bolt - Hex Head - M12 x 25 - Trimax Specification 301-212-253
€1.34
16 Grease Nipple - Trimax Specification [208-442-600] Grease Nipple - Trimax Specification 208-442-600
€2.25
17 Skid Plate [417-001-187] Skid Plate 417-001-187
€110.97
18 Skid Plate [417-001-188] Skid Plate 417-001-188
€110.97
