NOTES:

Part # Number on image Usage Notes
402-000-142 29
  • Taper Lock pulleys & bushes used on all mowers manufactured from Serial number onwards: TNZ: 751-135-301-1059356 / 706-135-2108-3002646, 751-155-302-1056125 / 706-155-2103-3002648, 751-185-302-1056443 / 706-185-289-3002548
402-060-670 30
  • Taper Lock pulleys & bushes used on all mowers manufactured from Serial number onwards: TNZ: 751-135-301-1059356 / 706-135-2108-3002646, 751-155-302-1056125 / 706-155-2103-3002648, 751-185-302-1056443 / 706-185-289-3002548
403-000-128 31
  • Taper Lock pulleys & bushes used on all mowers manufactured from Serial number onwards: TNZ: 751-135-301-1059356 / 706-135-2108-3002646, 751-155-302-1056125 / 706-155-2103-3002648, 751-185-302-1056443 / 706-185-289-3002548
301-212-253 59
  • (Option) only used with mowers sold with converter flap assembly options
412-152-461 64
  • Weld on skids available under part numbers: 412-152-463 – Skid Folding - LH, 412-152-464 – Skid Folding - RH
412-152-462 65
  • Weld on skids available under part numbers: 412-152-463 – Skid Folding - LH, 412-152-464 – Skid Folding - RH
301-208-403 67
  • All mowers manufactured prior to the above serial number were fitted with double Bi-loc pulley & Bi-loc bush setup for top & bottom pulleys use part item numbers from 66 to 70.
402-060-150 68
  • All mowers manufactured prior to the above serial number were fitted with double Bi-loc pulley & Bi-loc bush setup for top & bottom pulleys use part item numbers from 66 to 70.
402-060-210 69
  • All mowers manufactured prior to the above serial number were fitted with double Bi-loc pulley & Bi-loc bush setup for top & bottom pulleys use part item numbers from 66 to 70.
403-360-300 70
  • All mowers manufactured prior to the above serial number were fitted with double Bi-loc pulley & Bi-loc bush setup for top & bottom pulleys use part item numbers from 66 to 70.
403-360-650 71
  • All mowers manufactured prior to the above serial number were fitted with double Bi-loc pulley & Bi-loc bush setup for top & bottom pulleys use part item numbers from 66 to 70.
405-200-661 35
  • Use these part numbers for non-Keyway Extension shaft only.
405-000-090 35
  • For OFFSET 155 & 185 Mowers, Use P/N: 405-000-089 for Extension Shaft Assembly
405-200-664 35
  • Use these part numbers for non-Keyway Extension shaft only.
503-152-204 66
  • Use these part numbers for non-Keyway Drive End Stub rotor assembly only
  • Use these part numbers for non-Keyway Drive End Stub rotor assembly only
405-000-091 35
  • For OFFSET 155 & 185 Mowers, Use P/N: 405-000-089 for Extension Shaft Assembly
405-200-665 35
  • Use these part numbers for non-Keyway Extension shaft only.

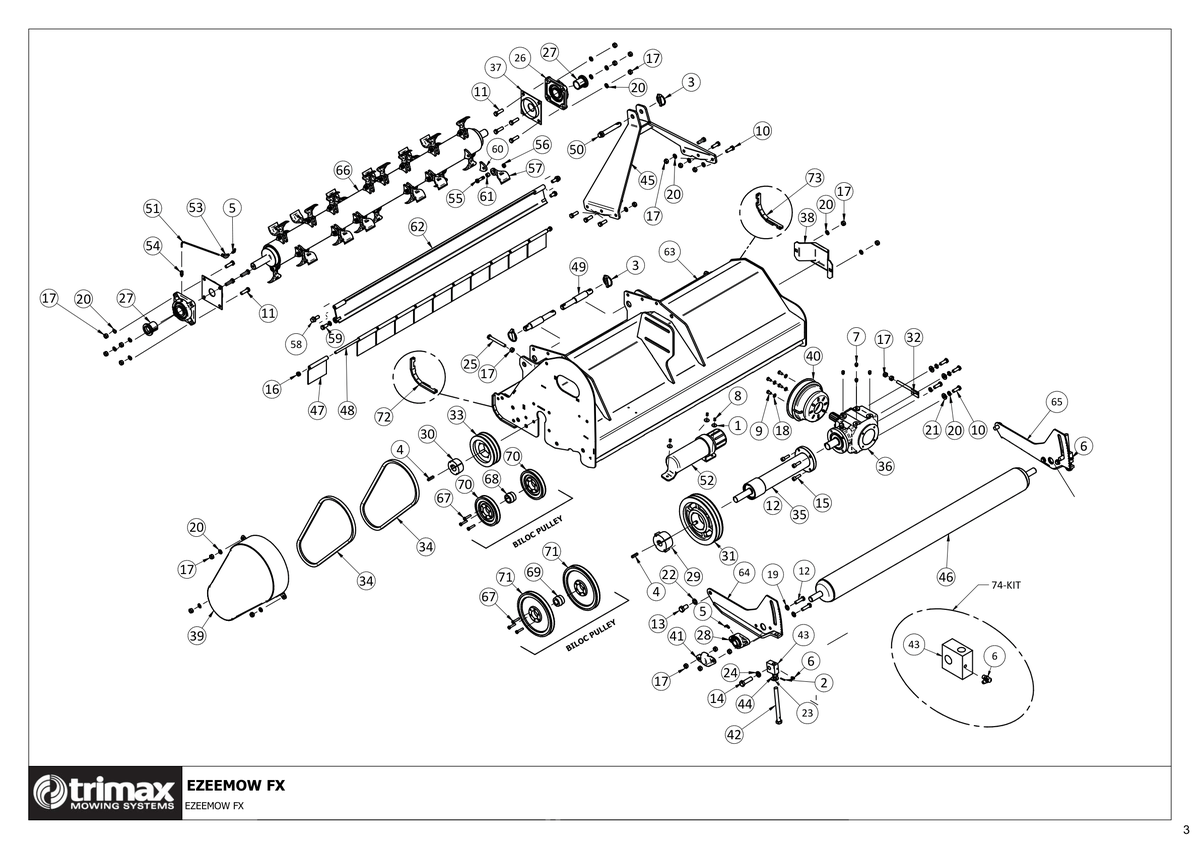

706 - Ezeemow FX - Ezeemow FX

Ezeemow FX, Ezeemow FX 135, Ezeemow FX 155, Ezeemow FX 185

Grouped product items
No. Image Product Name Price Quantity
1 Washer - Fender [108-031-413] Washer - Fender 108-031-413
€0.37
2 Roll Pin [202-447-980] Roll Pin 202-447-980
€2.14
3 Linch Pin [203-300-700] Linch Pin 203-300-700
€1.16
4 Key [205-000-004] Key 205-000-004
€5.33
5 Grease Nipple [208-442-620] Grease Nipple 208-442-620
€2.39
6 Grease Nipple [208-442-650] Grease Nipple 208-442-650
€2.92
7 Blanking Plug [209-900-012] Blanking Plug 209-900-012
€1.04
8 Blind Rivet [213-000-004] Blind Rivet 213-000-004
€0.54
9 Bolt [301-208-163] Bolt 301-208-163
€0.61
10 Bolt [301-212-353] Bolt 301-212-353
€1.59
11 Bolt [301-212-403] Bolt 301-212-403
€1.77
12 Bolt [301-212-453] Bolt 301-212-453
€1.89
13 Bolt [301-216-303] Bolt 301-216-303
€2.74
14 Bolt [301-216-553] Bolt 301-216-553
€3.77
15 Cap Screw [303-210-353] Cap Screw 303-210-353
€1.59
16 Nut - Nyloc [307-210-053] Nut - Nyloc 307-210-053
€0.61
17 Nut - Plain [307-212-013] Nut - Plain 307-212-013
€0.92
18 Washer - Flat [308-080-016] Washer - Flat 308-080-016
€0.37
19 Washer - Flat [308-120-013] Washer - Flat 308-120-013
€0.37
20 Washer - Spring [308-120-043] Washer - Spring 308-120-043
€0.37
21 Washer - Heavy Flat [308-120-063] Washer - Heavy Flat 308-120-063
€0.37
22 Washer [308-160-043] Washer 308-160-043
€0.49
23 Washer - Heavy Flat [308-160-063] Washer - Heavy Flat 308-160-063
€0.67
24 Washer - Nordloc [308-160-083] Washer - Nordloc 308-160-083
€3.53
25 Set Screw [313-612-103] Set Screw 313-612-103
€2.20
26 Bearing Assembly [401-000-001] Bearing Assembly 401-000-001
€75.16
27 Tapered Locking Assembly [401-021-150] Tapered Locking Assembly 401-021-150
€25.56
28 Bearing Assembly [401-150-300] Bearing Assembly 401-150-300
€40.38
29 Bush - Taperlock - Ø28MM - 2517 [402-000-142] Bush - Taperlock - Ø28MM - 2517 i See notes section for usage notes on this part 402-000-142
€18.81
30 Bush - Taper Lock [402-060-670] Bush - Taper Lock i See notes section for usage notes on this part 402-060-670
€36.74
31 Pulley - Taper Lock ��236 SPB x 2 [403-000-128] Pulley - Taper Lock ��236 SPB x 2 i See notes section for usage notes on this part 403-000-128
€97.50
32 Tension Adjuster [403-154-230] Tension Adjuster 403-154-230
€22.70
33 Pulley - Taper Lock [403-361-140] Pulley - Taper Lock 403-361-140
€61.49
34 Vee Belt [404-040-470] Vee Belt 404-040-470
€16.16
36 Gearbox [405-200-650] Gearbox 405-200-650
€517.61
37 Rotor Shield [410-152-290] Rotor Shield 410-152-290
€44.69
38 Protector [410-152-480] Protector 410-152-480
€50.57
39 Guard [410-152-740] Guard 410-152-740
€181.21
40 Cone - PTO Shield w/ Cut Out [410-440-401] Cone - PTO Shield w/ Cut Out 410-440-401
€30.36
41 Cap [410-464-071] Cap 410-464-071
€17.31
42 Set Screw [412-000-610] Set Screw 412-000-610
€14.03
43 Height Adjuster Block [412-330-273] Height Adjuster Block 412-330-273
€32.06
44 Collar - Height Adjuster [412-850-260] Collar - Height Adjuster 412-850-260
€16.61
49 Pin - Linkage - Lower Dual Cat. [419-300-900] Pin - Linkage - Lower Dual Cat. 419-300-900
€20.52
50 Pin - Linkage - Top Link [419-301-150] Pin - Linkage - Top Link 419-301-150
€8.74
51 Grease Line - Plastic ��4.5 [450-000-011] Grease Line - Plastic ��4.5 450-000-011
€1.46
52 Operator Manual Tube - Screw Cap [450-000-073] Operator Manual Tube - Screw Cap 450-000-073
€36.74
53 Fitting - Grease Line, Tapped for Nipple [450-152-822] Fitting - Grease Line, Tapped for Nipple 450-152-822
€26.17
54 Fitting - Grease Line [450-152-892] Fitting - Grease Line 450-152-892
€16.63
58 Shoulder Bolt - Converter Flap [450-000-056] Shoulder Bolt - Converter Flap 450-000-056
€15.06
59 Bolt [301-212-253] Bolt i See notes section for usage notes on this part 301-212-253
€1.34
63 Body Weldment - Ezeemow FX 135 Offset [502-000-080] Body Weldment - Ezeemow FX 135 Offset 502-000-080
€2,981.58
63 Body Weldment - Ezeemow FX 155 Centred [502-000-090] Body Weldment - Ezeemow FX 155 Centred 502-000-090
€3,102.99
63 Body Weldment - Ezeemow FX 155 Offset [502-000-091] Body Weldment - Ezeemow FX 155 Offset 502-000-091
Price on Request
63 Body Weldment - Ezeemow FX 185 Centred [502-000-092] Body Weldment - Ezeemow FX 185 Centred 502-000-092
€3,224.39
63 Body Weldment - Ezeemow FX 185 Offset [502-000-093] Body Weldment - Ezeemow FX 185 Offset 502-000-093
Price on Request
64 Trailing Arm Weldment LH [412-152-461] Trailing Arm Weldment LH i See notes section for usage notes on this part 412-152-461
€115.46
65 Trailing Arm Weldment RH [412-152-462] Trailing Arm Weldment RH i See notes section for usage notes on this part 412-152-462
€115.46
67 Bolt [301-208-403] Bolt i See notes section for usage notes on this part 301-208-403
€1.16
68 Bush [402-060-150] Bush i See notes section for usage notes on this part 402-060-150
€21.43
69 Bush [402-060-210] Bush i See notes section for usage notes on this part 402-060-210
€22.02
70 Pulley [403-360-300] Pulley i See notes section for usage notes on this part 403-360-300
€40.47
71 Pulley [403-360-650] Pulley i See notes section for usage notes on this part 403-360-650
€66.05
72 Front skid LH [417-001-187] Front skid LH 417-001-187
€110.97
73 Skid Plate [417-001-188] Skid Plate 417-001-188
€110.97
35 Extension Shaft - Assembly - 135/155/185 OS - Keyway [405-000-089] Extension Shaft - Assembly - 135/155/185 OS - Keyway 405-000-089
€1,118.79
35 Extension Assembly [405-200-661] Extension Assembly i See notes section for usage notes on this part 405-200-661
Price on Request
46 Roller Weldment 135 [414-152-312] Roller Weldment 135 414-152-312
€521.93
47 Flap Weldment - Front [417-000-600] Flap Weldment - Front 417-000-600
€26.05
48 Flap Rod 135 [417-000-601] Flap Rod 135 417-000-601
€32.67
55 Bolt [305-210-403] Bolt 305-210-403
€2.19
56 Nut - Plain [307-210-013] Nut - Plain 307-210-013
€0.49
57 Flail [411-160-105] Flail 411-160-105
€14.72
60 Flail Lug [411-240-011] Flail Lug 411-240-011
€4.19
61 Bush [402-060-750] Bush 402-060-750
€2.71
62 Convertor Flap Weldment 135 [417-000-640] Convertor Flap Weldment 135 417-000-640
€287.62
35 Extension Shaft - Assembly - 155 CM - Keyway [405-000-090] Extension Shaft - Assembly - 155 CM - Keyway i See notes section for usage notes on this part 405-000-090
€1,232.77
35 Extension Assembly [405-200-664] Extension Assembly i See notes section for usage notes on this part 405-200-664
Price on Request
46 Roller Weldment 155 [414-152-302] Roller Weldment 155 414-152-302
€532.74
48 Flap Rod 155 [417-000-602] Flap Rod 155 417-000-602
€43.53
62 Convertor Flap Weldment 155 [417-000-641] Convertor Flap Weldment 155 417-000-641
€300.11
66 Rotor Assembly 155 Balanced [503-152-204] Rotor Assembly 155 Balanced i See notes section for usage notes on this part 503-152-204
€2,362.81
35 Extension Shaft - Assembly - 185 CM - Keyway [405-000-091] Extension Shaft - Assembly - 185 CM - Keyway i See notes section for usage notes on this part 405-000-091
€1,396.03
35 Extension Assembly [405-200-665] Extension Assembly i See notes section for usage notes on this part 405-200-665
Price on Request
46 Roller Weldment 185 [414-140-010] Roller Weldment 185 414-140-010
€764.01
48 Flap Rod 185 [417-000-603] Flap Rod 185 417-000-603
€46.45
62 Convertor Flap Weldment 185 [417-000-642] Convertor Flap Weldment 185 417-000-642
€312.62
