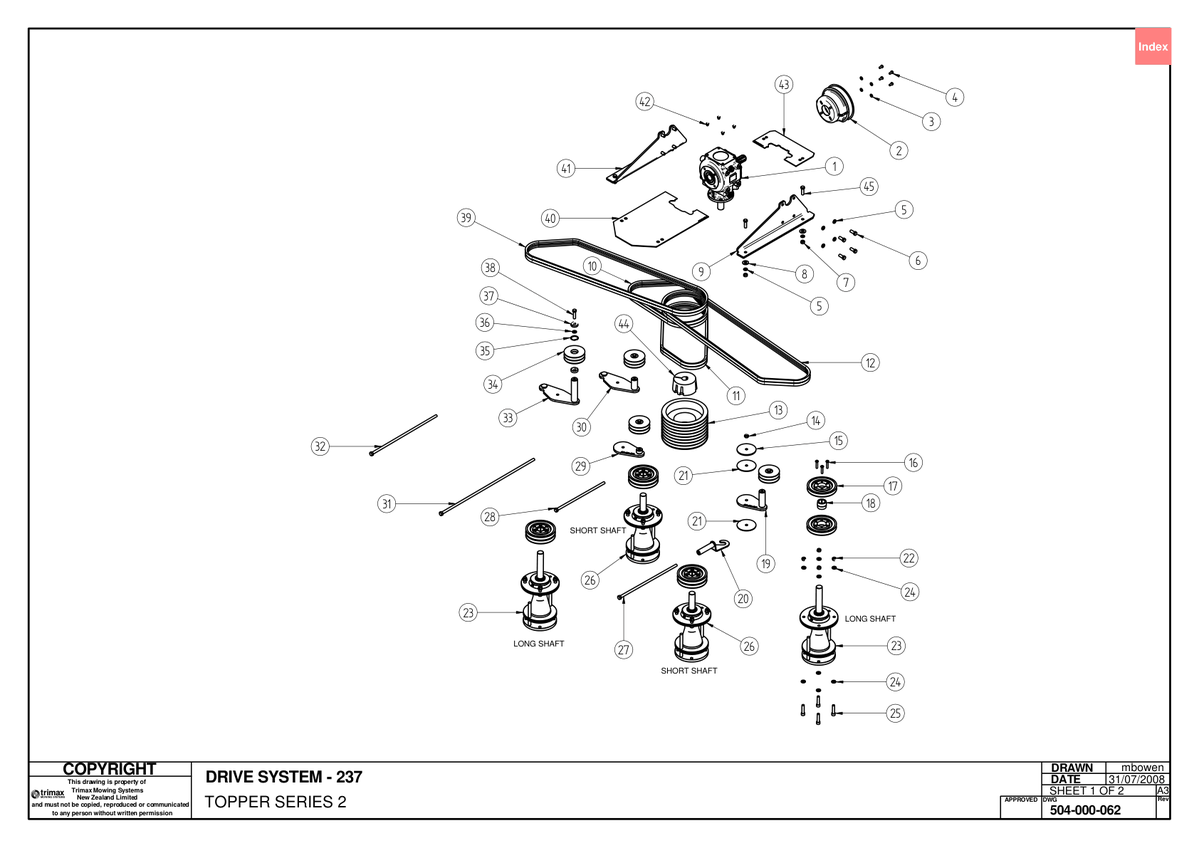

704 - Topper S2 237 - Drive System

Topper S2 237

Grouped product items
No.	Product Name	Price
1	Gearbox - Standard Rotation - 540rpm 405-200-720 More Info >	€740.95
2	Cone - PTO Shield w/ Cut Out 410-440-401 More Info >	€30.36
3	Washer - Flat 308-080-013 More Info >	€0.37
4	Bolt - Hex Head - M8 x 16 - Trimax Specification 301-208-163 More Info >	€0.61
5	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	€0.37
6	Bolt - Hex Head - M12 x 30 - Trimax Specification 301-212-303 More Info >	€1.46
7	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	€0.92
8	Washer - Heavy Flat 308-120-063 More Info >	€0.37
9	Gearbox Mounting Plate 417-000-523 More Info >	Price on Request
10	Vee Belt - Trimax Specification 404-040-470 More Info >	€16.16
11	Vee Belt - Trimax Specification 404-040-530 More Info >	€18.82
13	Pulley 403-000-012 More Info >	Price on Request
14	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	€0.61
15	Clamp Washer 403-000-030 More Info >	Price on Request
16	Bolt - Hex Head - M8 x 40 - Trimax Specification 301-208-403 More Info >	€1.16
17	Pulley 403-360-300 More Info >	€40.47
18	Bush 402-060-320 More Info >	€23.21
19	Idler Adjuster Assembly M 403-000-019 More Info >	Price on Request
20	Hook Assembly 403-000-031 More Info >	Price on Request
21	Pivot Washer 403-000-020 More Info >	Price on Request
22	Nut - Plain 307-212-010 More Info >	€0.96
24	Washer - Hardened 108-071-513 More Info >	€1.95
25	Cap Screw - Socket Head - M12 x 50 - Trimax Specification 303-212-505 More Info >	€2.31
27	Adjuster Rod Assembly 403-000-035 More Info >	Price on Request
28	Adjuster Rod Assembly 403-000-034 More Info >	Price on Request
29	Idler Adjuster Assembly Vs 403-000-018 More Info >	Price on Request
30	Idler Adjuster Assembly S 403-000-017 More Info >	Price on Request
31	Adjuster Rod Assembly 403-000-037 More Info >	Price on Request
32	Adjuster Rod Assembly 403-000-036 More Info >	Price on Request
33	Idler Adjuster Assembly L 403-000-016 More Info >	Price on Request
34	Idler Pulley 403-000-015 More Info >	Price on Request
35	Circlip/Snap Ring - Internal 204-820-371 More Info >	€1.61
36	Washer - Flat 108-071-413 More Info >	€1.40
37	Bearing - Trimax Specification - 401-021-900 More Info >	€11.85
38	Bolt - Hex Head - M12 x 45 - Trimax Specification 301-212-453 More Info >	€1.89
40	Inspection Cover 417-000-527 More Info >	Price on Request
41	Gearbox Mounting Plate 417-000-522 More Info >	Price on Request
42	Blanking Plug - M12 209-900-012 More Info >	€1.04
43	Inspection Cover 417-000-526 More Info >	Price on Request
44	Bush 402-000-015 More Info >	Price on Request
45	Bolt - Hex Head - M12 x 40 - Trimax Specification 301-212-403 More Info >	€1.77
